Removing Left Engine Mounting

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Drain refrigerant. → DRAINING AND FILLING REFRIGERANT
Disconnect air-conditioning line -arrow- at the compressor. → REMOVING ELECTRIC AIR-CONDITIONING COMPRESSOR

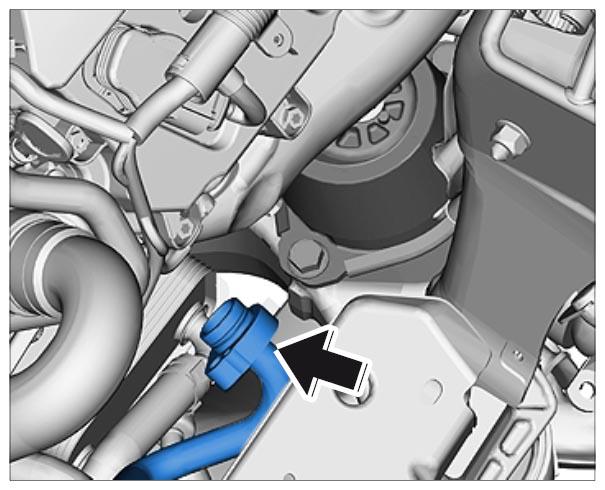

Fig 1: Locating Air-Conditioning Line (Compressor)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Raise the engine with the engine support.
Unscrew fastening screws -arrows- for the engine mounting. Remove engine mounting.

Fig 2: Locating Left Engine Mounting Point
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
