Removing Electric Air-Conditioning Compressor

→ Avoid contact with refrigerant.

→ Wear personal protective gear.

→ Observe the safety regulations for working on air-conditioned vehicles and dealing with refrigerant.

→ Observe the safety regulations for extraction and filling systems.

→ Observe the instructions for repairing air conditioning systems and storing spare parts.

1. Open the holding clamp on the low-pressure refrigerant line in the engine compartment.
   1. 1.1. Unscrew M6 fastening nut -1-  .
   2. 1.2. Open the holding clamp -2-  and bend it up carefully.

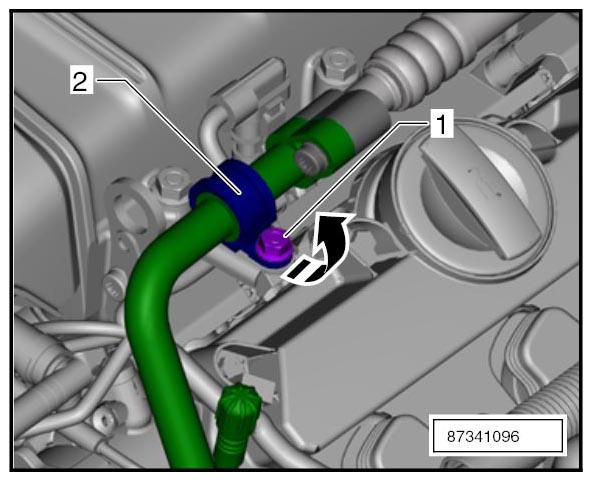

      Fig 1: Opening Holding Clamp On Low-Pressure Air-Conditioning Line

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   CAUTION: Escaping residual air

   • Risk of eye injuries

   → Wear protective goggles.

   NOTE: Opened refrigerant system for repairs.

   • Risk of moisture getting into the refrigerant system.
   • Risk of contaminating the refrigerant circuit.
   • Risk of saturation and irreparable damage to desiccator.
   • Irreparable damage to the desiccator can damage the compressor and evaporator.

   → After opening the refrigerant circuit, close off the lines/connections immediately using suitable stoppers.

   → The desiccator must be replaced if the air humidity is high and if the refrigerant circuit is left open for a long time.

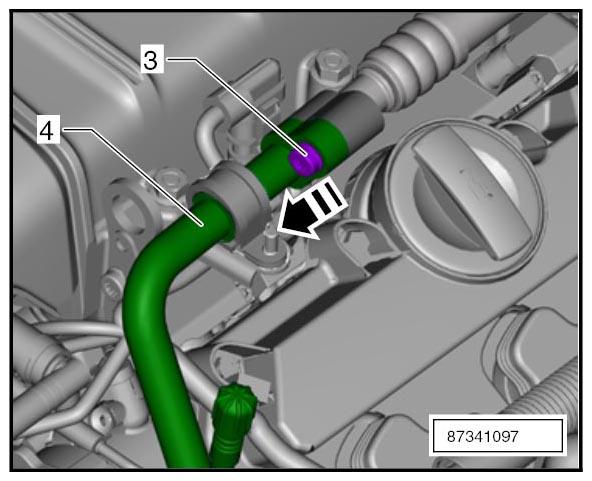

2. Unscrew M8 fastening screw -3-  on the low-pressure refrigerant line -4-  and pull off the line. Close off the lines immediately using suitable stoppers.
   Fig 2: Opening Low-Pressure Air-Conditioning Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Disconnect refrigerant line from the evaporator (Chiller) -1-  at the low-pressure refrigerant line -2-  .
   1. 3.1. Loosen fastening screw -3-  and disconnect refrigerant line from the evaporator -1-  .
   CAUTION: Escaping residual air

   • Risk of eye injuries

   → Wear protective goggles.

   NOTE: Opened refrigerant system for repairs.

   • Risk of moisture getting into the refrigerant system.
   • Risk of contaminating the refrigerant circuit.
   • Risk of saturation and irreparable damage to desiccator.
   • Irreparable damage to the desiccator can damage the compressor and evaporator.

   → After opening the refrigerant circuit, close off the lines/connections immediately using suitable stoppers.

   → The desiccator must be replaced if the air humidity is high and if the refrigerant circuit is left open for a long time.

   Close off the refrigerant line and air-conditioning compressor connection immediately using suitable stoppers.

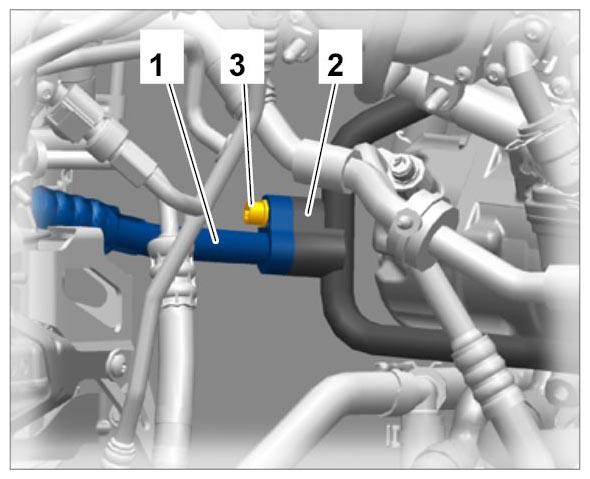

   Fig 3: Identifying Refrigerant Line From Evaporator On Low-Pressure Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Unscrew M8 fastening screw -5-  for the high-pressure refrigerant line -6-  on the electric air-conditioning compressor and pull off the refrigerant line.
   CAUTION: Escaping residual air

   • Risk of eye injuries

   → Wear protective goggles.

   NOTE: Opened refrigerant system for repairs.

   • Risk of moisture getting into the refrigerant system.
   • Risk of contaminating the refrigerant circuit.
   • Risk of saturation and irreparable damage to desiccator.
   • Irreparable damage to the desiccator can damage the compressor and evaporator.

   → After opening the refrigerant circuit, close off the lines/connections immediately using suitable stoppers.

   → The desiccator must be replaced if the air humidity is high and if the refrigerant circuit is left open for a long time.

   Close off the refrigerant line and air-conditioning compressor connection immediately using suitable stoppers.

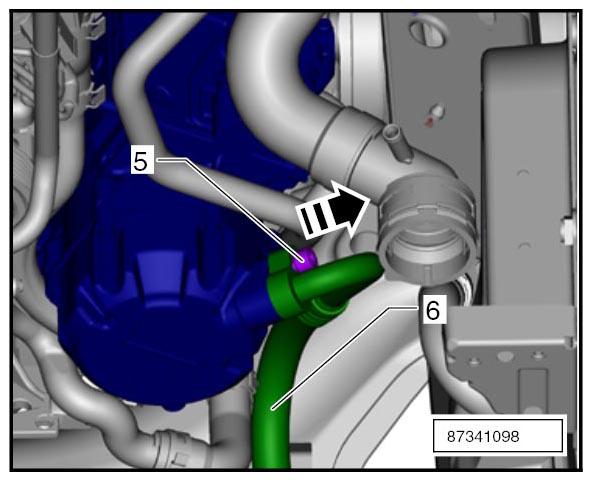

   Fig 4: Opening High-Pressure Air-Conditioning Line On Air-Conditioning Compressor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Release and disconnect electric plug connection at the air-conditioning compressor.

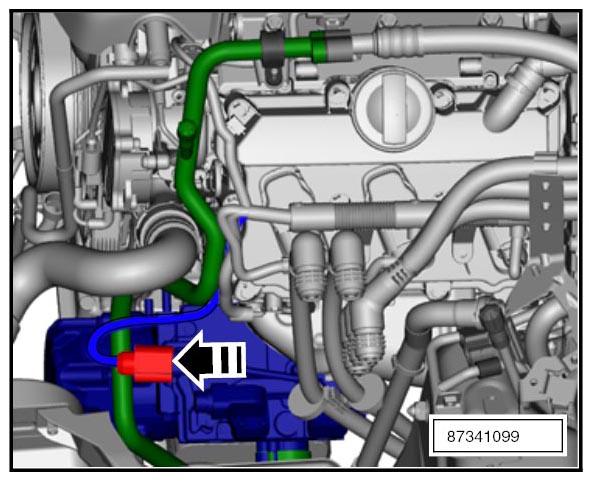

   Fig 5: Disconnecting Electric Plug Connection For Air-Conditioning Compressor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Unscrew the bottom M8 fastening screw -7-  used to secure the electric air-conditioning compressor to the engine at the rear  .

   Accessible via front left wheel housing.

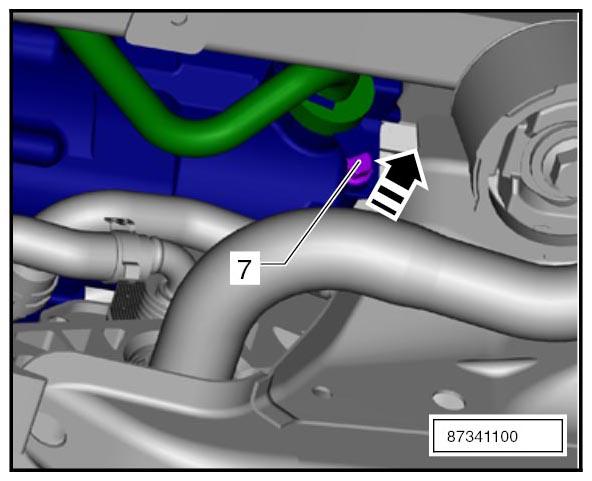

   Fig 6: Identifying Air-Conditioning Compressor To Engine Screws (Bottom Rear)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Unscrew the bottom M8 fastening screw -8-  used to secure the electric air-conditioning compressor to the engine at the front  .

   For easier access to the screw, press the hose -9-  down slightly with the tool.

   Accessible via front left wheel housing.

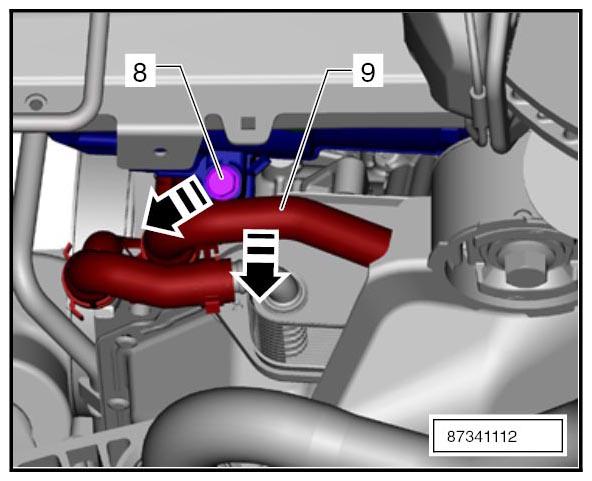

   Fig 7: Identifying Air-Conditioning Compressor To Engine Screws (Bottom Front)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

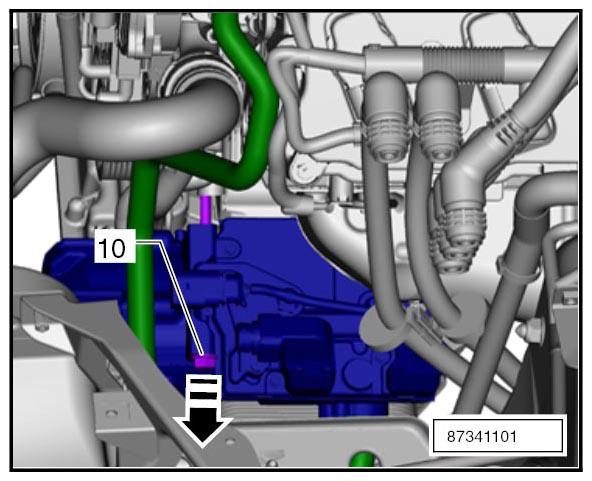

8. Unscrew the top M8 fastening screw -10-  used to secure the electric air-conditioning compressor to the engine.

   Accessible via top of engine compartment.

   Fig 8: Identifying Air-Conditioning Compressor To Engine Screws (Top)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Turn the air-conditioning compressor slightly to the right and guide it forward as far as the radiator.

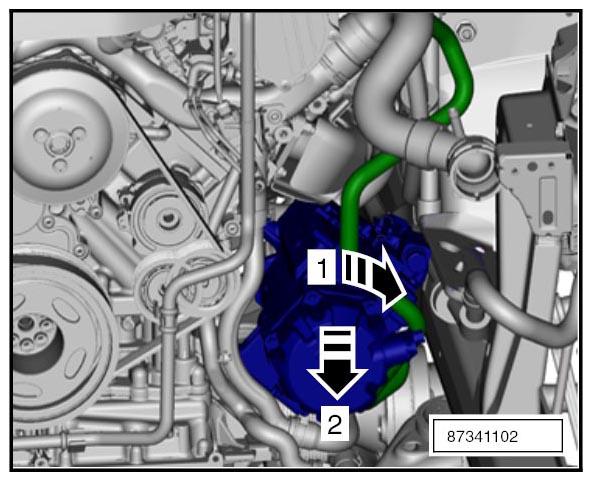

   Fig 9: Turning Air-Conditioning Compressor Towards Radiator

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Turn the air-conditioning compressor approx. 90 degrees to the right and remove it by pulling it up at the front side first.

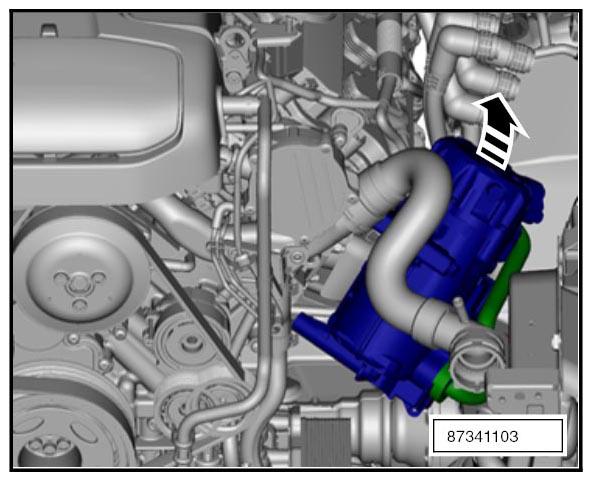

    Fig 10: Turning Air-Conditioning Compressor

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
