Subsequent Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install all glow plugs.
  2. Connect electric plug connection to the fuel pressure regulator -arrow-  .

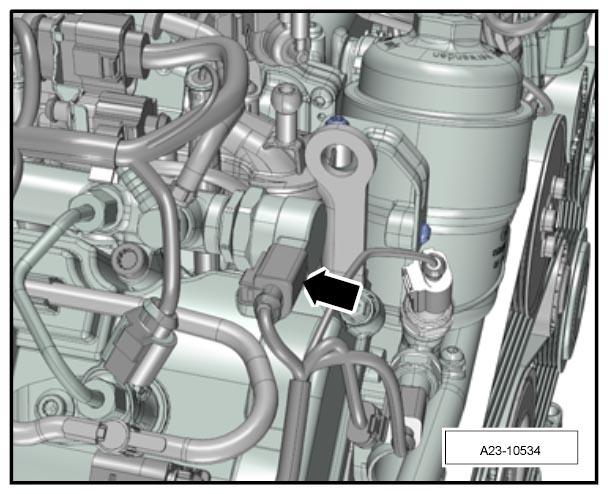

    Fig 1: Locating Pressure Regulator Electric Plug Connection
    G09931974Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Install engine cover. → Installing Engine Cover (Design Cover) 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER)
  4. Check the fault memory of the engine control unit using PIWIS Tester II 9818  and erase it because faults will have been stored when you disconnected the plug connections.
