Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove engine cover. → Removing Engine Cover (Design Cover) 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER)
Remove all glow plugs.
Position cylinder to be tested to ignition TDC and remove tool (dead center finder).
1. 3.1. The dead center finder or "cylinder pipe" consists of a glass tube (inspection glass) with a plunger -1- , hose and a rubber cone -2- .

  Fig 1: Identifying Dead Centre Finder Tool
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

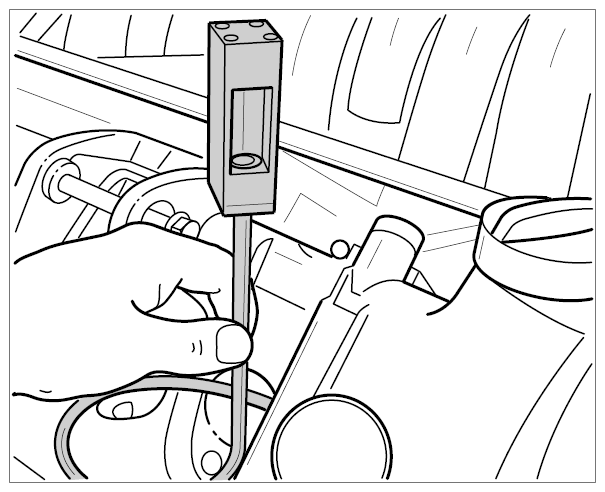

2. 3.2. The rubber cone is pressed onto the glow plug hole. The inspection glass is either held by a helper → Tool setup for dead center finder or is secured vertically in a clearly visible position with a magnet.

  Fig 2: Identifying Dead Centre Finder Tool
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. If the engine is now turned in direction of rotation on the crankshaft, the plunger in the inspection glass is pressed up in the compression cycle → Plunger up in order to go back down immediately upon reaching the TDC. The plunger in the inspection glass stays down in overlapping TDC → Plunger down .

  Fig 3: Identifying Plunger Up Position
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 4: Identifying Plunger Down Position
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
