Removing Engine Cover (Design Cover)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

For easier access to components, use the tool flexible-head socket wrench 9824 together with Torx Micro Bit 9824/2 if necessary .

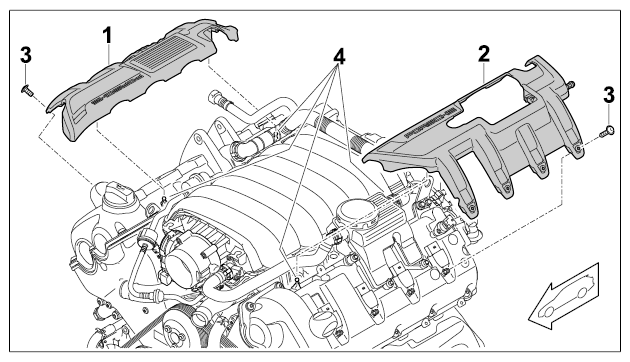

Design cover for cylinder bank 1 to 4
Design cover for cylinder bank 5 to 8
Screw for securing design cover to bar ignition module
Mounting points (ball joints)

Fig 1: Identifying Engine Cover Screws And Mounting

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove fastening screws for the engine cover at the bar ignition modules -3- .
Lift up the torque support on the valve cover. Pull engine cover upwards and off the mounting points.
Remove design cover on throttle valve.
1. 3.1. Pull cover off the throttle valve → Design cover on throttle valve .

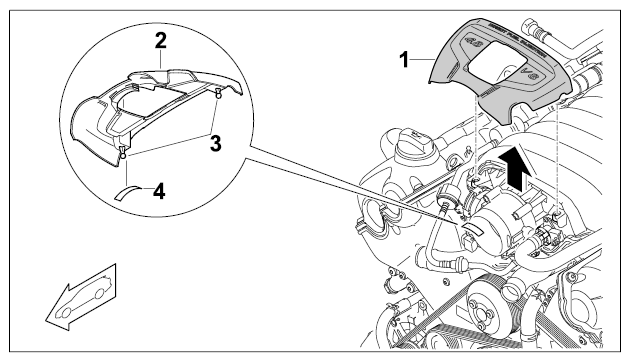

  1. Design cover on throttle valve (view from above)
  2. Design cover on throttle valve (view from below)
  3. Ball joints under design cover
  4. Bonding area, Velcro fastener
Fig 2: Removing Throttle Valve Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
