Removing Engine From Transmission

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

When removing the engine, ensure that the torque converter in the automatic transmission does not slip out of the transmission .
Keep the torque converter pressed in position using a screwdriver when removing the engine .

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

Information

The pictures shown in this document may differ from the original .

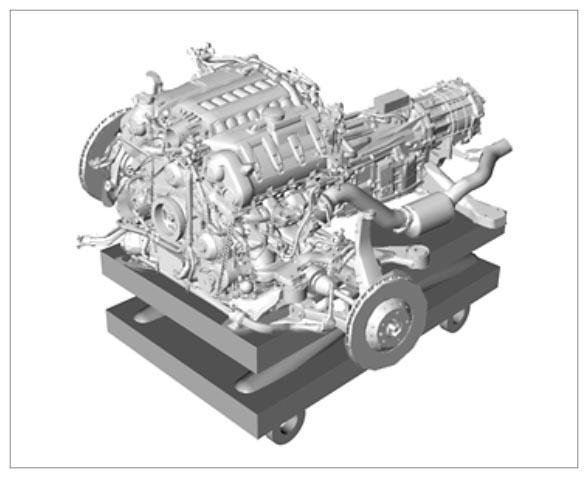

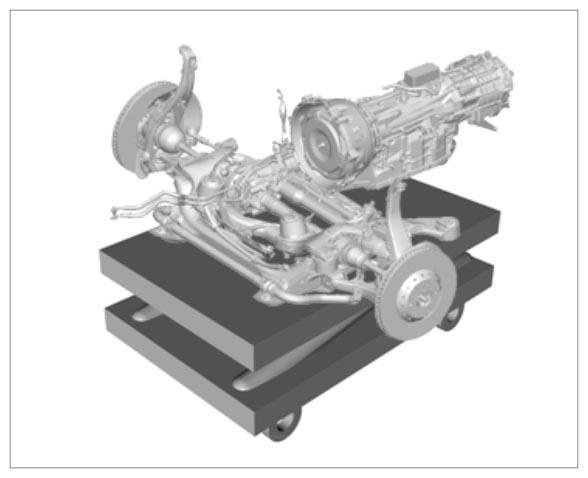

Fig 1: Identifying Engine/Transmission Assembly
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

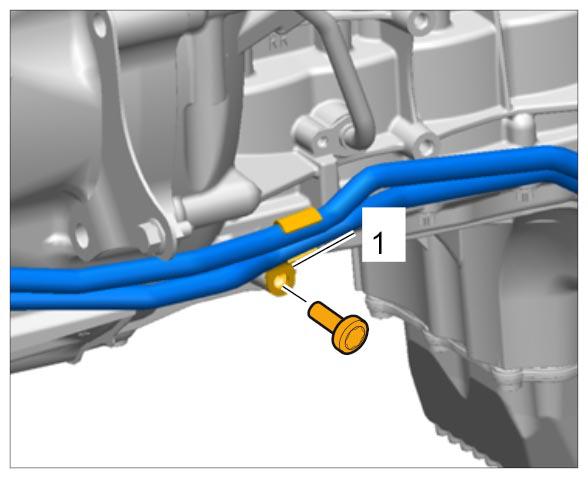

Detach holder -1- for ATF lines at the front of the engine.

Fig 2: Identifying Engine ATF Lines Holder - Front
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detach holder -1- for ATF lines at the rear of the engine.

Fig 3: Identifying Engine ATF Lines Holder - Rear
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

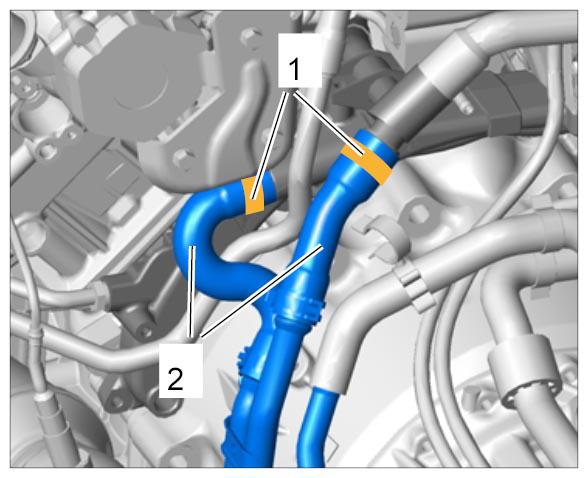

Loosen clamps -1- for the coolant hoses -2- on the left of the transmission.
Pull off coolant hoses.

Fig 4: Identifying Coolant Hoses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

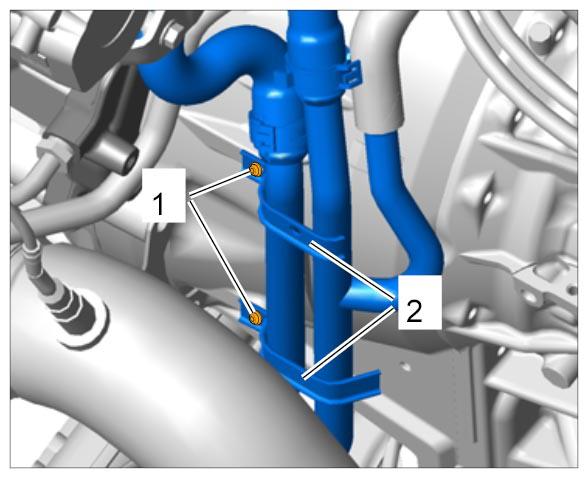

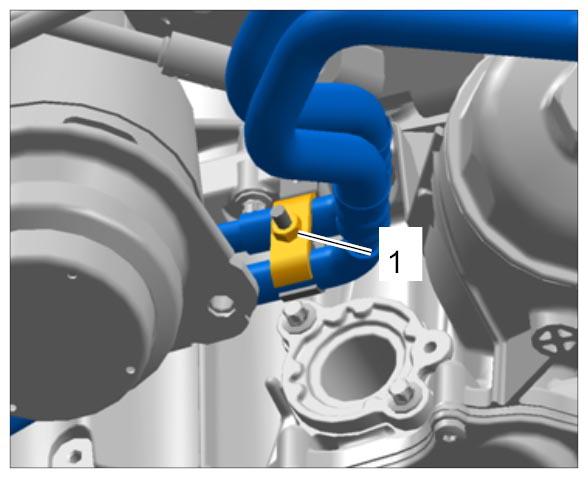

Unscrew fastening screws -1- for coolant line holder -2- , bend holder to one side.

Fig 5: Identifying Coolant Lines Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

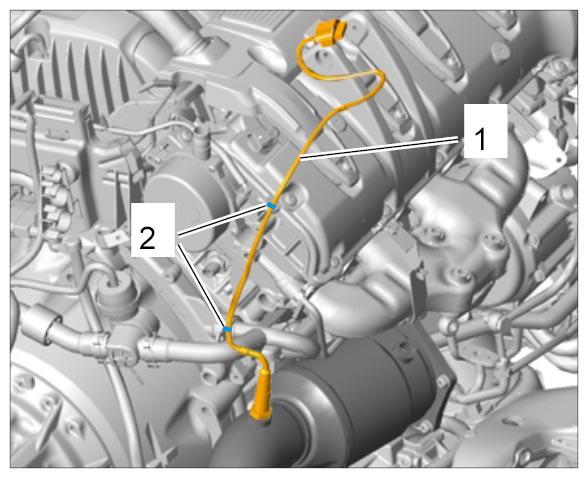

Unclip the wire harness -1- for the oxygen sensors on the left cylinder head cover out of the holder -2- .

Fig 6: Identifying Left Oxygen Sensor Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip wire harness -1- from oxygen sensors on the right from the holders -2- .

Fig 7: Identifying Right Oxygen Sensor Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Spray the fastening screws on the primary catalytic converter with penetrating oil and leave to take effect.

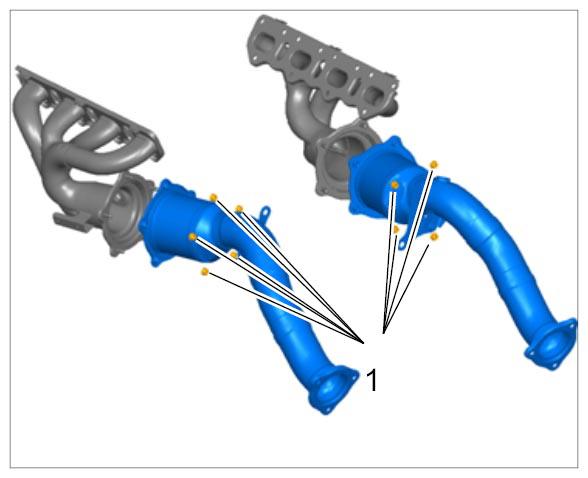

Loosen the fastening screws -1- on the catalytic converter.

Fig 8: Identifying Primary Catalytic Converters
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

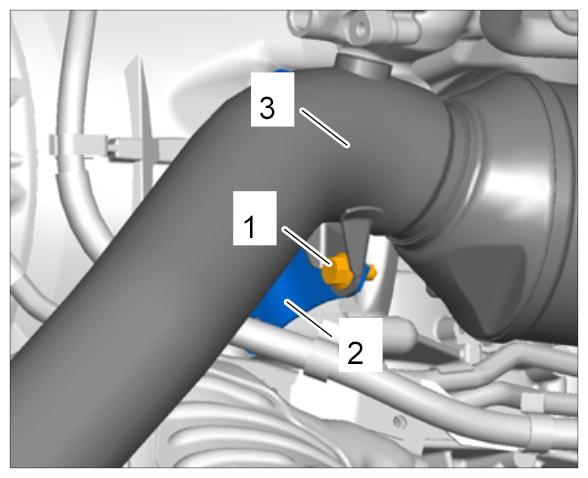

Loosen the fastening screws -1- for the holders -2- of the left and right primary catalytic converters -3- .

Fig 9: Identifying Primary Catalytic Converter Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

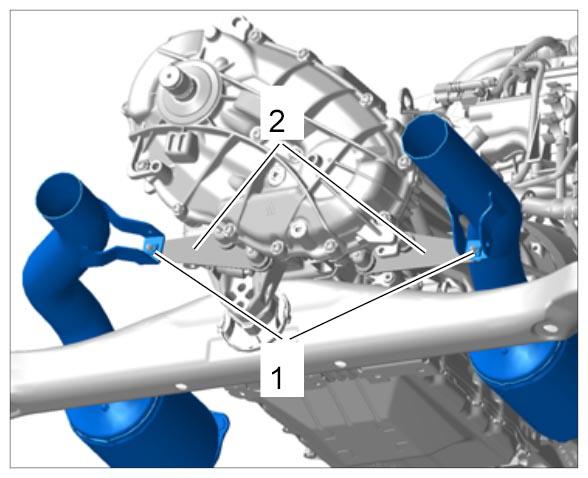

Loosen the fastening screws -1- on the left and right for the rear holders -2- of the catalytic converters on the transmission.

Fig 10: Identifying Catalytic Converters Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the catalytic converters and set them aside.
Remove the front cardan shaft. → REMOVING FRONT CARDAN SHAFT

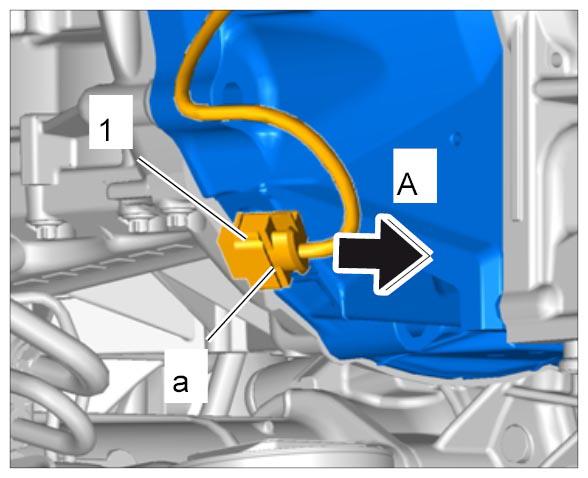

Release the electric plug connection -1- of the crankshaft pulse sender at the bottom of the transmission -a- and pull it off -A- .
Loosen the tie-wrap at the coolant line holder on the left if necessary.

Fig 11: Removing Crankshaft Pulse Sender Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

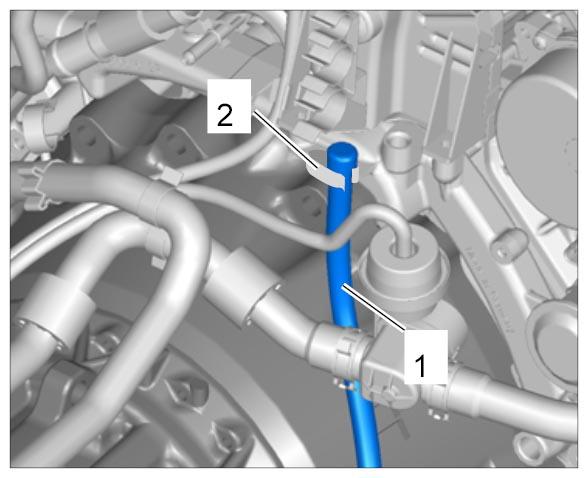

Unclip the hose -1- for the transmission vent from the holder -2- .

Fig 12: Identifying Transmission Vent Hose
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

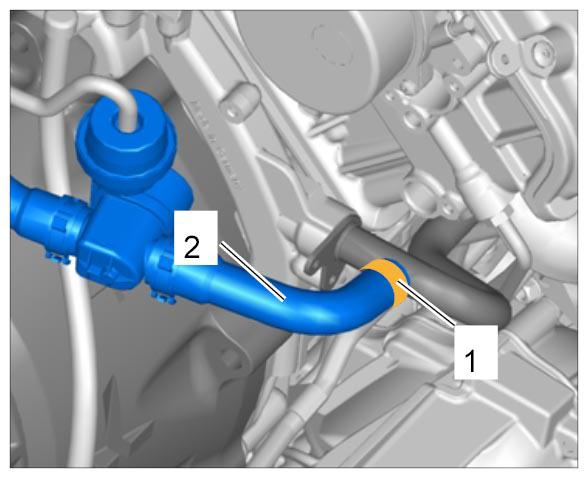

Loosen the clamp -1- for the coolant hose -2- to the ATF heat exchanger on the right and pull off the hose from the connection piece.

Fig 13: Identifying Right Coolant Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

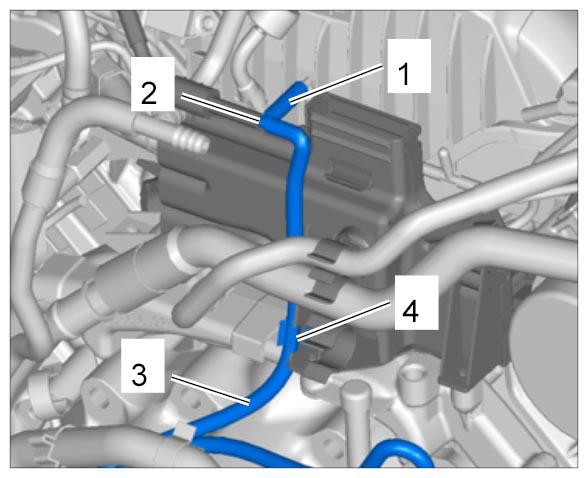

Pull off vacuum hose -1- for the vacuum supply at the T-piece -2- .
Unclip the vacuum line -3- from the holder -4- .

Fig 14: Identifying Vacuum Supply Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

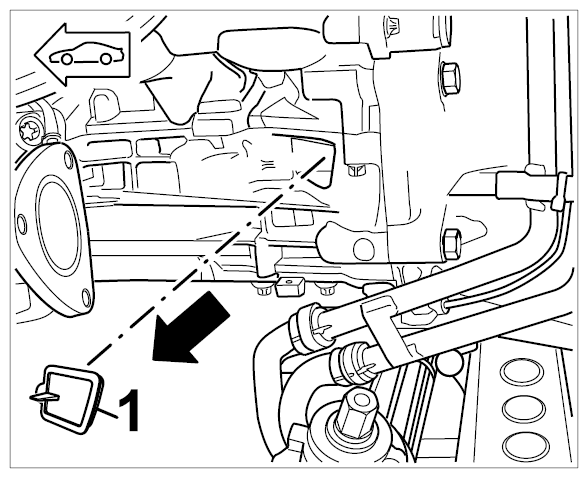

Remove plug -1- used to seal the converter assembly opening.

Fig 15: Removing Converter Assembly Seal Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove converter screws. To do this, read and follow the next steps. → REMOVING TORQUE CONVERTER
Turn crankshaft clockwise using special tool socket-wrench insert 97140 .

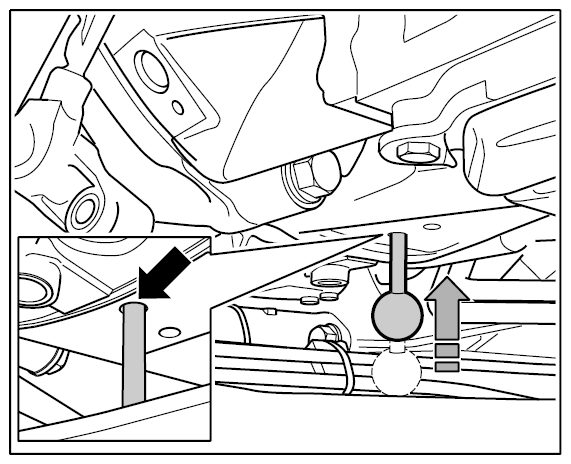

Insert special tool locating pin 95950 into the front bore on the converter bell housing -arrow- and hold upwards with slight pressure until it engages when the crankshaft is turned.

Fig 16: Locating Converter Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

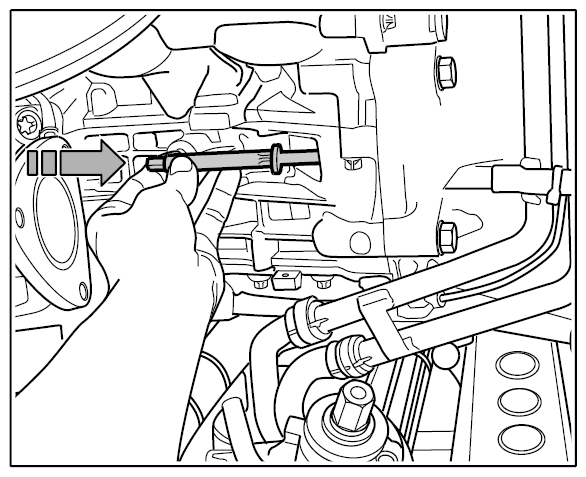

Position special tool bit insert 96880 on the converter screw through the opening in the engine block and connect bit snap-on head and special tool insert 96870 one after the other.

Fig 17: Opening Converter Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove special tool locating pins 95950 before loosening the converter screws.
Unscrew converter screw and twist out.
Complete the steps described above for the other five screws.

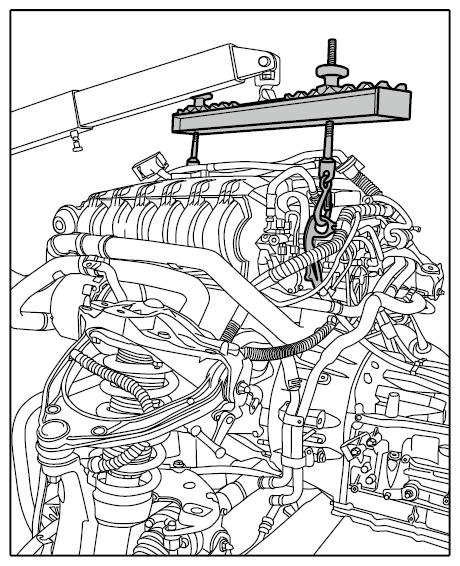

Secure engine to the lifting tackle and to the workshop crane
→ Securing engine to workshop crane .

Fig 18: Securing Engine Using Workshop Crane
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

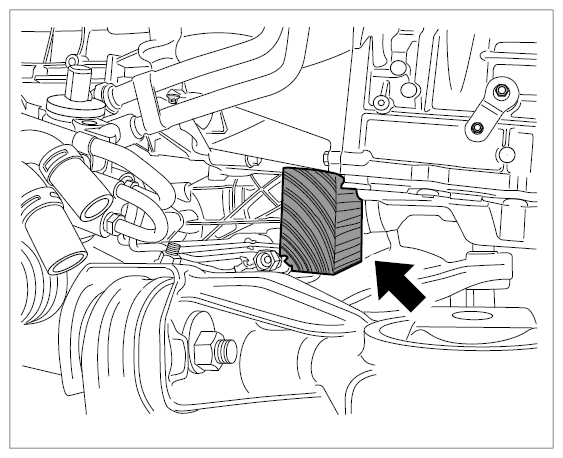

Secure the transmission with a wooden block to prevent it from tipping over.

Fig 19: Locating Wooden Block
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift the engine/transmission unit until the four screws on the two engine mounts can be removed.
→ Removing Engine Mounting 103519 REMOVING AND INSTALLING ENGINE MOUNT
Slowly lower the engine/transmission unit onto the wooden block. The engine is still suspended securely on the workshop crane.

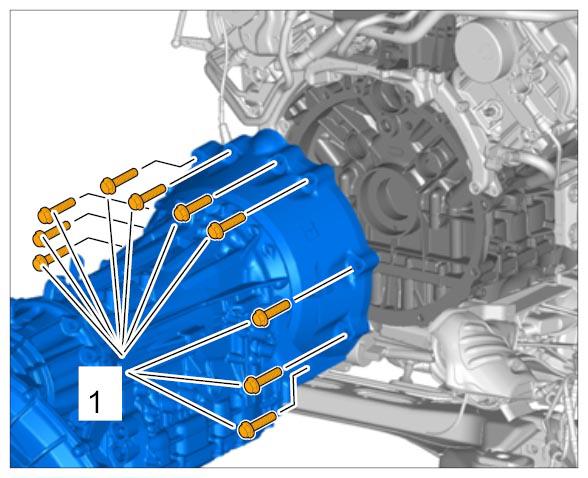

Loosen the fastening screws -1- for the transmission to the engine.

Fig 20: Identifying Engine Transmission Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove engine from transmission. Press the torque converter off the drive plate with a screwdriver if necessary.
Remove the engine from the transmission at the lifting crane.

Fig 21: Identifying Engine Transmission Lifting Platform
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
