Removing Torque Converter

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

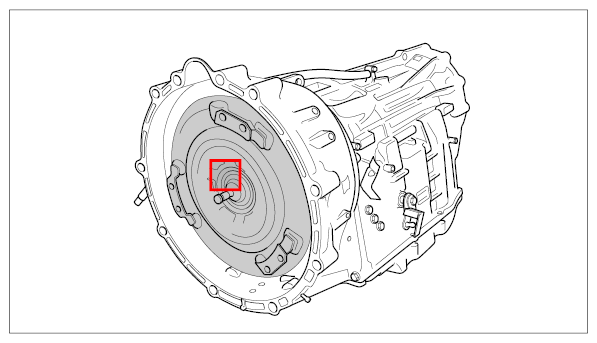

Fig 1: Identifying Torque Converter

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

Place oil collection pan under the converter bell housing.
Information
- ATF can leak out when removing the torque converter .
- Place torque converter with transmission side pointing upwards .
Remove torque converter from the transmission shaft.
