Removing Automatic Transmission

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

When removing the engine, ensure that the torque converter in the automatic transmission does not slip out of the transmission .
Keep the torque converter pressed in position using a screwdriver when removing the engine .

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

Information

The pictures shown in this document may differ from the original .

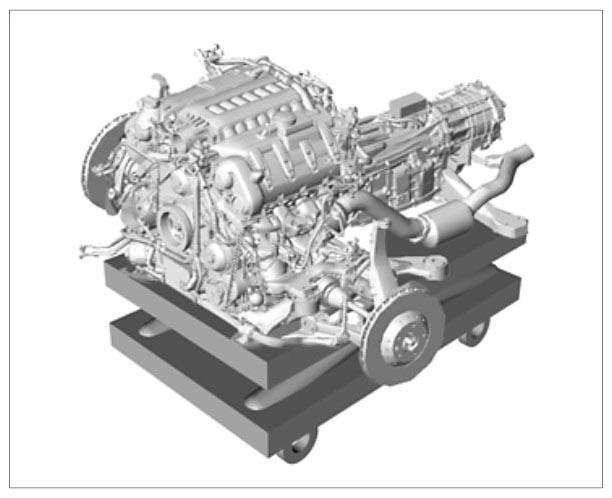

Fig 1: Lifting Engine/Transmission Assembly
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

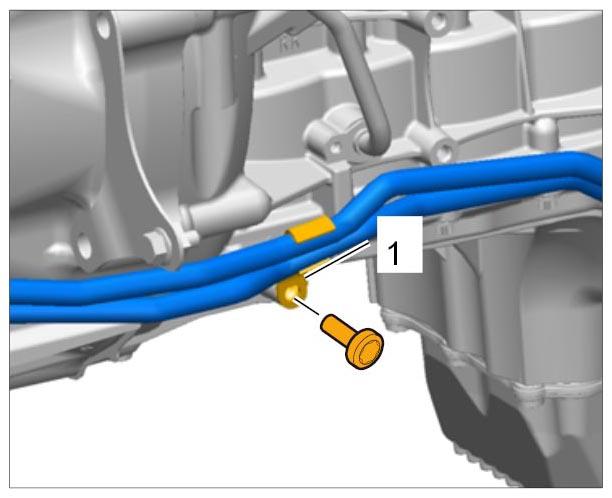

Detach holder -1- for ATF lines at the rear of the engine.

Fig 2: Identifying Holder For ATF Lines At Rear Of Engine
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

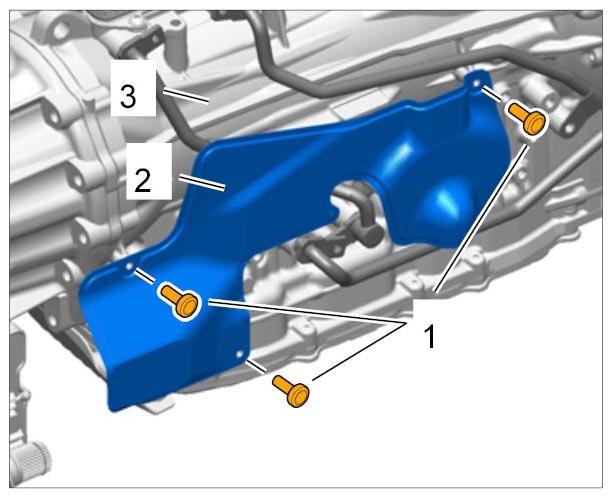

Loosen fastening screws -1- for the heat shield -2- at the automatic transmission -3- .

Fig 3: Identifying Heat Shield For Automatic Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

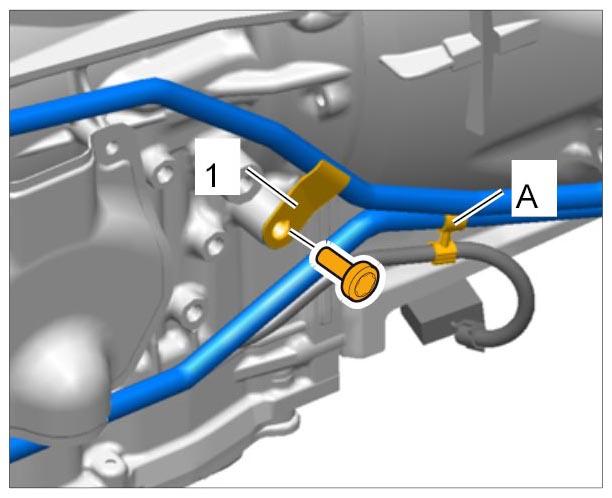

Detach holder -1- for ATF lines at the front of the transmission.

Fig 4: Identifying Holder For ATF Lines At Front Of Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip ATF lines -A- .
Place a suitable container underneath to catch emerging ATF .
Loosen the fastening screw -1- for the ATF lines -2- at the bottom of the transmission -3- .

Fig 5: Detaching ATF Lines At Bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove rear ATF line.
Close off the ATF lines and transmission bores using suitable stoppers.
Place a suitable container underneath to catch emerging ATF .

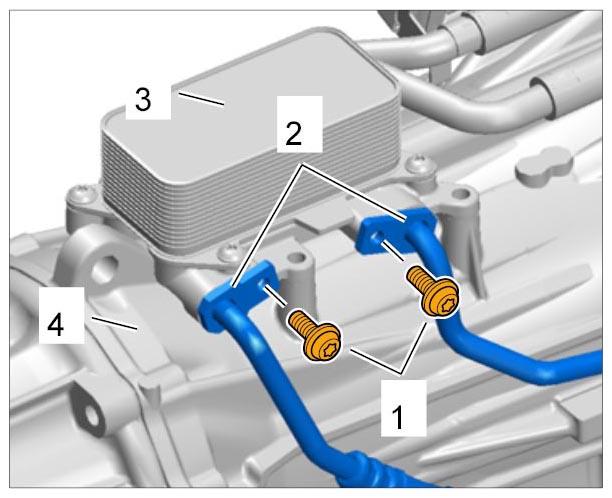

Loosen the front fastening screw -1- for the ATF lines -2- on the ATF heat exchanger -3- and pull it out.

Close off the ATF lines and bores in the heat exchanger using suitable stoppers.

Fig 6: Identifying ATF Lines At Top
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

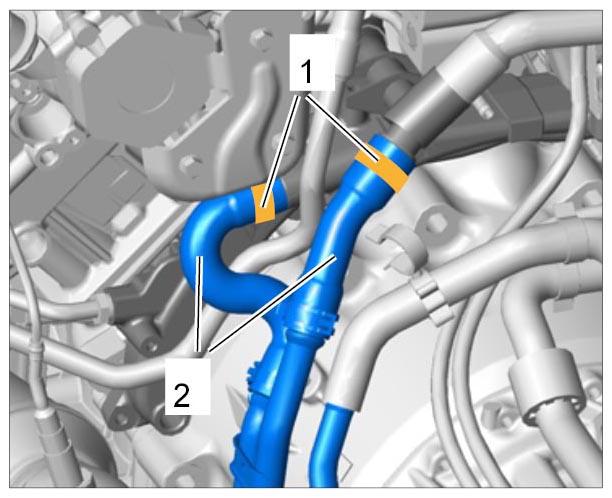

Loosen clamps -1- for the coolant hoses -2- on the left of the transmission.
Pull off coolant hoses.

Fig 7: Identifying Coolant Hoses On Left
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

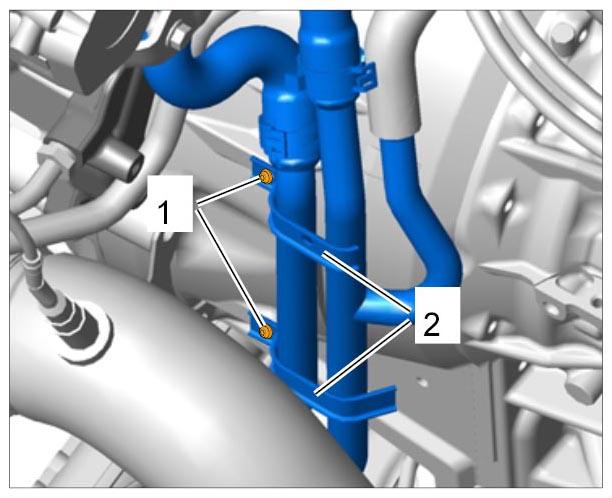

Unscrew fastening screws -1- for the coolant line holder -2- , bend holder to one side.

Fig 8: Identifying Holder For Coolant Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

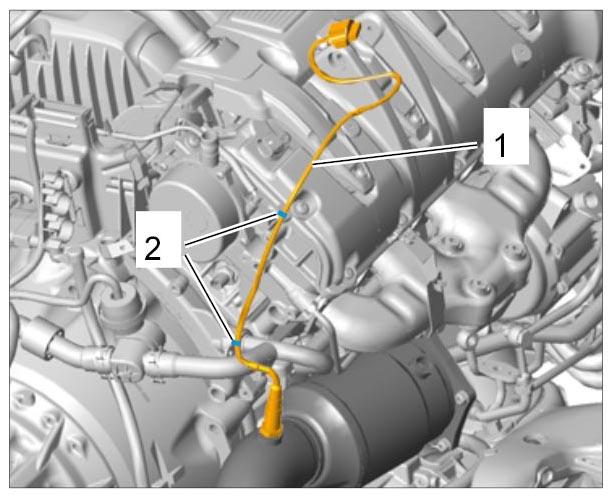

Unclip the wire harness -1- for the oxygen sensors on the left cylinder head cover out of the holder -2- .

Fig 9: Identifying Wire Harness For Left Oxygen Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

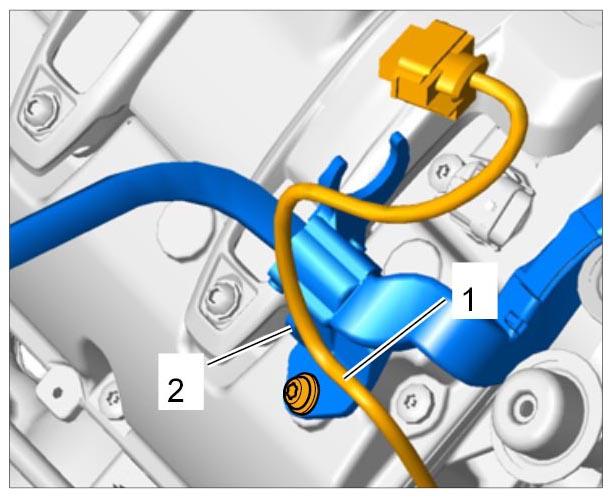

Unclip the wire harness -1- for the oxygen sensors on the right out of the holders -2- .

Fig 10: Identifying Wire Harness For Right Oxygen Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

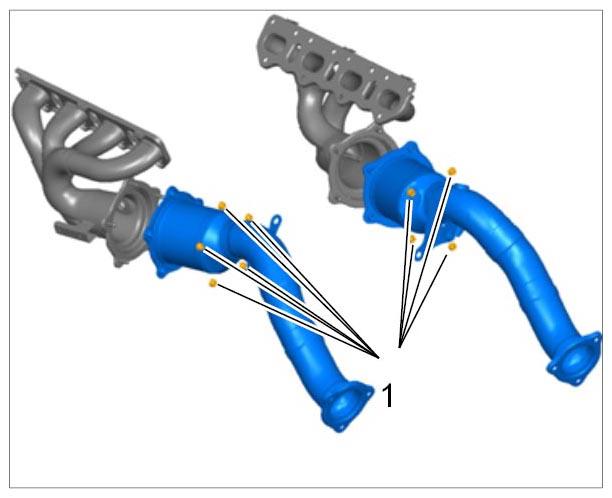

Spray the fastening screws on the primary catalytic converter with penetrating oil and leave to take effect.
Loosen the fastening screws -1- on the catalytic converter.

Fig 11: Identifying Primary Catalytic Converters
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

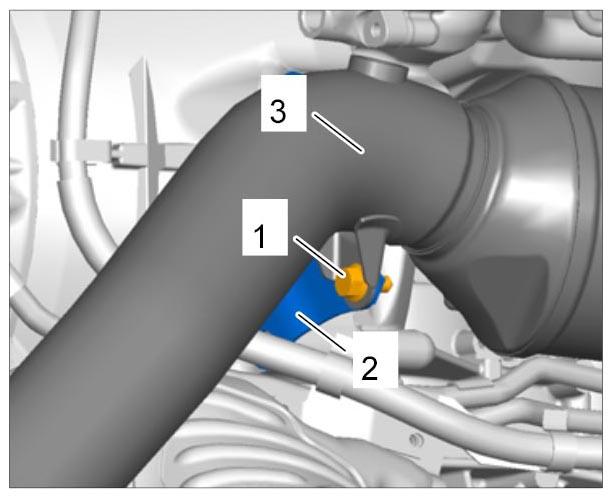

Loosen the fastening screws -1- for the holders -2- of the left and right primary catalytic converters -3- .

Fig 12: Identifying Holder For Primary Catalytic Converter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

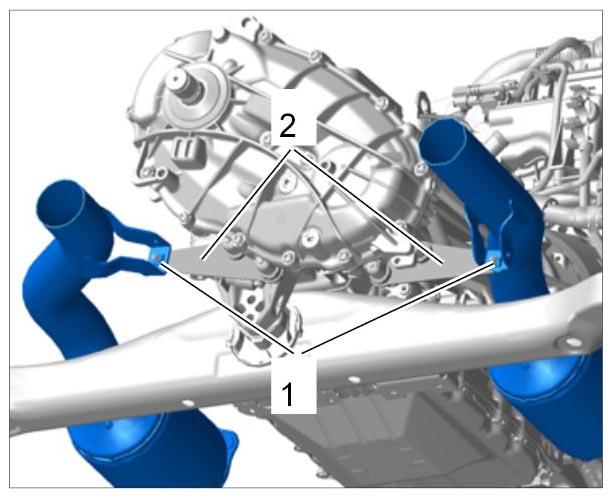

Loosen the fastening screws -1- on the left and right for the rear holders -2- of the catalytic converters on the transmission.

Fig 13: Identifying Holder For Catalytic Converters
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the catalytic converters and set them aside.
Remove the front cardan shaft. → REMOVING FRONT CARDAN SHAFT - section on "Removing"

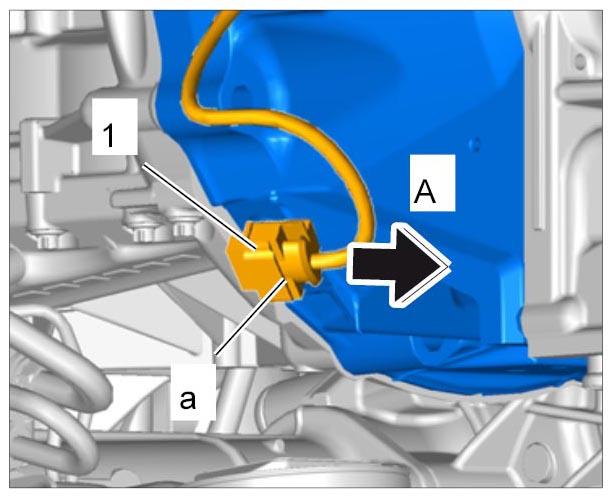

Release the electric plug connection -1- of the crankshaft pulse sender at the bottom of the transmission -a- and pull it off -A- .
Loosen the tie-wrap at the coolant line holder on the left if necessary.

Fig 14: Removing Plug Connection For Crankshaft Pulse Sender
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

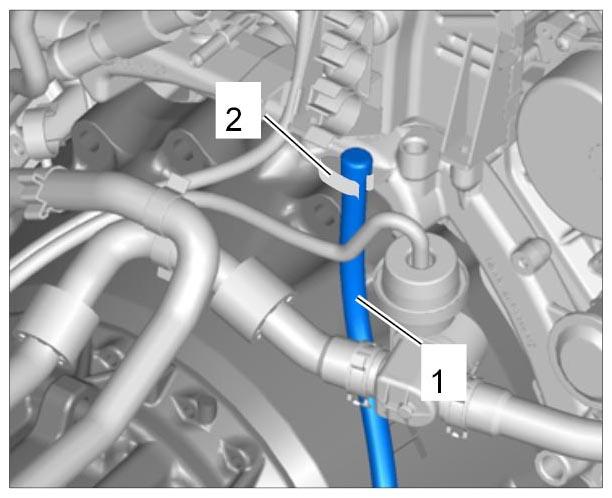

Unclip the hose -1- for the transmission vent from the holder -2- .

Fig 15: Identifying Transmission Vent Hose
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

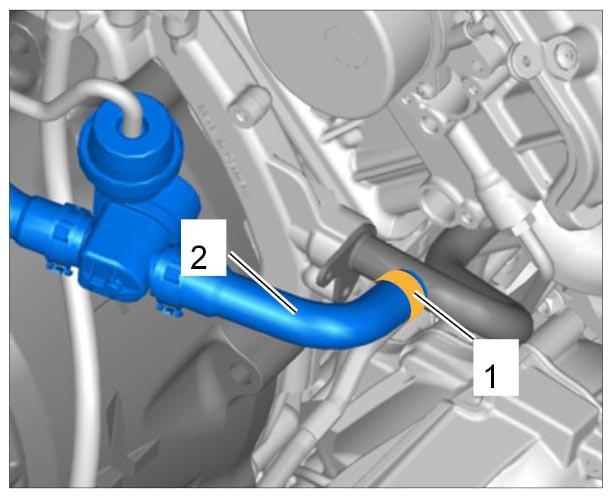

Loosen the clamp -1- for the coolant hose -2- to the ATF heat exchanger on the right and pull off the hose from the connection piece.

Fig 16: Identifying Right Coolant Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

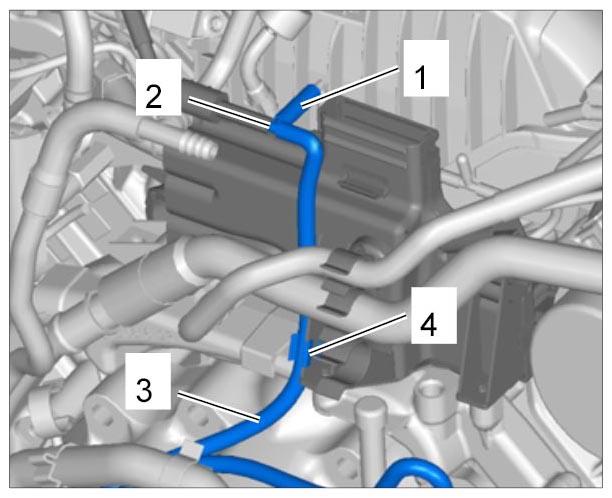

Pull off vacuum hose -1- for the vacuum supply at the T-piece -2- .
Unclip the vacuum line -3- from the holder -4- .

Fig 17: Identifying Vacuum Supply
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

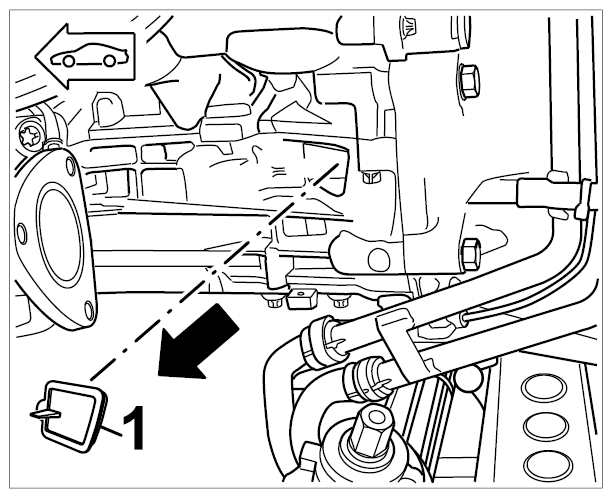

Remove plug -1- used to seal the converter assembly opening.

Fig 18: Removing Plug Used To Seal Converter Assembly Opening
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove converter screws. Observe the following steps for this purpose. → REMOVING TORQUE CONVERTER - section on "Removing"
Turn crankshaft clockwise using special tool Socket-Wrench Insert 97140 .

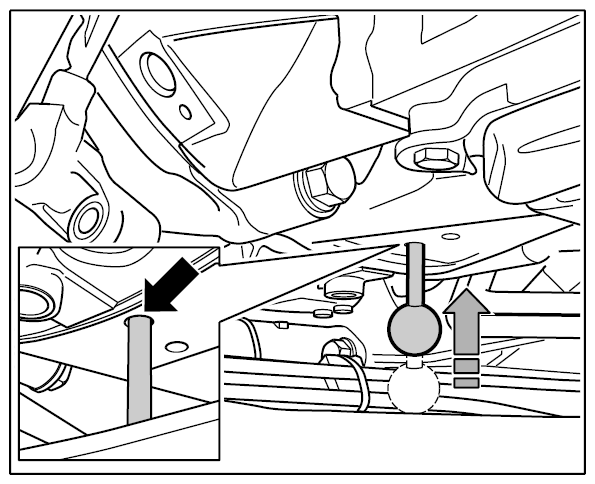

Insert special tool Locating Pins 95950 into the front bore on the converter bell housing -arrow- and hold upwards with light pressure until it engages when the crankshaft is turned.

Fig 19: Disconnecting Converter Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

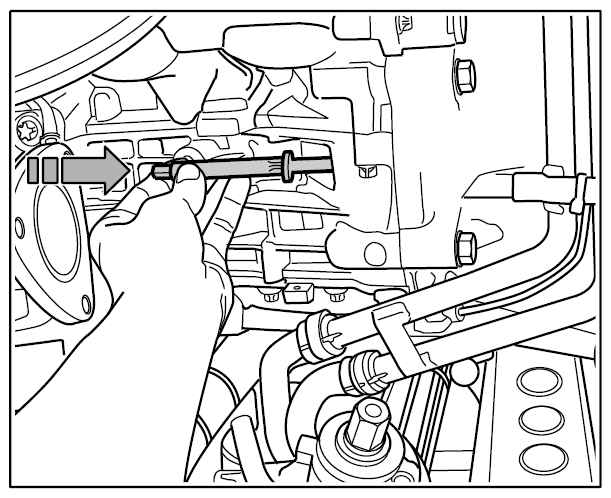

Position special tool bit insert 96880 on converter screw through opening in the engine block, connect bit snap-on head and special tool Insert 96870 one after the other.

Fig 20: Opening For Converter Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove special tool locating pins 95950 before loosening the converter screws.
Unscrew converter screw and twist out.
Complete the steps described above for the other five screws.

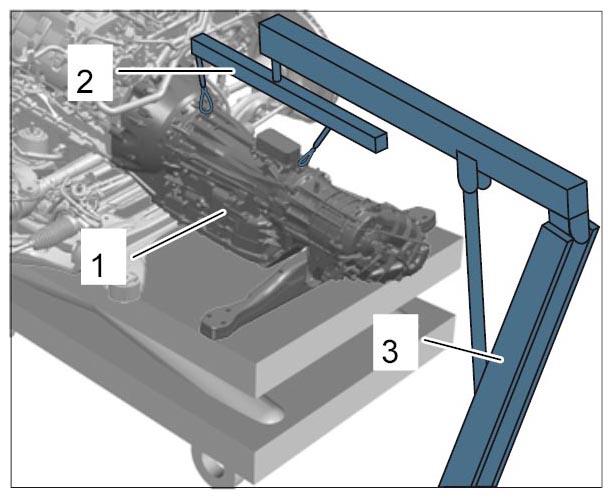

Attach the transmission -1- using Suspension Device 2024 A -2- to the workshop crane -3- .

Fig 21: Suspending Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

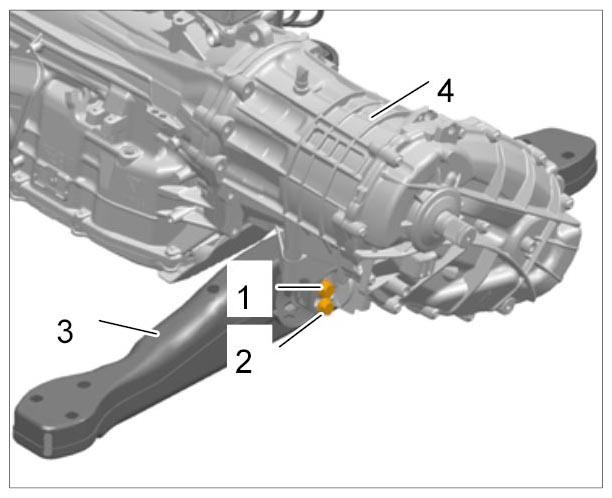

Raise the transmission -4- by a few centimeters and remove the fastening screws -1, 2- from the transmission support -3- .

Fig 22: Identifying Rear Transmission Cross Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

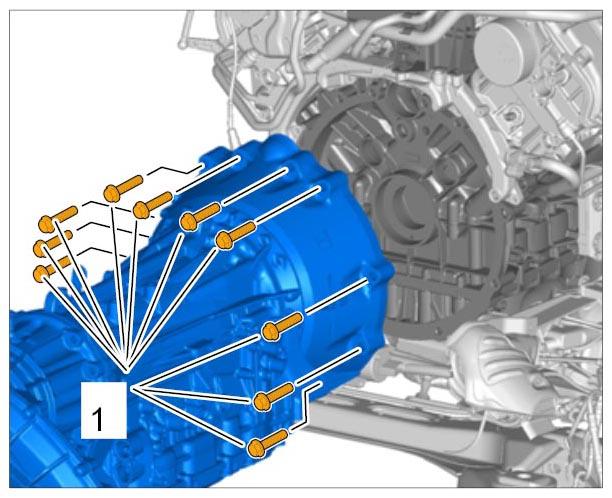

Loosen the fastening screws -1- for the transmission to the engine.

Fig 23: Loosening Transmission From Engine
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove transmission from engine. Press the torque converter off the drive plate with a screwdriver if necessary.
