Removing Selector Lever Cable

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the tab washer -1-  off the selector lever cable -A-  .

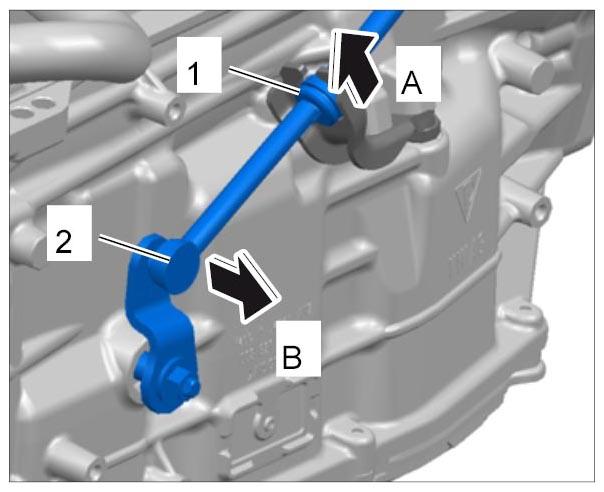

    Fig 1: Releasing Selector Lever Cable From Transmission
    G09934462Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull the selector lever cable -2-  off the ball joint using Universal Disassembly Tool Nr. 21  (-B-  ).
  3. Remove selector support. → REMOVING SELECTOR SUPPORT  - section on "Removing"
  4. Carefully pull the selector lever cable -1-  together with the rubber sleeve -2-  out of the center tunnel -A-  .

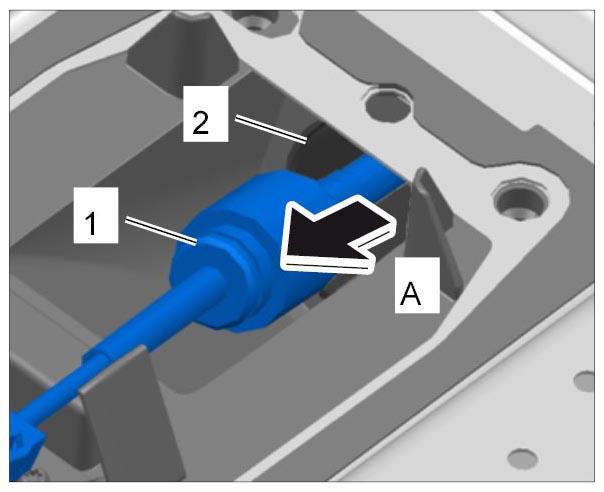

    Fig 2: Removing Rubber Sleeve From Selector Lever Cable
    G09934463Courtesy of PORSCHE CARS NORTH AMERICA, INC.
