Removing Selector Support

Information

Position N is marked by an arrow on the selector support.

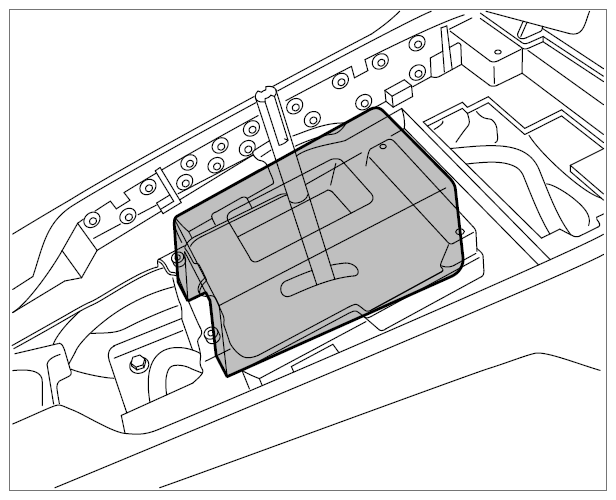

1. Remove insulating material on selector support. → Insulating material on selector support
   Fig 1: Insulating Material On Selector Support

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

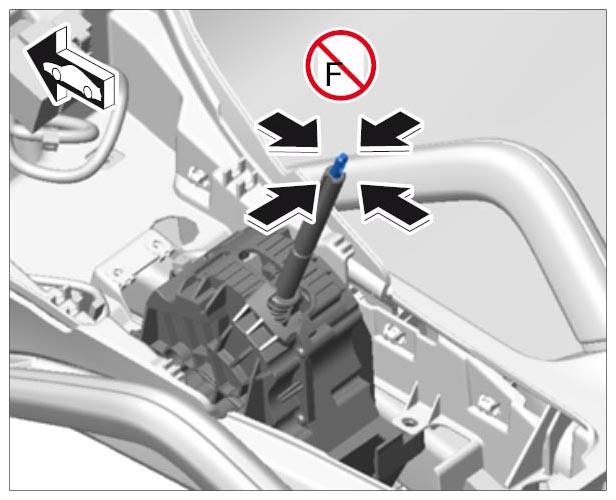

   Do not apply lateral forces to the pull rod as it could break off.

   Fig 2: Caution For Using Force On Pull Rod

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

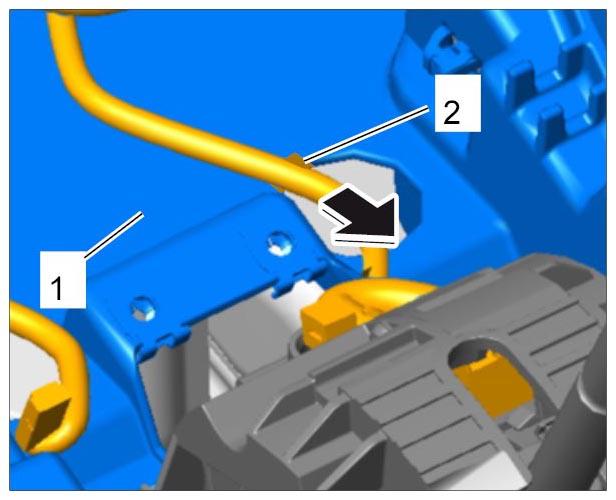

2. Unclip fixing clip -2-  on wire harness for selector support from the center console -1-  (-arrow-  ).
   Fig 3: Fixing Clip On Wire Harness For Selector Support

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

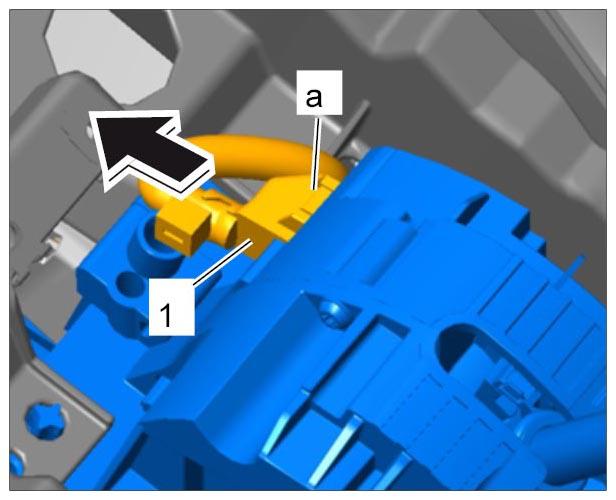

3. Release electric plug connection -1-  for the selector support -a  and pull it off -arrow-  .
   Fig 4: Removing Plug Connection On Selector Support

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

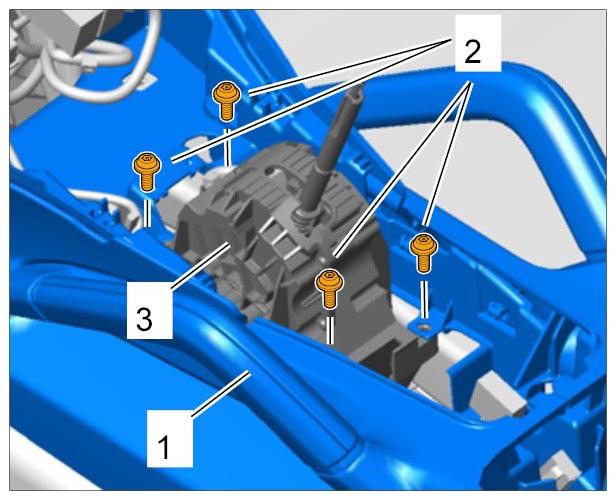

4. Unscrew fastening screws -2-  for the selector support -3-  from the center console -1-  .
   Fig 5: Identifying Screws On Selector Support

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Pull the selector support as far as possible out of the center console.

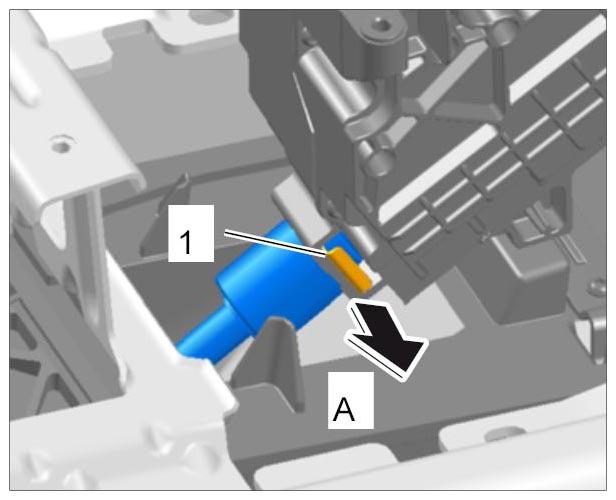

6. Remove the clamp -1-  on the selector lever cable connection -A-  .
   Fig 6: Removing Fastening Clamp

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   NOTE: The fastening screw for the selector lever cable must not be loosened by more than one turn.

   • Otherwise, the screw will fall into the selector support and the selector support will have to be replaced.

   → The fastening screw for the selector lever cable must not be loosened by more than one turn.

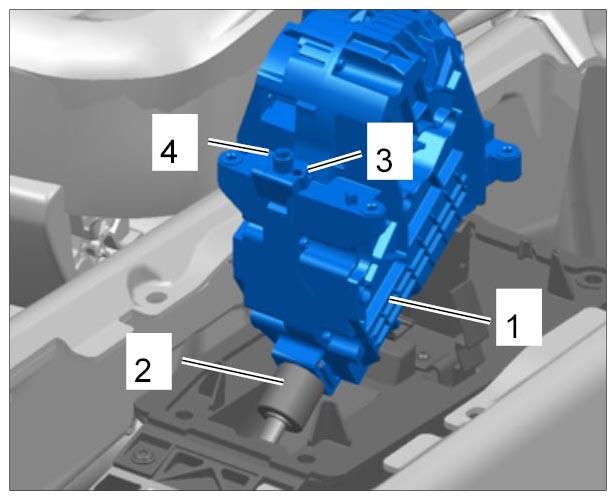

7. Loosen the fastening screw in opening -3-  next to the emergency release -4-  for connecting the selector lever cable -2-  and selector support -1-  by 180° using a 5-mm Allen key, approx. 15 cm long  .
   Fig 7: Removing Selector Lever Cable

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Remove selector support.
