Installing Selector Lever Cable

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Check that the rubber sleeve for the selector lever cable is seated correctly to prevent noises and stop water from leaking in. Spray the rubber sleeve with soapy water to make fitting easier.

Insert rubber sleeve -2- for the selector lever cable -1- into the center tunnel -A- .

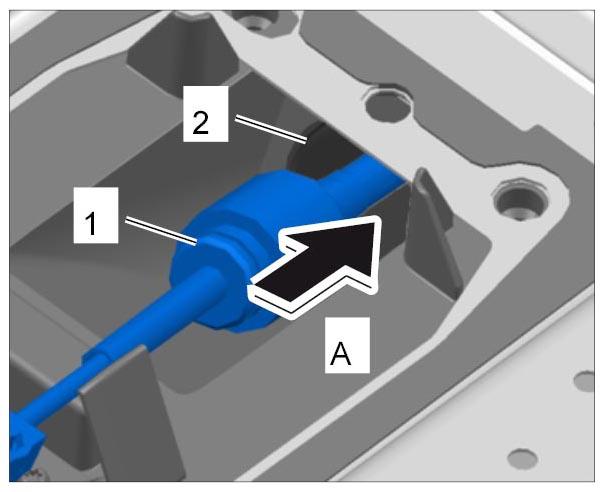

Fig 1: Fitting Rubber Sleeve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install selector support. → INSTALLING SELECTOR SUPPORT - section on "Installing"
Insert tab washer -1- (-A- ).

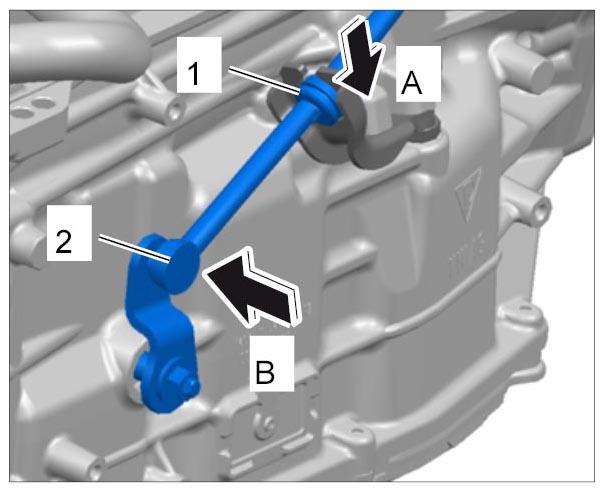

Fig 2: Securing Selector Lever Cable On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the selector lever cable -2- onto the ball joint -B- .
Shift the transmission to position N -A- .

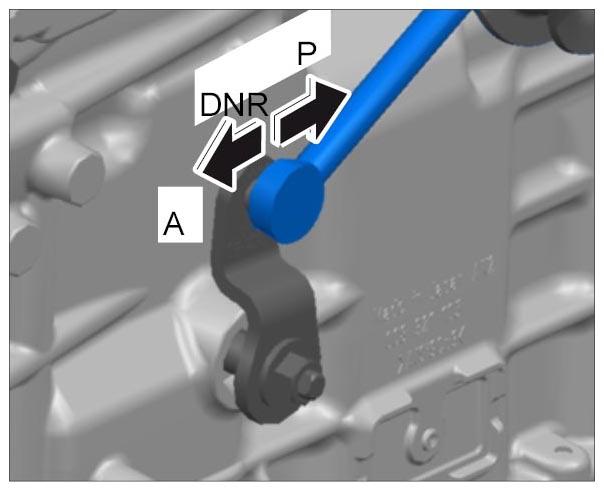

Fig 3: Shifting Transmission To Position N
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
