Installing Selector Support

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Position N is marked by an arrow on the selector support.

Information

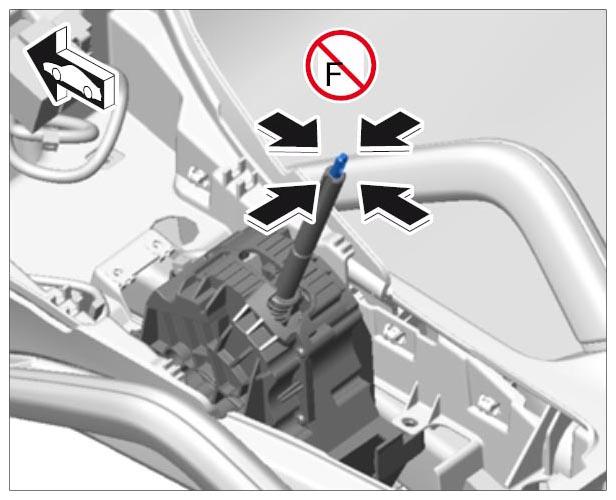

Do not apply lateral forces to the pull rod as it could break off.

Fig 1: Caution For Using Force On Pull Rod

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide the selector lever cable into the selector support.

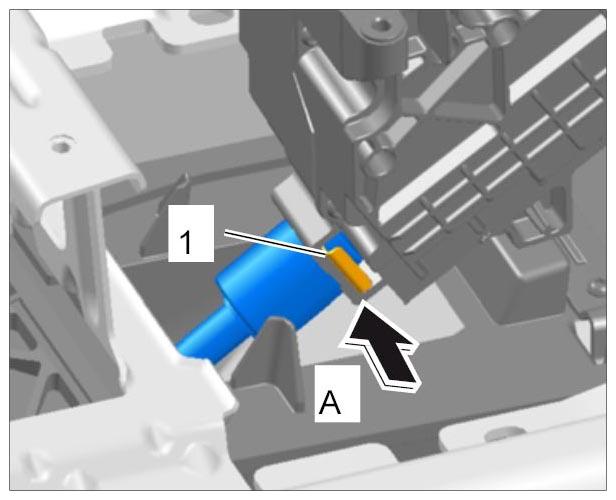

Lock the clamp -1- on the selector lever cable connection -A- .

Fig 2: Installing Selector Lever Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

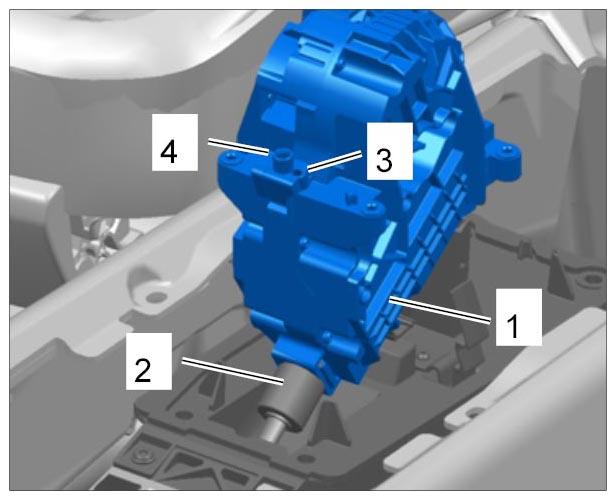

Tighten the fastening screw in the small opening -3- (using a 5- mm Allen key, approx. 15 cm long) next to the emergency release -4- for the selector lever cable -2- on the selector support -1- to → Tightening Torque: 10 Nm (7.5 ft. lb.) .

Fig 3: Securing Selector Lever Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

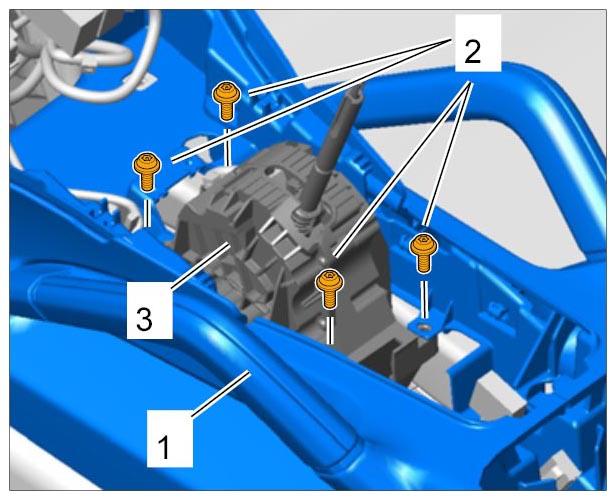

Tighten fastening screws -2- for the selector support -3- in the center console -1- to → Tightening Torque: 10 Nm (7.5 ft. lb.) .

Fig 4: Identifying Screws On Selector Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

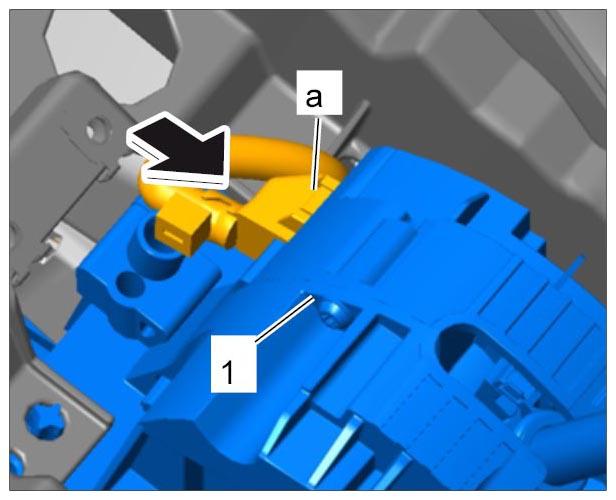

Plug in electric plug connection on selector support -1- (-arrow- ) and lock it -a- .

Fig 5: Attaching Plug Connection On Selector Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

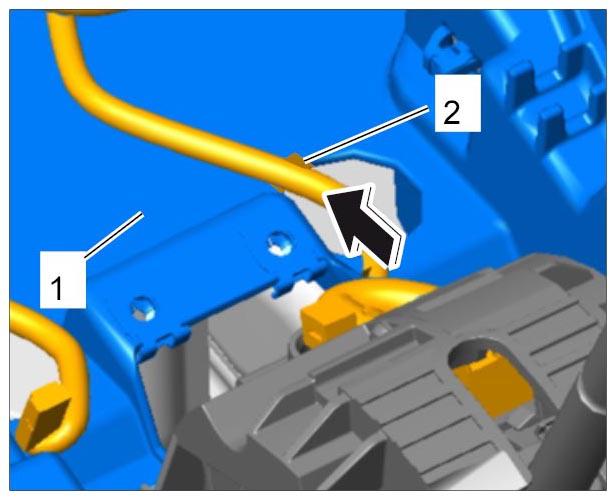

Secure fixing clip -2- on wire harness for selector support to the center console -1- .

Fig 6: Securing Clip On Wire Harness For Selector Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

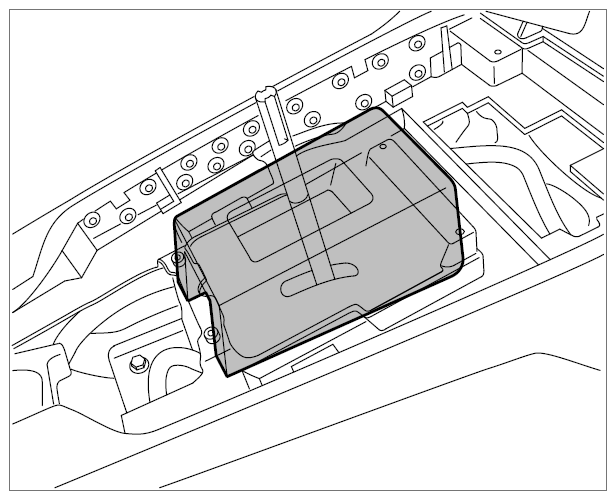

Insert insulating material. → Insulating material on selector support

Fig 7: Insulating Material On Selector Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

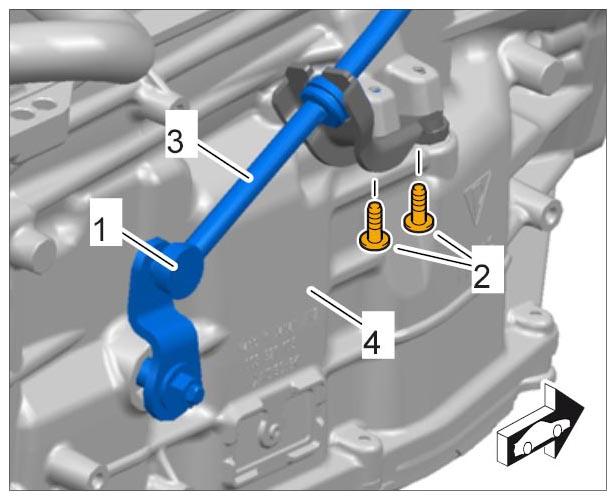

Screw in fastening screws -2- for selector lever cable -3- and clip on ball joint -1- .

Fig 8: Securing Selector Lever Cable
