Checking ATF

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Move selector lever to position P and start the engine.
Place oil collection pan underneath.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

Information
- For details of the next steps, read the test conditions specified under → INFORMATION - section on "Information".
Information
- A certain amount of oil will always be lost after unscrewing the oil inspection plug. The reason for this is that some oil remains on the plug in the lifting tube .
Unscrew oil inspection plug -1- .

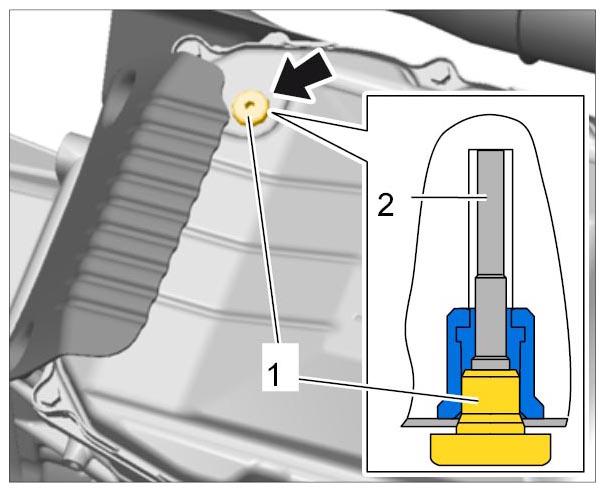

Fig 1: Identifying ATF Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The oil level is correct when ATF is dripping continuously from the lifting tube. If this is not the case, add more ATF. → TOPPING UP ATF - section on "Topping up"
Screw in oil inspection plug -1- with a new seal. → Tightening Torque: 16 Nm (12 ft. lb.) +/-1 Nm (+/- 0.5 ft. lb.)

Fig 2: Identifying ATF Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
