Topping Up ATF
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- For details of the next steps, read the test conditions specified under → INFORMATION - section on "Information".
Information
- A certain amount of oil will always be lost after unscrewing the oil inspection plug. The reason for this is that some oil remains on the plug in the lifting tube .
- Move selector lever to position P and start the engine.
- Place oil collection pan underneath.WARNING: Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
Information
- For details of the next steps, read the test conditions specified under → INFORMATION - section on "Information".
Information
- A certain amount of oil will always be lost after unscrewing the oil inspection plug. The reason for this is that some oil remains on the plug in the lifting tube .

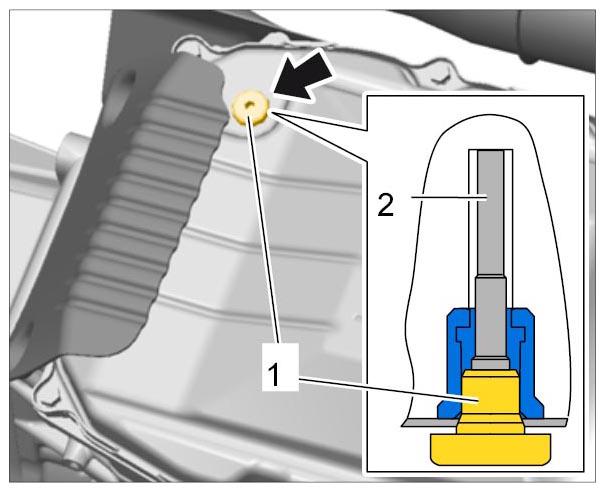

- Unscrew oil inspection plug -1- .
- Screw adapter for filling oil Adapter For Filling ATF Oil VAS 6262/2 WE 1390 into the ATF pan hand-tight.
- Connect adapter for filling oil Adapter For Filling Oil VAS 6262A WE 1389 to the rapid-action coupling and fill in ATF.
- Pull off adapter for filling oil Adapter For Filling Oil VAS 6262A WE 1389 at the rapid-action coupling and check to see if ATF emerges.
- If no ATF emerges, fill in ATF until a constant discharge is visible at the lifting tube -2- .
- Allow the ATF to drain for as long as required until the ATF is still only dripping continuously.
- Screw in oil inspection plug -1- with a new seal. → Tightening Torque: 16 Nm (12 ft. lb.) +/-1 Nm (+/- 0.5 ft. lb.)
