Changing Oil For Final Drive

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Vehicle must be horizontal in order to fill rear final drive .

Place oil collecting container underneath the vehicle.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
Unscrew oil drain plug -B- and drain the oil.

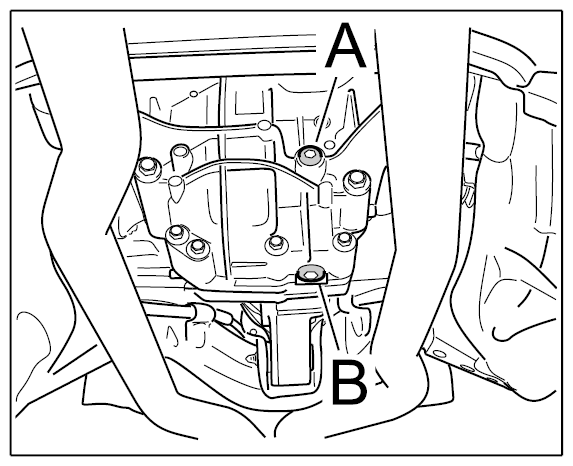

Fig 1: Identifying Oil Inspection And Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in oil drain plug -B- with new sealing ring. → Tightening torque: 35 Nm (26 ft. lb.)
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
Unscrew oil inspection plug -A- .
Use Manual Metering Pump WE 1372 to fill oil into the inspection plug opening -A- .
1. 5.1. The oil fill quantity is specified in the table Oil Adjustment Specifications For Front-Axle Final Drive And Rear Axle Differential .
2. 5.2. The oil level in the final drive can be measured using an angled piece of wire, for example.
Screw in oil inspection plug -A- with new sealing ring. → Tightening torque: 35 Nm (26 ft. lb.)

Fig 2: Identifying Oil Inspection And Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check oil for rear final drive. → CHECKING OIL FOR REAR FINAL DRIVE - section on "Checking"
