Checking Oil For Rear Final Drive

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

Information

Vehicle must be horizontal in order to check fluid level in rear final drive .

Unscrew oil inspection plug -A- .

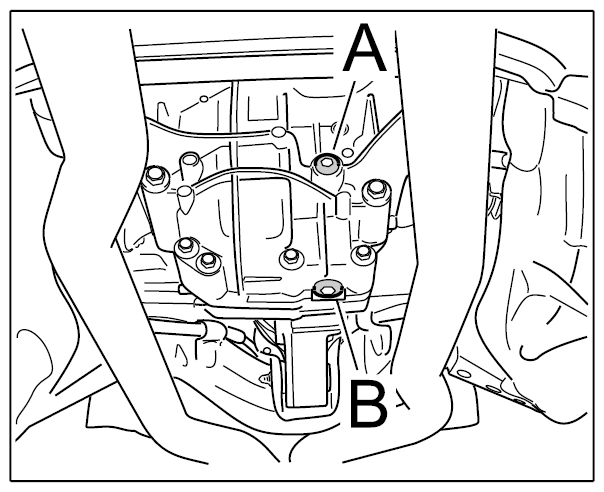

Fig 1: Identifying Inspection/Drain Plug For Rear Final Drive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The oil level is correct if the oil reaches the lower edge of the inspection window.
Information

Use only oil approved by Porsche.
If this is not the case, top up the oil. → 399035 INSPECTING AND ADDING OIL FOR REAR FINAL DRIVE - section on "Filling"
Screw in oil inspection plug -A- with a new sealing ring. → Tightening torque: 35 Nm (26 ft. lb.)

Fig 2: Identifying Inspection/Drain Plug For Rear Final Drive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
