Removing Rear Final Drive

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

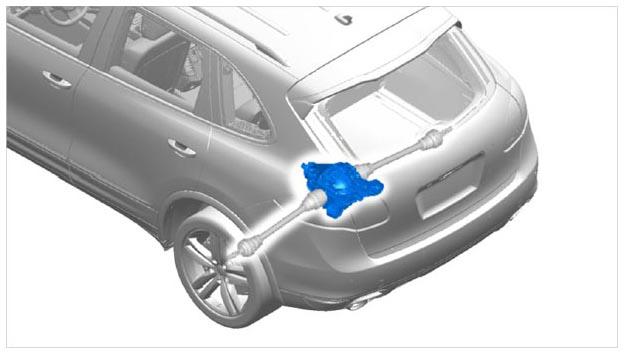

Fig 1: Identifying Installation Position Of Rear Final Drive
G09934632Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Loosen both drive shafts at the final drive. → REMOVING DRIVE SHAFT - section on "Removing"
  2. Remove rear left wheel bearing housing (wheel carrier) without separating the drive shaft from the wheel bearing housing. → REMOVING REAR WHEEL BEARING HOUSING (WHEEL CARRIER) - section on "Removing"
  3. Lower the wheel carrier with the drive shaft.
  4. Fit a stopper on the opening on the drive shaft at the final drive.
  5. Remove heat protection on the cardan shaft at the tunnel support. → REMOVING REAR CARDAN SHAFT  - section on "Removing"
  6. Loosen tunnel support for cardan shaft and leave the cardan shaft lying on the struts. → REMOVING REAR CARDAN SHAFT  - section on "Removing"
  7. Mark the position of the cardan shaft with respect to the rear final drive.

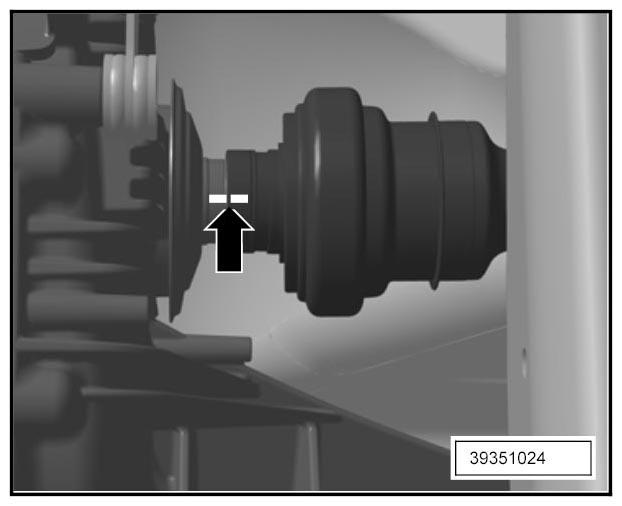

    Fig 2: Marking Installation Position Of Cardan Shaft
    G09934633Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Press the cardan shaft off the rear final drive pin using a mounting lever -A-  .

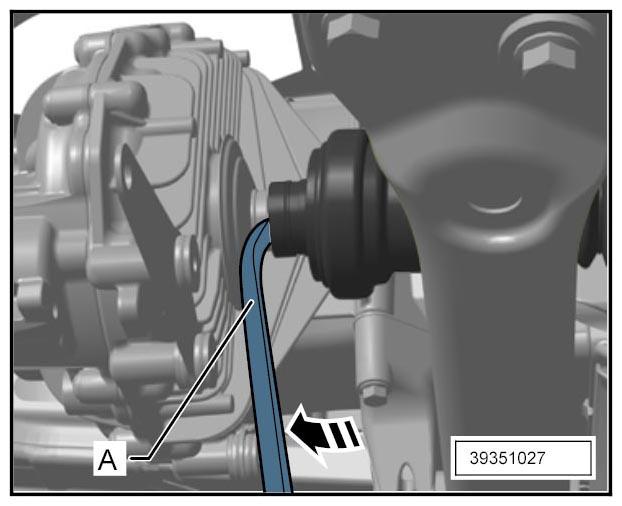

    Fig 3: Pressing Off Cardan Shaft
    G09934634Courtesy of PORSCHE CARS NORTH AMERICA, INC.

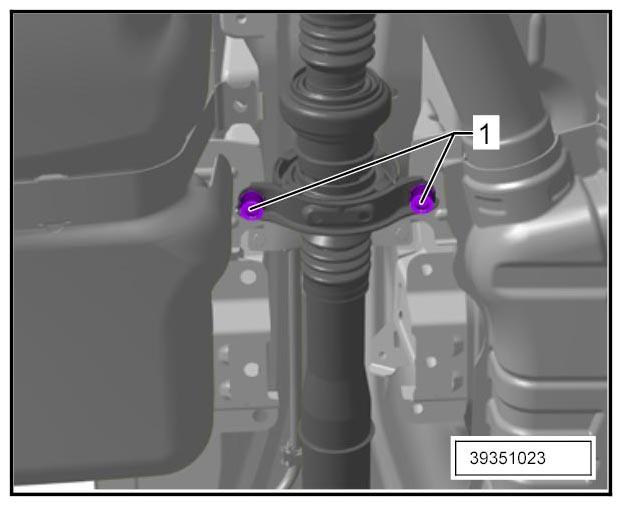

  9. Loosen center bearing holder -1-  and tie up the cardan shaft in the cardan tunnel.
    Fig 4: Identifying Center Bearing Holder
    G09934635Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Only For Vehicles With PDCC:
    CAUTION: Kinked or overstretched lines
    • Leaks in the hydraulic system

    → Only lower anti-roll bar slightly and secure it to the chassis.

    Loosen rear anti-roll bar.

    1. 10.1. Unscrew four fastening screws -1-  on the anti-roll bar -2-  at the rear axle carrier and lower the anti-roll bar until you have easy access to the two screws on the rear final drive -3-  .
    2. 10.2. Secure the anti-roll bar at this position on the axle mount.

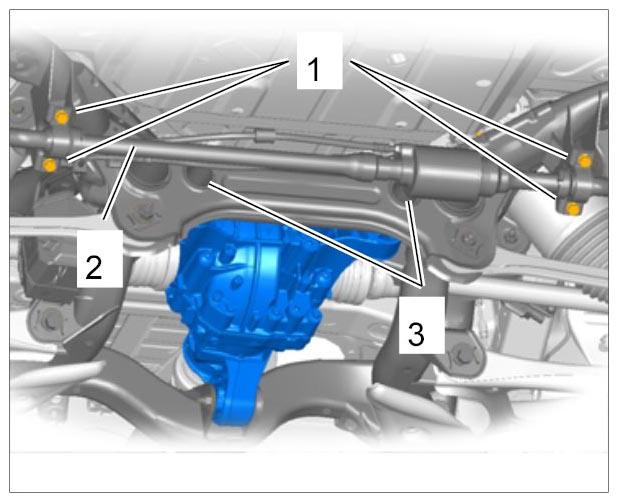

    Fig 5: Rear Anti-Roll Bar Screws Loosening
    G09934636Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. Unscrew fastening screw -1-  on the rear axle carrier at the front. Always counter with a ring wrench.

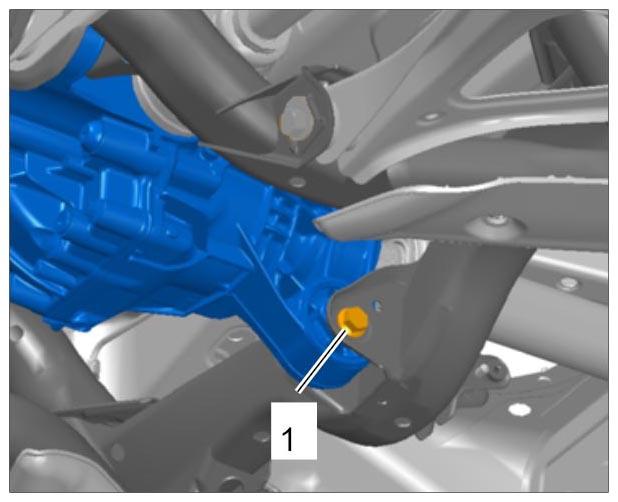

    Fig 6: Identifying Front Final Drive Mounting Screw
    G09934637Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Unscrew two fastening screws -2-  on the rear axle carrier at the rear. Always counter with a ring wrench.

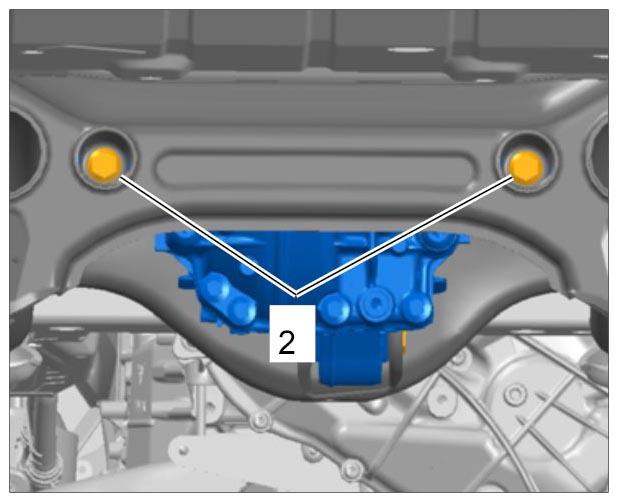

    Fig 7: Identifying Rear Final Drive Mounting Screws
    G09934638Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  13. Tip up the drive flange -A-  .

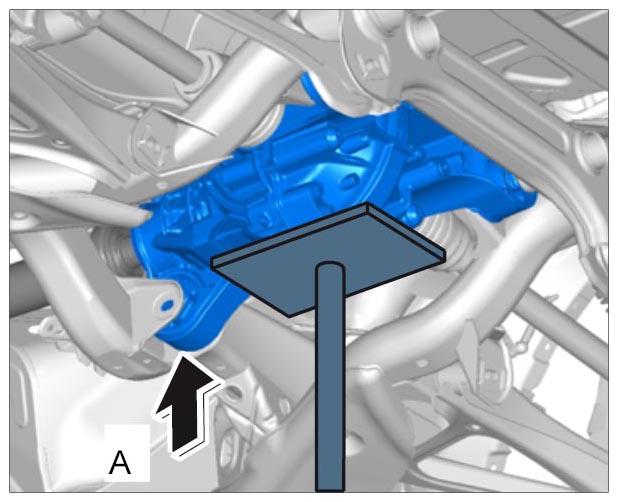

    Fig 8: Raising Front Final Drive
    G09934639Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  14. Get a second person to help you tip the final drive to the left -A-  at the same time and lower it slowly -B-  . Do not bend the drive shaft as far as it can go.

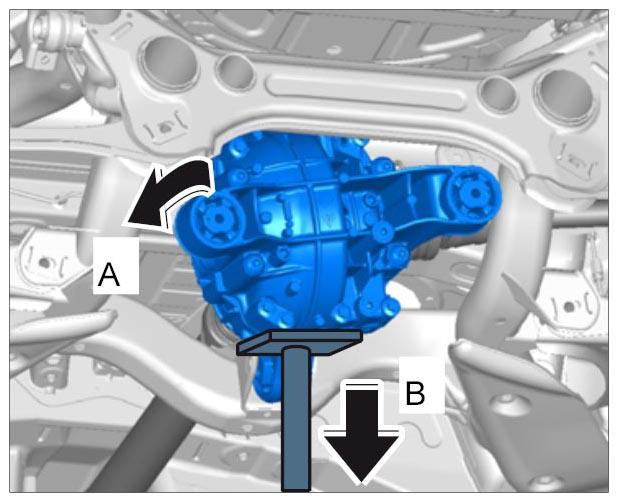

    Fig 9: Lowering Final Drive
    G09934640Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  15. Remove final drive from the drive shaft at the rear right.
  16. Fit a stopper on the opening on the drive shaft at the final drive.
