Removing Air Guide

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .
These must be carried out as a mirror image of the steps shown .

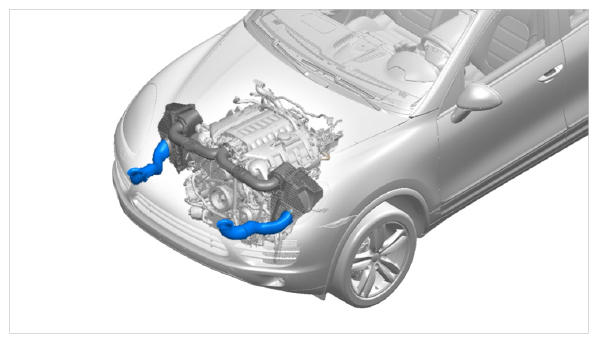

Fig 1: Identifying Air Guide - V8
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pull the air guide -1- forward -arrow- out of the air cleaner housing -2- from the wheel housing.
Unclip it carefully at the locking lugs using a suitable tool if necessary.

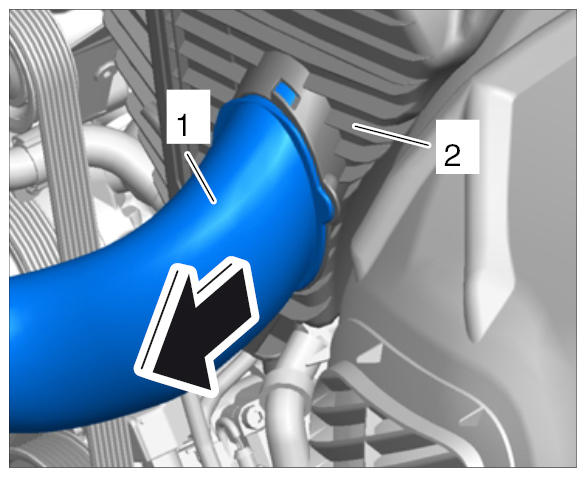

Fig 2: Removing Air Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the air guide -1- .

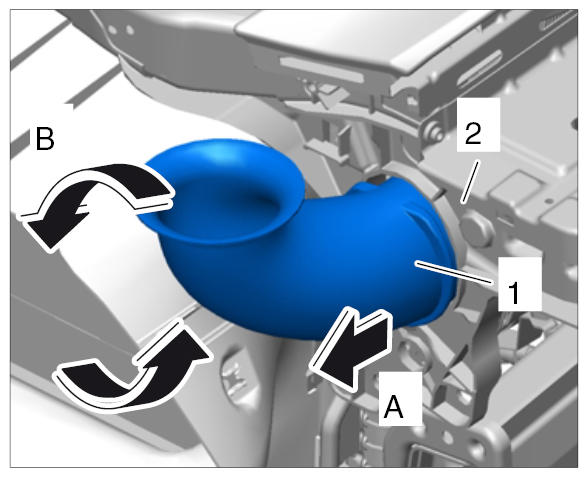

Fig 3: Removing Air Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Pull the air guide -1- forward -A- .
2. 2.2. While pulling it out of the lock carrier -2- , turn the air guide anti-clockwise -B- .
3. 2.3. Remove the air guide completely from the vehicle.
