Removal Of Chain Tensioner

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Press the bottom chain tensioner together during removal because otherwise it will push out due to spring tensioning. Secure chain tensioner with a tie-wrap in tensioned state .

15. Remove chain tensioner. → REMOVING CHAIN TENSIONER - section on "Removing"
16. Remove timing chains. → REMOVING AND INSTALLING DRIVE CHAIN FOR AUXILIARY DRIVES - section on "Removing"
17. Remove cylinder head. → REMOVING CYLINDER HEAD - section on "Removing"
18. Remove pistons. → REMOVING PISTONS - section on "Removing"
19. Remove vibration balancer. → REMOVING VIBRATION DAMPER

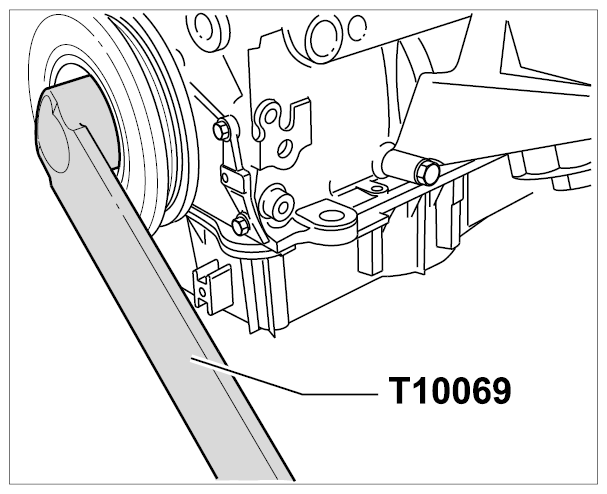

Fig 1: Turning Crankshaft Vibration Balancer Hold Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
20. Remove joint flange behind the vibration balancer.
1. 20.1. Unscrew hexagon-head bolts -3- .
2. 20.2. Carefully lever off the joint flange -2- with a screwdriver.

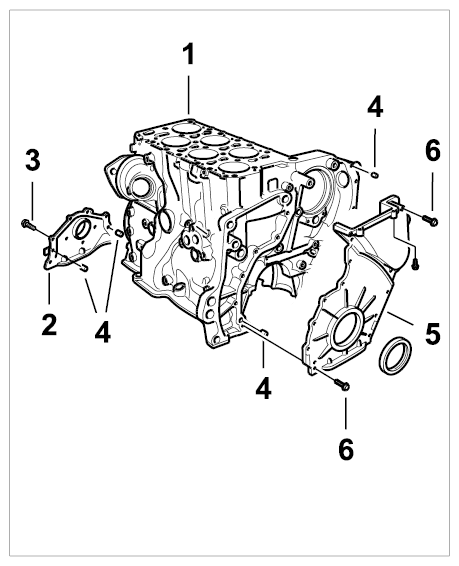

  Fig 2: Identifying Cylinder Block, Crankshaft And Vibration Balancer Joint Flange
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Cylinder Block
  2. Vibration Balancer Joint Flange
  3. Hexagon-Head Bolt On Vibration Balancer Joint Flange
  4. Straight Pin
  5. Lower Timing-Case Cover
  6. Fastening Screw On Lower Timing-Case Cover
