Removing Pistons

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The pistons are removed one after the other .
Mark the pistons, connecting rods/connecting rod caps and their assignment to each cylinder .
Pay attention to installation position of welded markings .
Pistons and connecting rods are laid on a clean surface, arranged by cylinder .
Connecting rod bolts must always be replaced .
Do not confuse worn bearing shells (mark them accordingly) .
Bearing shells that are worn down to the nickel layer must be replaced .
Connecting rod bearing shells should always be replaced .

Information

Mark the installation position and cylinder assignment with chalk or a water-resistant felt-tip pen to facilitate re-installation of used pistons .
Never use a prick punch or scriber as these will damage the coating on the piston crown .

Mark installation position of pistons before removal.
Installation position: Arrow -1- on piston crown is pointing to the pulley.

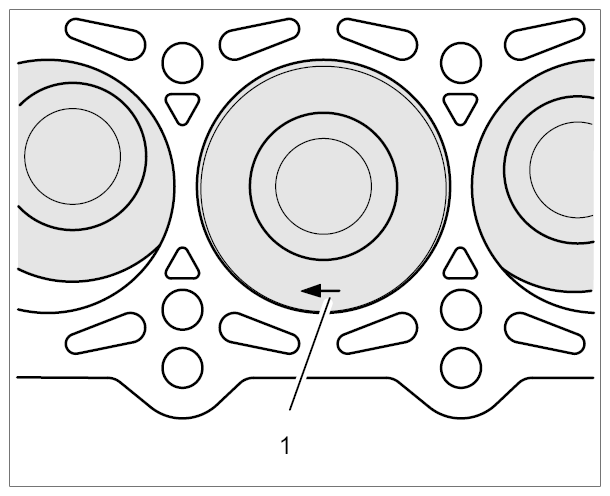

Fig 1: Identifying Piston Crown Marking
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Only replace connecting rods in sets .
- Do not confuse connecting rod bearings .
Mark connecting rods and connecting-rod bearing caps before removal -arrow- .

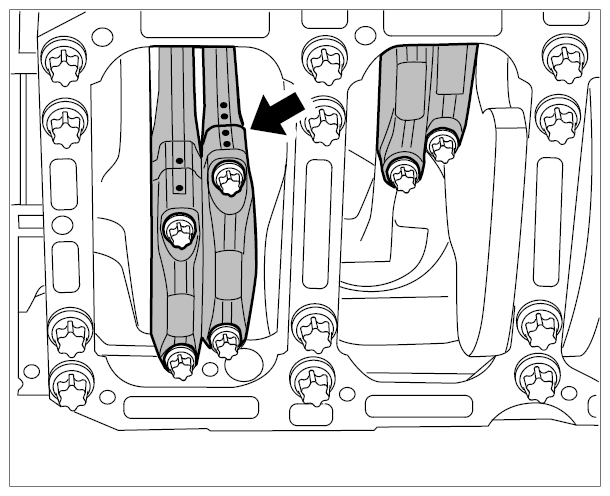

Fig 2: Locating Connecting Rods Marking
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn the crankshaft so that the crank pin of the piston to be removed is standing straight up.
Remove piston of cylinder 1 by unscrewing the connecting rod bolts.
Remove the connecting rod bearing cap and place it on a clean surface.
Press piston up out of the cylinder and counter with your other hand.
Fit the connecting rod bearing cap again immediately on the big end of the connecting rod bearing with the bearing shells and place the entire piston on a clean surface.

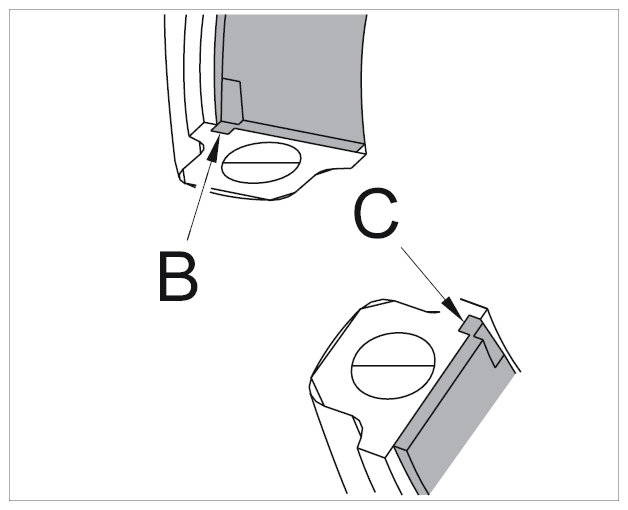

Fig 3: Identifying Connecting Rod Bearings Retaining Lugs

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove pistons for cylinders 2-6 using the same procedure.

Fig 4: Identifying Connecting Rod Numbers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove oil spray jets if necessary. →
Opening pressure: 1.3 bar.
Measure pistons and cylinder bore. → 131003 MEASURING PISTONS (INCLUDES MEASURING CYLINDER BORE) - section on "Measuring"
