Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Dispose of fluid in accordance with legal requirements .

Remove engine.
Remove engine from transmission. → 100127 REMOVING ENGINE FROM TRANSMISSION AND MOUNTING ENGINE ON TRANSMISSION
Secure engine on mounting bracket.
Remove engine retaining eyebolts at the front and rear.
Remove the engine wire harness. → REMOVING WIRE HARNESS FOR ENGINE
Remove bar ignition modules. → 282020 REMOVING AND INSTALLING DFI BAR IGNITION MODULES
Remove intake-air distributor. → REMOVING INTAKE-AIR DISTRIBUTOR - section on "Removing"
Remove oil pan. → REMOVING OIL PAN - section on "Removing"
Remove cylinder head. → REMOVING CYLINDER HEAD - section on "Removing"
1. 9.1. Remove and dispose of cylinder head gasket.
2. 9.2. Pull oil retaining valve -arrow- out using an M8 screw if necessary.

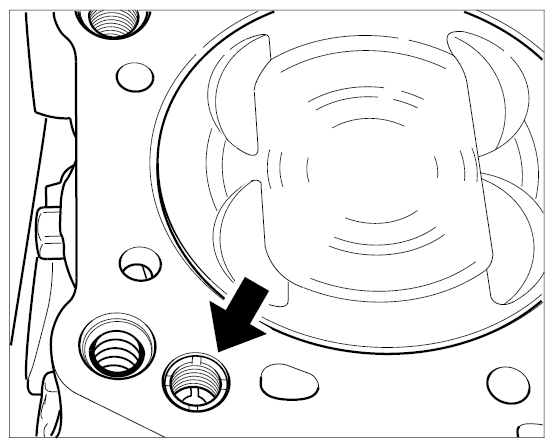

  Fig 1: Locating Oil Retaining Valve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
