Removing Radiator

Do not open the air conditioning system if at all possible when removing the radiator module  . Do not bend the lines.

Do not bend the lines when installing the radiator module  .

Information

• The retaining clips should be mounted again immediately so that they are not confused  .

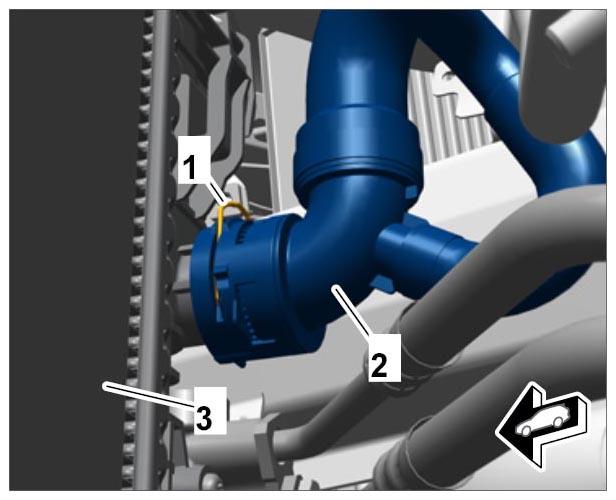

1. Remove coolant hose -1-  from the radiator by pulling out the safety clip on the coolant connection piece and pulling off the hose. Then fit the safety clip again so that it does not get mixed up.
   Fig 1: Identifying Radiator Coolant Hose

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

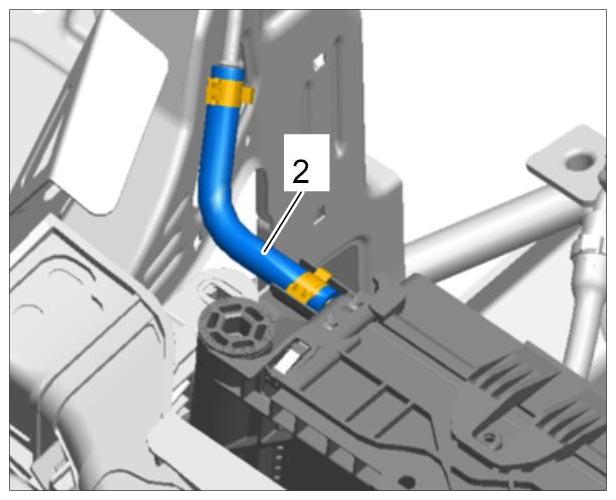

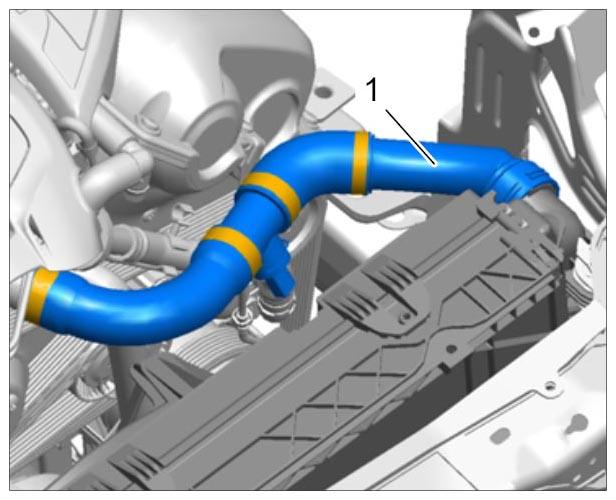

2. Loosen the spring band clamp and pull off the breather hose -2-  at the top right of the radiator.
   Fig 2: Identifying Breather Hose On Radiator

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Loosen coolant line holder -arrow -  .
   Fig 3: Locating Coolant Line Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

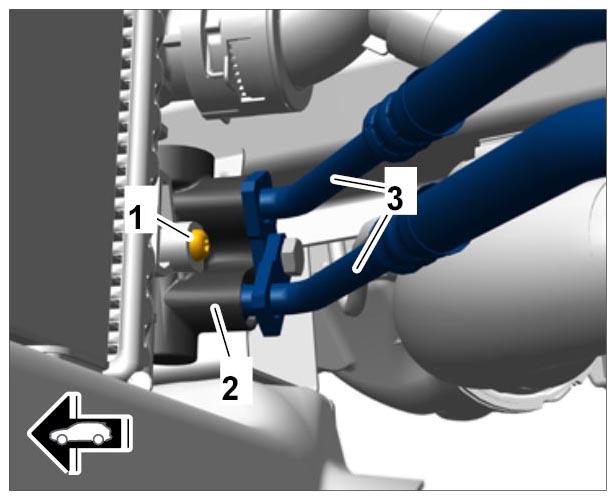

4. Unscrew fastening screw -1-  and press holder -2-  with connected ATF lines -3-  aside.
   Fig 4: Removing ATF Lines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

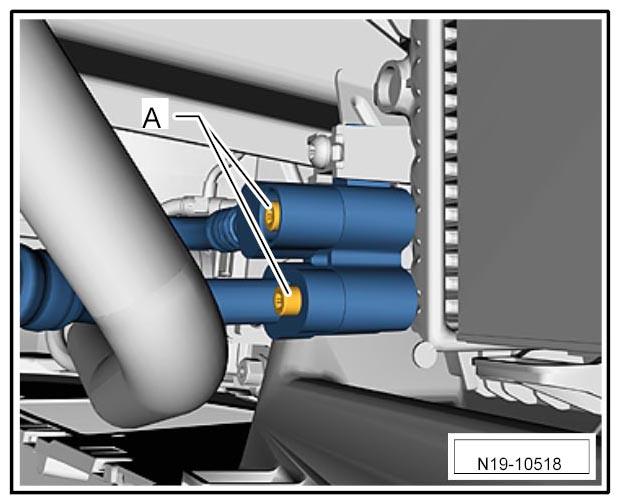

5. Remove refrigerant lines -A-  from the radiator.
   1. 5.1. Disconnect refrigerant lines on the radiator.
      Fig 5: Identifying Refrigerant Line On Radiator

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

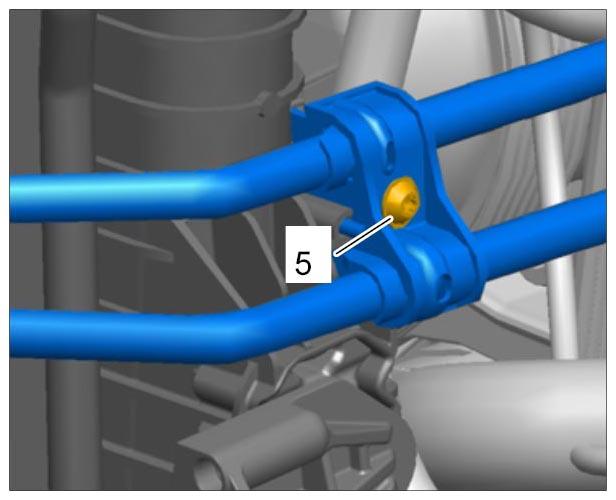

6. Unscrew fastening screw -5-  used to secure the line holder for the power-steering cooler. Pull the holder out and remove it.
   Fig 6: Identifying Power-Steering Cooler Holder Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Loosen clips -arrows -  over the radiator.
   Fig 7: Locating Radiator Clips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Release safety clip -1-  and remove coolant hose -2-  from the radiator.
   Fig 8: Identifying Lower Right Coolant Hose

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

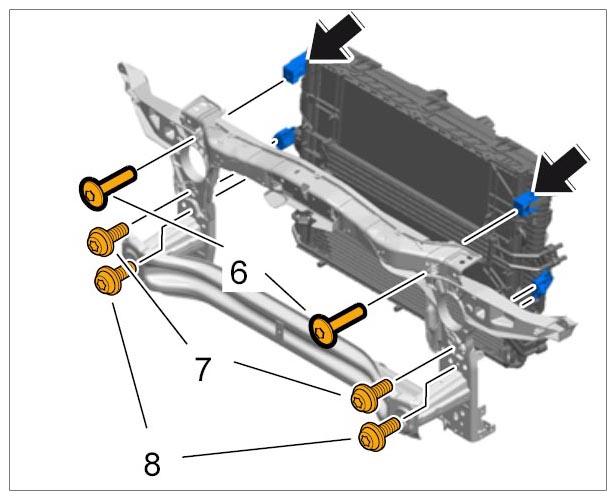

9. Unscrew fastening screws -6 and 7-  . Only loosen fastening screw -8-  .
10. Remove both holders -arrows-  at the left and right of the radiator.
    Fig 9: Removing Radiator Screws

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

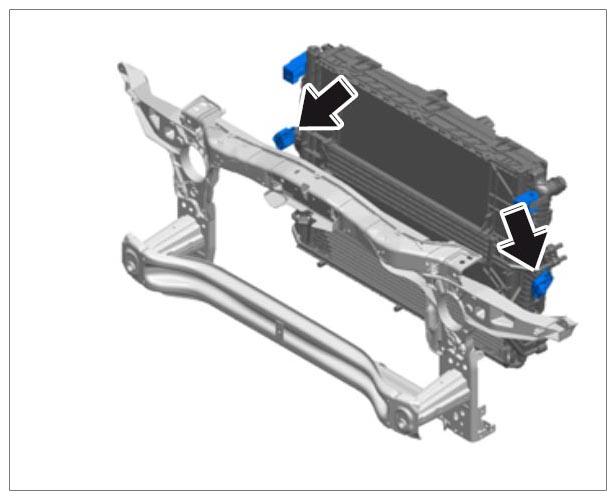

11. Turn the supports -arrows-  at the left and right sides and pull them out of the rubber sleeve.
    Fig 10: Locating Radiator Supports

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
12. Unclip power-steering cooler. To do this, unclip lines by pulling them forward out of the holder -1-  and then push them to the left out of the holder -2-  . Secure the cooler at a suitable position to prevent it from falling down.
    Fig 11: Removing Power-Steering Cooler

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

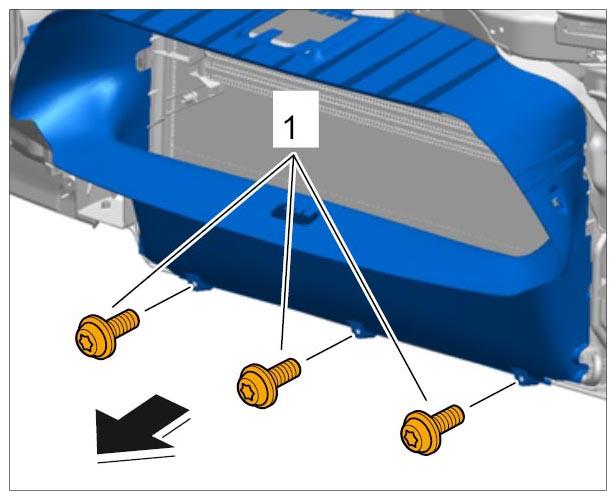

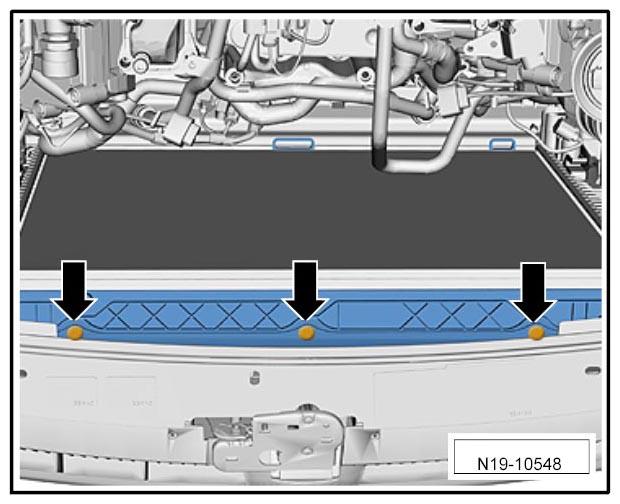

13. Unscrew fastening screws -1-  and remove lower air guide. → REMOVING CENTRE AIR GUIDE  - section on "Removing"
    Fig 12: Removing Lower Air Guide

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

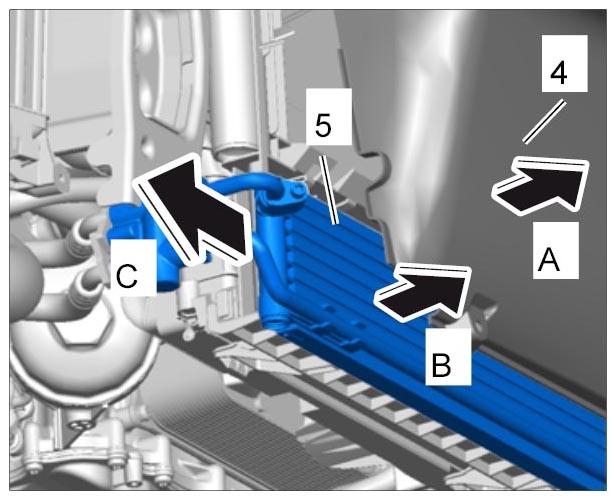

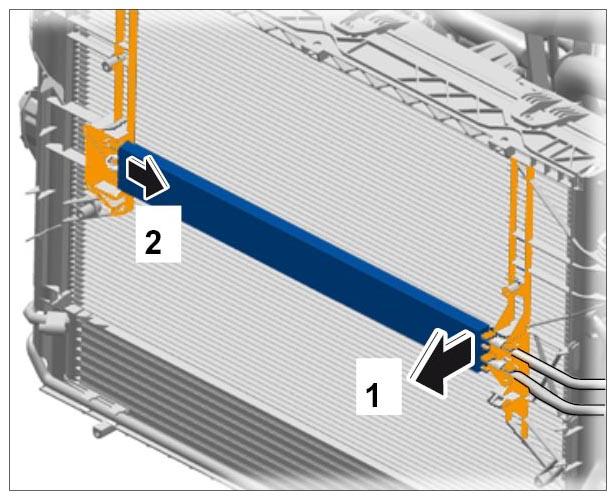

14. Unclip ATF cooler -5-  on the radiator bracket and secure with ATF lines connected at a suitable position to prevent it from falling down.
    Fig 13: Removing ATF Cooler

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    A second person is required for removing and installing the radiator.

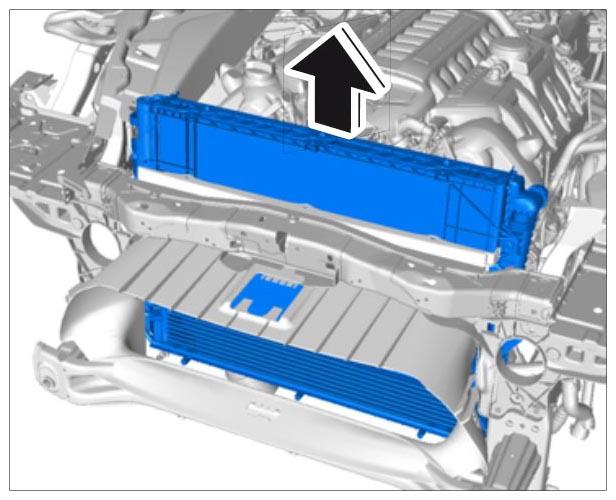

15. Lift up the radiator and remove it carefully from the vehicle in an upward direction. Be careful of all connecting lines when doing this.
