Removing Centre Air Guide

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Unclip temperature sensor.

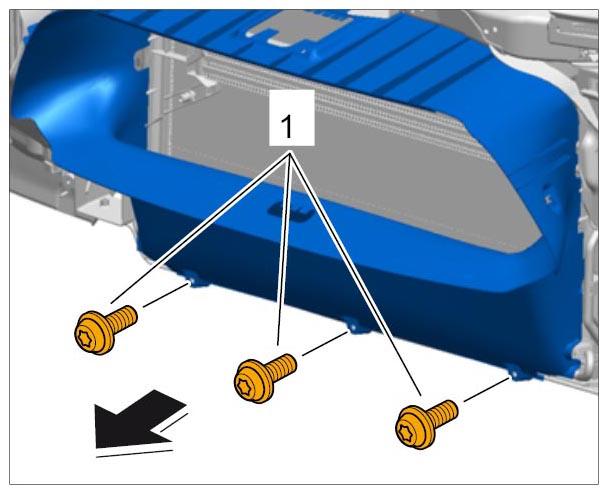

Unscrew fastening screws on center air guide at the radiator module -1- .

Fig 1: Removing Centre Air Guide Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

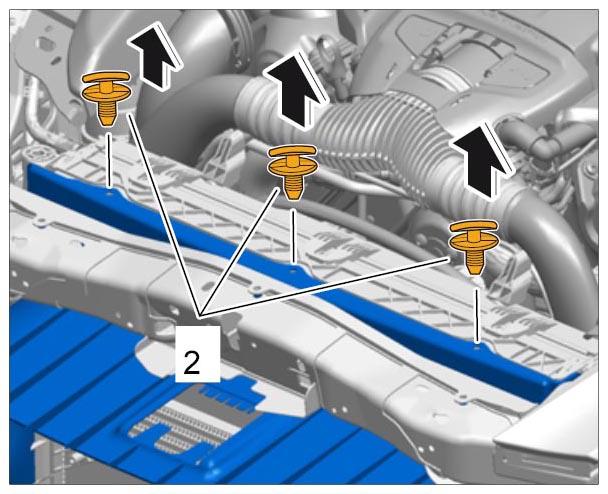

Unclip three expansion rivets at the top -2- .

Fig 2: Removing Centre Air Guide Rivets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release top of holder from the radiator.

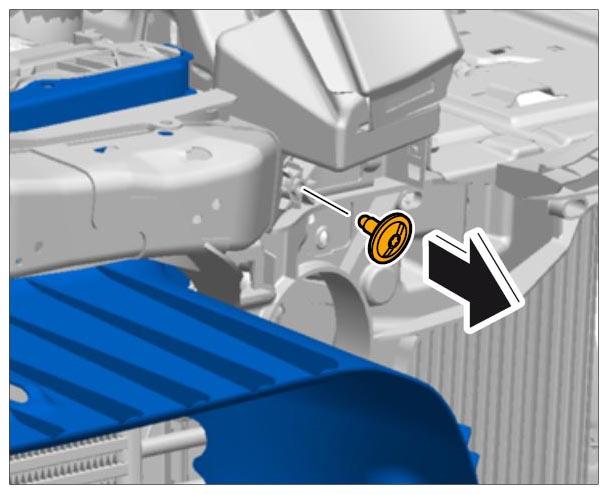

1. 4.1. Unscrew fastening screws on radiator holder at the left and right.

  Fig 3: Removing Holder From Radiator
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

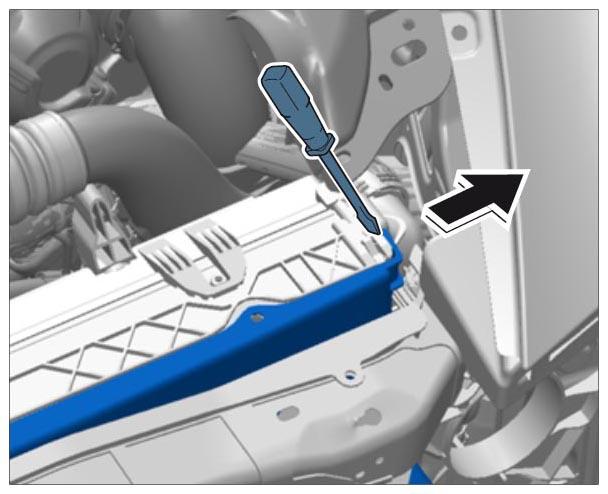

Unclip air guide at the side of the radiator.

Fig 4: Unclipping Air Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

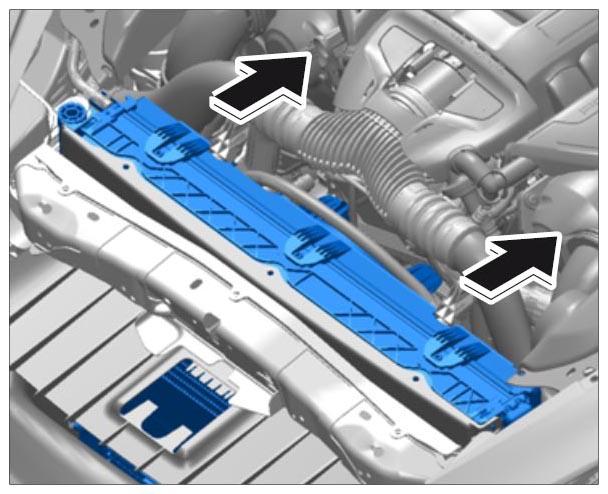

Press the radiator to the rear.

Fig 5: Pressing Radiator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

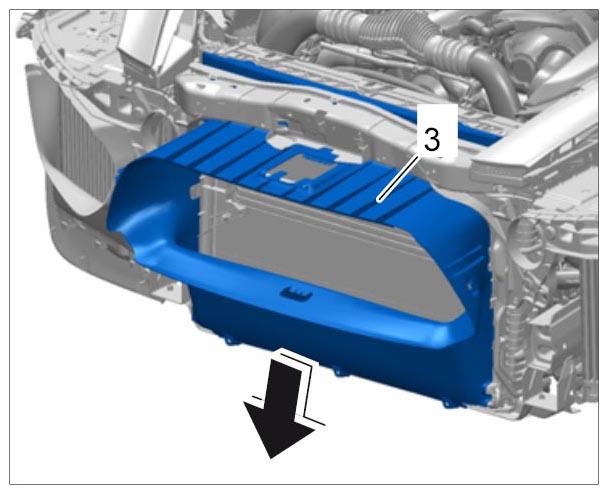

Remove the air guide -3- in a downward direction.

Fig 6: Removing Air Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
