Subsequent Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install protective plate.
1. 1.1. Fit and tighten screw -3- on the protective plate -1- .
2. 1.2. Raise the vehicle.
3. 1.3. Fit and tighten nuts -2- on the protective plate -1- .

  Fig 1: Identifying Protective Plate, Nuts And Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install engine guard and tighten screws -arrows- .

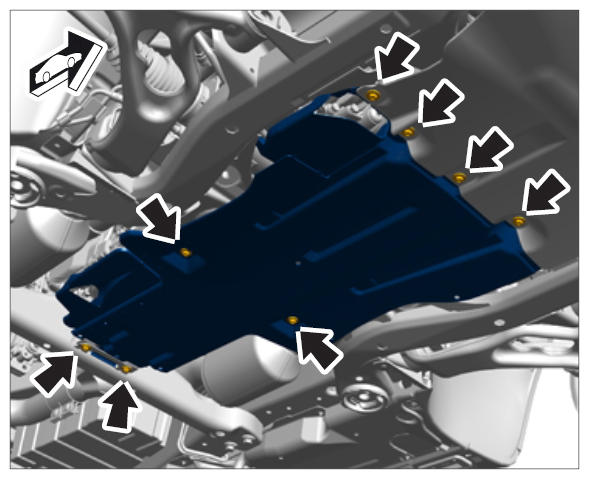

Fig 2: Locating Engine Guard Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install cross panel at the left and right. → Installing Cross Panel
Install front cover (engine compartment). → 700219 REMOVING AND INSTALLING FRONT COVER (ENGINE COMPARTMENT)
Install wiper linkage. To do this, complete Steps 6-12 in → 921519 REMOVING AND INSTALLING WIPER MOTOR .
Install cowl panel cover. → 664419 REMOVING AND INSTALLING COWL PANEL COVER
Install both wiper arms. → Installing Wiper Arms
Install rear profile seal for front lid. → Installing Front Lid Seal
