Installing Wiper Arms
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
To counteract the deformation of the wiper rubber that occurs when it is at rest, the wiper arm is alternately moved to two different parked positions. However, the wiper arm may only be removed and installed in the lower parked position. Before removing or installing the wiper arm, operate the wiper once and watch whether the wiper is moved up again slightly into the upper parked position after it has reached the lower parked position. In this case, operate the wiper again so that the wiper arm is moved into the lower parked position.
- Fit wiper arms on the wiper linkage.

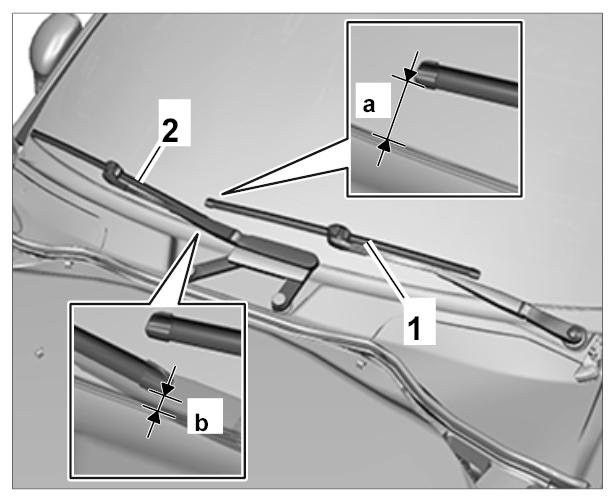

- Adjust dimension -a- for the wiper arm on the driver's side -1- .
- Adjust dimension -b-
for the wiper arm on the passenger's side -2-
.

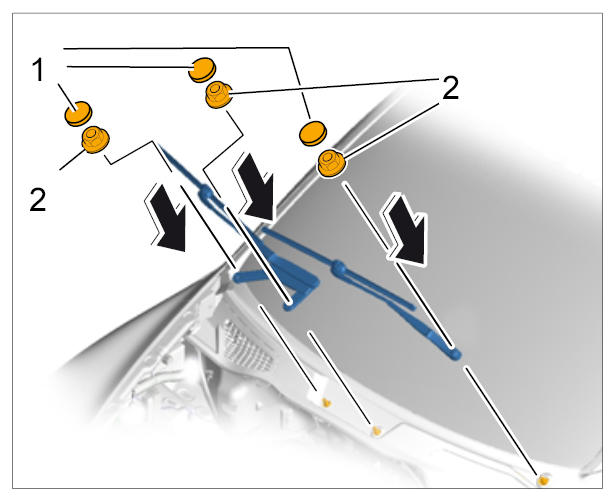

Driver's side Passenger's side -a- -b- 59 mm 11 mm - Hold the wiper arm by pressing lightly on the cone and fit the fastening nut -2- .
- Screw on and tighten fastening nut -2- for the wiper arm.
- Press on the cap -1- .
- Actuate the wiper motor until it comes to a stop and check the position of the wiper arm again.
