Installing Brake Booster

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold the brake lines aside carefully  ahead of the brake booster.
  2. Fit the brake booster carefully.
  3. Fit and tighten fastening nuts -1-  for the brake booster under the dashboard. Tightening torque 26 Nm (19 ftlb.) +/-3 Nm (+/-2 ftlb.)

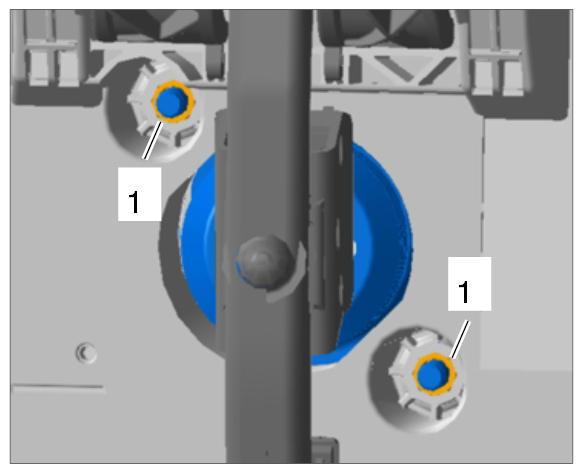

    Fig 1: Identifying Brake Booster Fastening Nuts
    G09937566Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Fit the brake booster push rod on the brake pedal.
    1. 4.1. Press the brake pedal forward until the ball joint engages in the mounting. → Installing Brake Pedal
  5. Carefully fit the vacuum line -1-  into the brake booster -2-  .

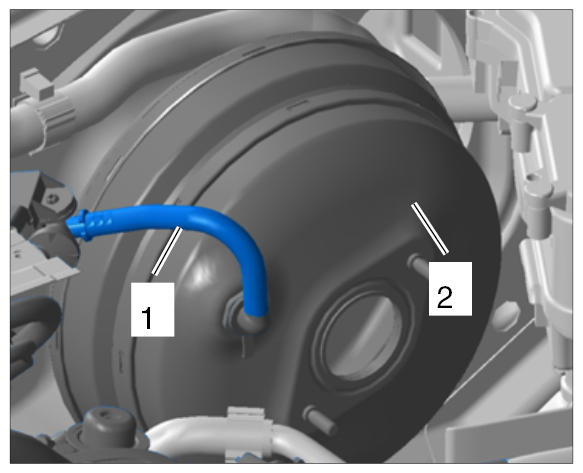

    Fig 2: Identifying Vacuum Line On Brake Booster
    G09937567Courtesy of PORSCHE CARS NORTH AMERICA, INC.
