Installing Brake Pedal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Do not grease or spray the brake pedal shaft (bearing pin) .
Use new lock nuts .
Observe correct Tightening Torques → 4X - CHASSIS - GENERAL -- 92A CAYENNE Tightening Torques for brake mechanism - section on "Technical values" .
Tightening Torque for brake pedal shaft (bearing pin): 20 ± 3 Nm/15 ± 2 ft. lb. .

Insert brake pedal into the vehicle.

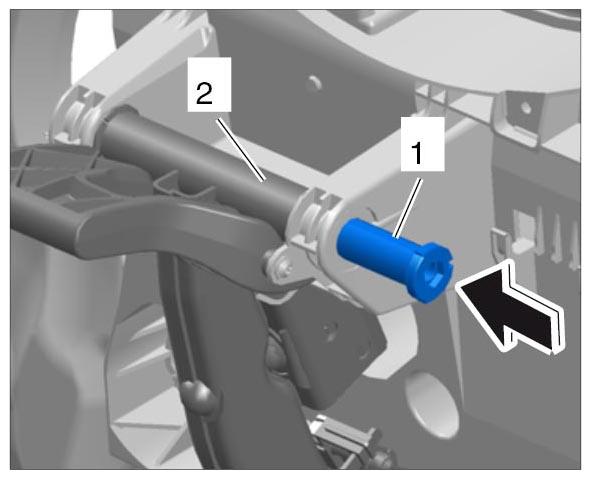

Press the brake pedal shaft -1- fully into the brake pedal -1- (-arrow- ).

Fig 1: Pressing In Brake Pedal Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

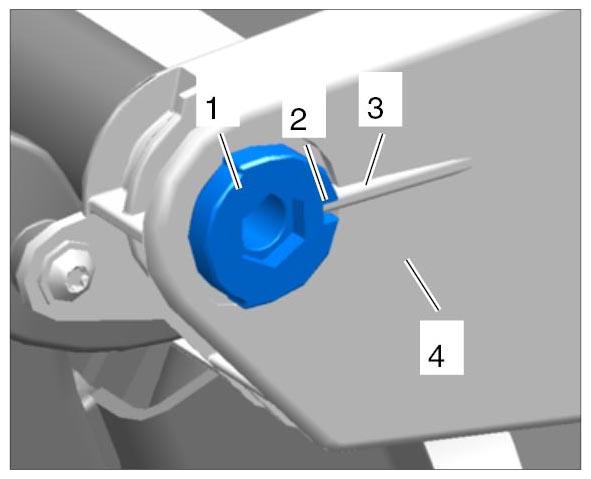

When pushing in the brake pedal shaft -1- , make sure that the cut-out -2- on the brake pedal shaft -1- fits into the guide -3- on the holder -4- .

Fig 2: Identifying Brake Pedal Shaft, Guide And Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

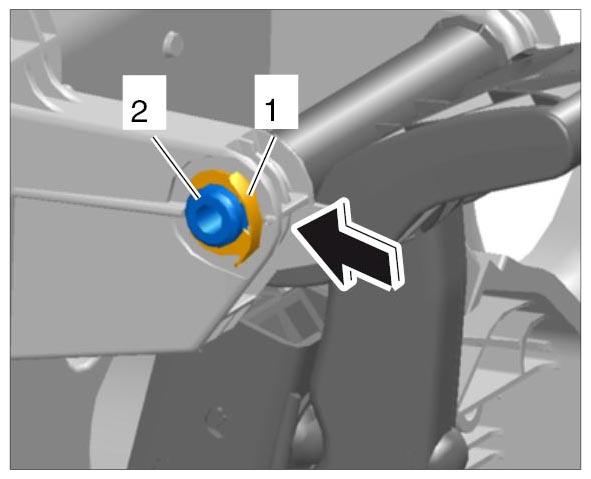

Slide the lock -1- at the left onto the brake pedal shaft -2- (-arrow- ).

Fig 3: Fitting Brake Pedal Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

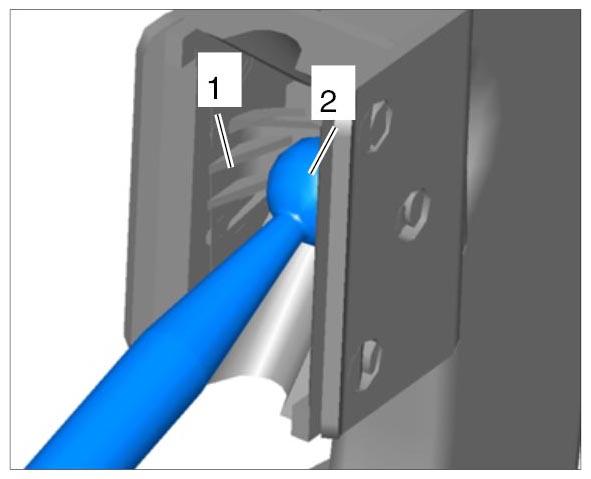

Position brake pedal -1- on the push rod -2- for the brake booster.

Fig 4: Positioning Brake Pedal On Push Rod
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

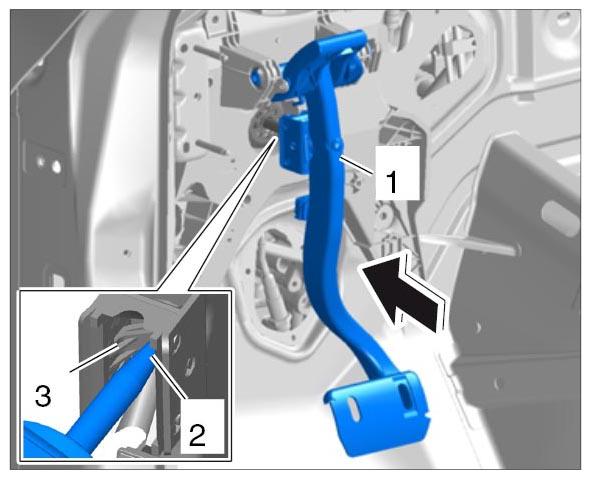

Press brake pedal -1- fully -arrow- until the push rod -2- engages with an audible click in the holder -3- on the brake pedal.

Fig 5: Fitting Brake Pedal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
