Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove air-conditioning compressor. → REMOVING ELECTRIC AIR-CONDITIONING COMPRESSOR
  2. Remove left engine mounting. → REMOVING ENGINE MOUNTING
  3. Unscrew screws -arrows-  and remove engine support on the left.

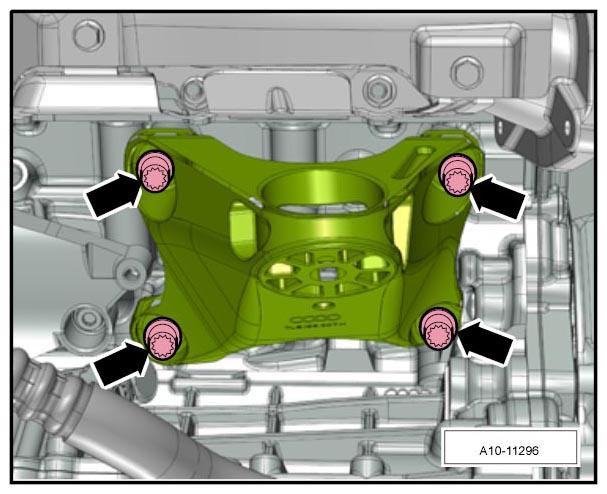

    Fig 1: Locating Left Engine Support Screws
    G09932710Courtesy of PORSCHE CARS NORTH AMERICA, INC.
