Reworking Rear Window Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check rubber stop adjustment at the rear window cover.
    1. 1.1. Check the excess force at the rubber stop -1-  by hand from the inside through the rear window cover -2-  . If you can move the rubber stop -1-  , then the excess force must be corrected by unscrewing the rubber stop (max. 1 turn).

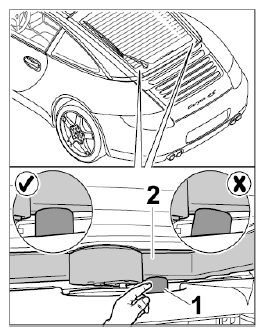

      Fig 1: Checking Rubber Stop Adjustment At Rear Window Cover
      G09824464Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 1.2. Check the contact between the rear window cover and rubber stop using a strip of paper.

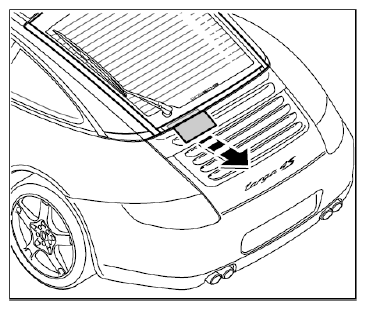

      Fig 2: Checking Contact Pressure Of Rear Window Cover
      G09824465Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • If the paper strip can be pulled out, then the excess force at the rubber stop must be corrected. Adjust the closing aid if necessary. →  INSTALLING CLOSING AID
