Procedure For Eliminating Noises From The Roof Assembly

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

There must always be two people in the vehicle when performing test drives for the purpose of finding the source of noises - a driver, who simulates the situation in which the noise occurs, and a person to check the noise.

Optional accessories or objects must be removed from the vehicle before the test drive.

The test drive must be carried out on an even road surface, observing the road traffic regulations.

During the test drive, pay attention to the following information in order to localize the faults:

Check to see exactly where the noise is coming from on the roof assembly at the front or rear, left/right.
Check the cause of the noise, particularly related noises.

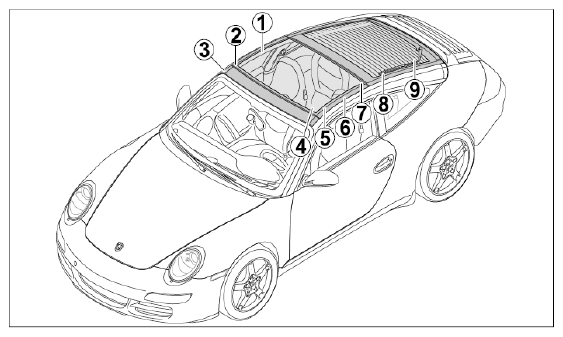

Fig 1: Overview Of Roof Assembly Noises Exact Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive mechanism
Air deflector
Cowl panel cover
Roof joint cover strip/sliding-roof panel
Sunroof seal, top
Sunroof seal, bottom
Seal for center joint
Trim frame for rear window
Rear window

Procedure for eliminating noises from the roof assembly
Test drive (see notes)
Check exact location of noise ← →
Noises from roof assembly, front	Noises from roof assembly, rear
Visual inspection and checking procedure. ↓	Visual inspection and checking procedure.
Sliding-roof panel/roof joint cover strip Check to see if there are strips of Teflon tape on the sliding-roof panel (contact surface between roof joint cover strip at the sides and front and cowl panel cover). If not: Retrofit strips of Teflon tape on the sliding-roof panel. For a description of the procedure, see: ==> REWORKING SLIDING-ROOF PANEL/ROOF JOINT COVER STRIP	Rear window cover Check transition points to the body (gap dimensions). Check rubber stop adjustment at the rear window cover. For a description of the procedure, see: ==> REWORKING REAR WINDOW COVER ↓
Drive mechanism Clean and grease all moving parts of the drive mechanism. Check and adjust the preload. Check for stiffness following adjustment. Replace the end rubber stops if they are worn. For a description of the procedure, see: ==> REWORKING DRIVE MECHANISM ↓	Trim frame for rear window Check position of the side trim frame with respect to the rear trim frame and separate with Teflon tape if necessary. Check position of the side trim frame with respect to the rear window and separate with Teflon tape if necessary. Check narrow point between the side trim frame and lid hinge and correct if necessary. For a description of the procedure, see: ==> REWORKING TRIM FRAME FOR REAR WINDOW ↓
Air deflector Clean and grease all moving parts of the air deflector. Clean and grease contact points, particularly points of contact with the sliding-roof panel. Replace rubber stops if they are worn. For a description of the procedure, see: ==> REWORKING AIR DEFLECTOR ↓
Seal for center joint Check seal for visible signs of wear on the antifriction coating. If this is OK: Clean and grease the seal. If this is not OK: Replace the seal. For a description of the procedure, see: ==> REWORKING SEAL FOR CENTRE JOINT .
Sunroof seal, bottom Clean and grease the seal. Replace sunroof seal at the bottom if the previous measure does not work. For a description of the procedure, see: ==> REWORKING SUNROOF SEAL AT THE BOTTOM
Sunroof seal, top Clean the flock-coating with a brush. Clean and grease contact points, particularly points of contact with the sliding-roof panel. Replace sunroof seal at the top if the previous measure does not work. For a description of the procedure, see: ==> REWORKING SUNROOF SEAL AT THE TOP ↓
Cowl panel cover Clean the flock-coating on the seal with a brush. Check fastening screws and rework them if necessary. For a description of the procedure, see: ==> REWORKING COWL PANEL COVER ↓
Perform a final test drive to check that the cause of the problem was corrected. ↓
If the noise is still there, contact the Technical Competence Center (TCC).
