Subsequent Work

  1. Engage the cover on the inside -Arrow-  .

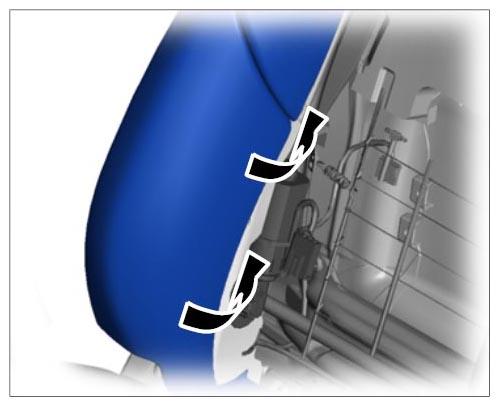

    Fig 1: Attaching Cover
    G10027966Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Engage the clip -1-  for the cover -A-  .

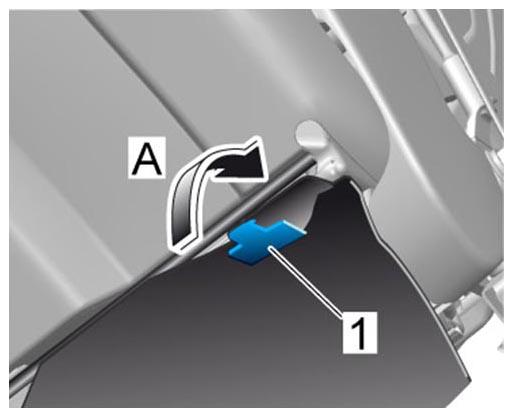

    Fig 2: Attaching Rear Cover
    G10027967Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Install cover for front middle backrest. → INSTALLING COVER FOR FRONT MIDDLE BACKREST
  4. Connect the battery. → CONNECTING AND DISCONNECTING BATTERY .
