Installing Cover For Front Middle Backrest

  1. Position Cover -1-  On The Backrest -3-  (-Arrow-  ) And Straighten It. Press On Velcro Strips -2-  .

    Be Careful With The Seams Between The Backrest Cover And Middle Backrest Cover -Inset-  .

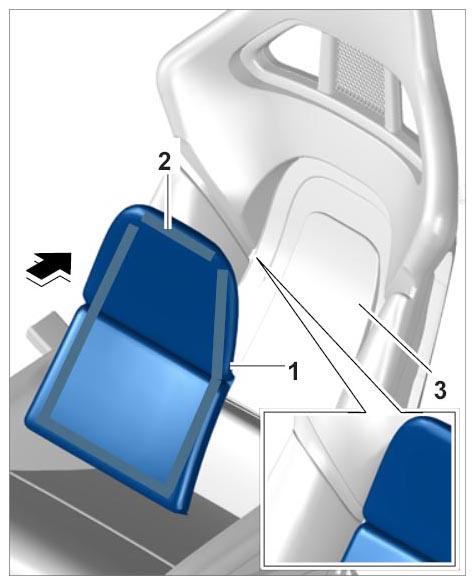

    Fig 1: Installing Cover For Front Middle Backrest
    G10025955Courtesy of PORSCHE CARS NORTH AMERICA, INC.
