Installing control module for gas discharge lamp

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Insert electrical connection for the gas discharge lamp into the closure cap.

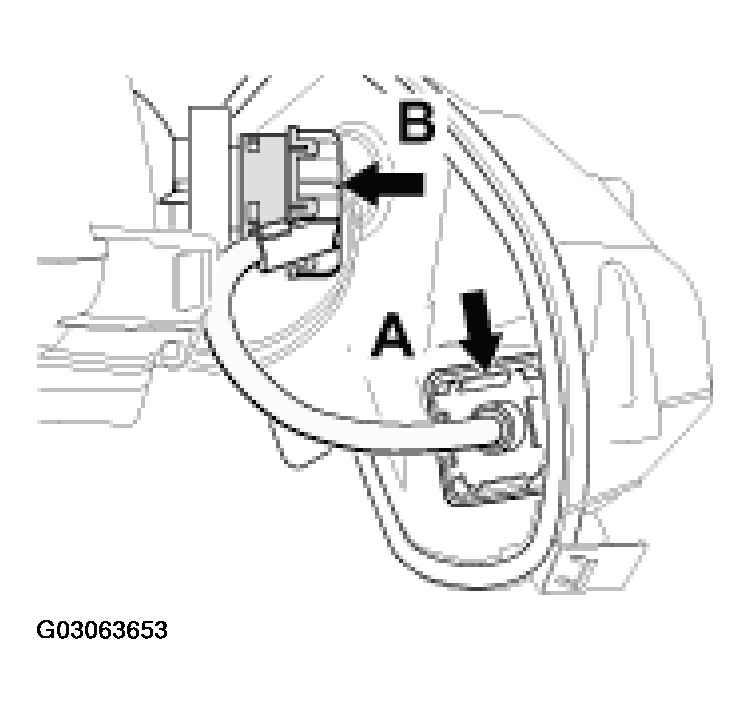

Clip in wiring arrangement -A- and check for correct seating.
Connect and screw in (bayonet lock) the electrical plug connection for the gas discharge lamp -B- until it engages.

Fig 1: Clipping In Wiring Arrangement & Connecting Electrical Plug Connection For Gas Discharge Lamp (From MY '02)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Engage the electrical plug connection (grey plug) on the control module.

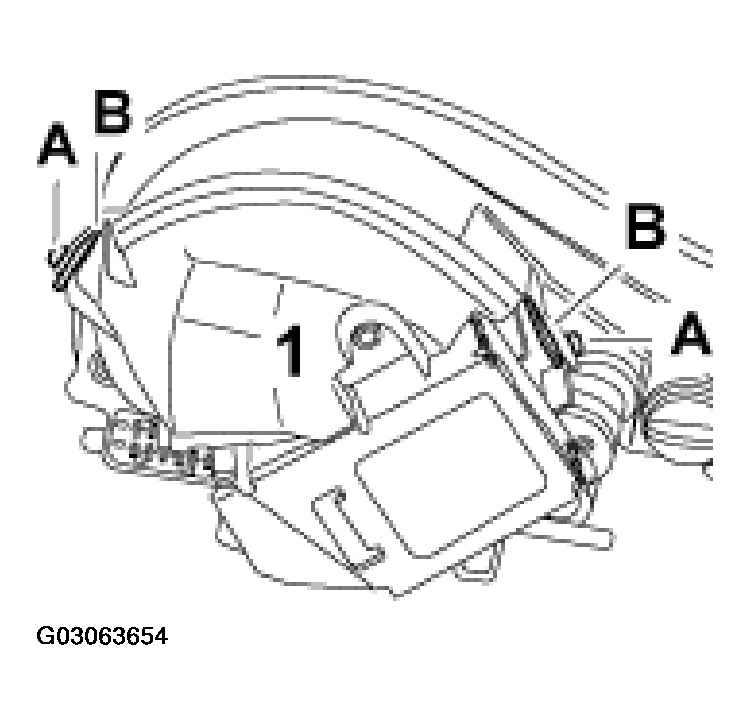

Put the cap -1- into position and press down until both lock tabs -B- engage. Screw in both fastening screws -A- . Tightening torque: 4 Nm (3 ftlb.).

Fig 2: Positioning Cap, Engaging Lock Tabs & Screwing In Fastening Screws (From MY '02)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

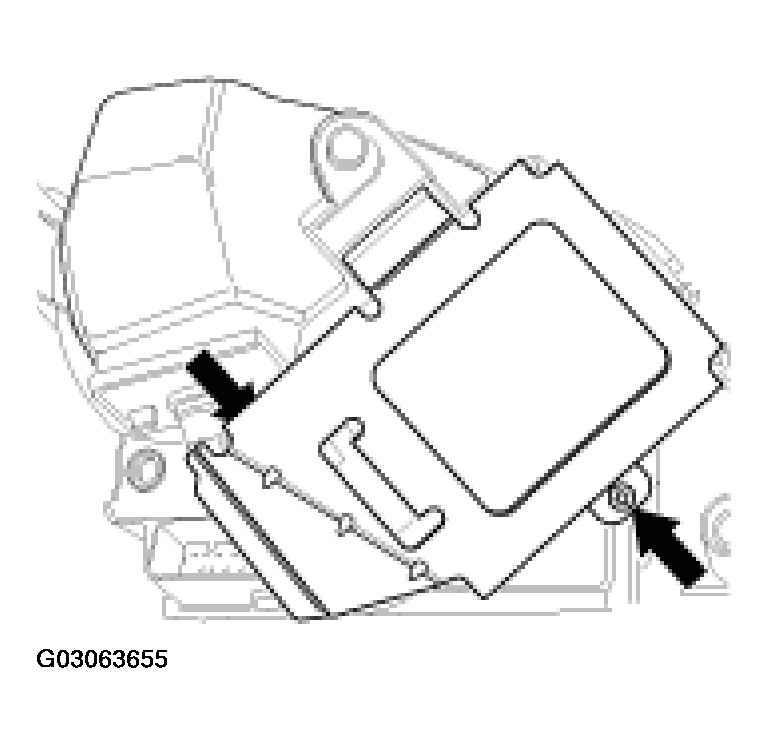

Fasten the control module in the correct position (observing the mounts on the closure cap) and fasten the holder with the fastening screws.
Tightening torque: 4 Nm (3 ftlb.).

Fig 3: Fastening Control Module For Gas Discharge Lamp With Screws (From MY '02)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Install main headlight and perform a function test. See INSTALLING MAIN HEADLIGHT .
