Installing main headlight

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Do not attach any covers (e.g. stone shields or films) in the area of the headlights.
Switch off ignition.

Insert the headlight into the guide rails and push it fully into the wing -arrow- .

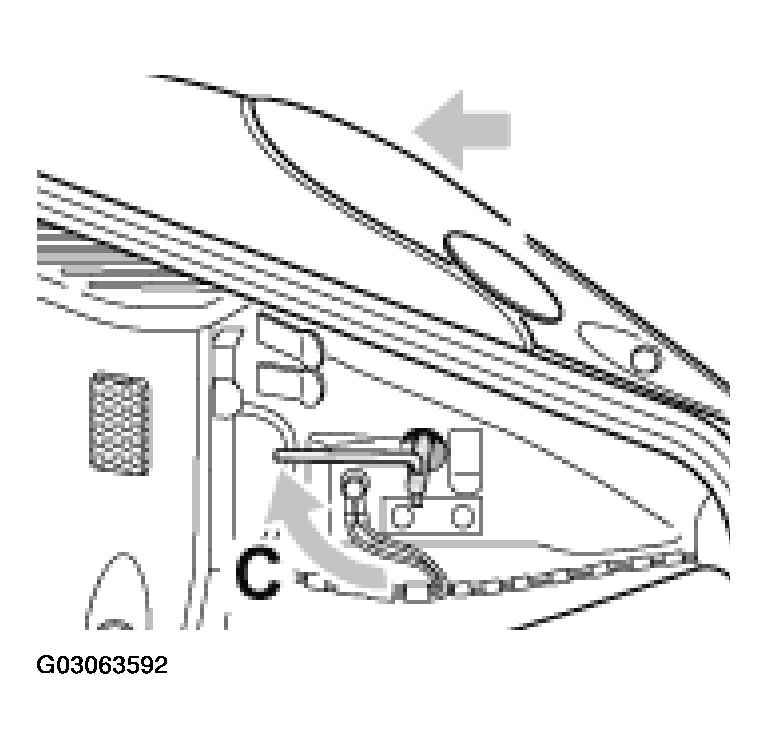

Press the headlight to the rear, turning the socket wrench at the same time until the wrench points horizontally to the rear -arrow C- . See Fig 1 . In the process, the headlight lock must engage with an audible and perceptible click.

Fig 1: Inserting Headlight Into Guide Rails & Wing
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Check the correct seating of the headlight, e.g. by pulling gently in the area of the fog light.

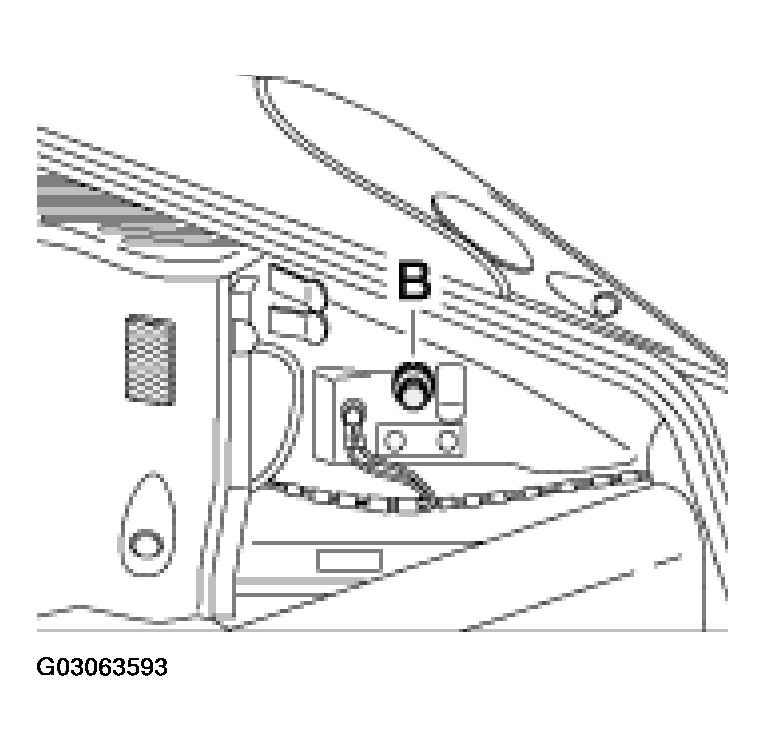

Insert rubber stopper -B- in the release opening.

Fig 2: Inserting Rubber Stopper In Release Opening

Courtesy of PORSCHE OF NORTH AMERICA, INC.

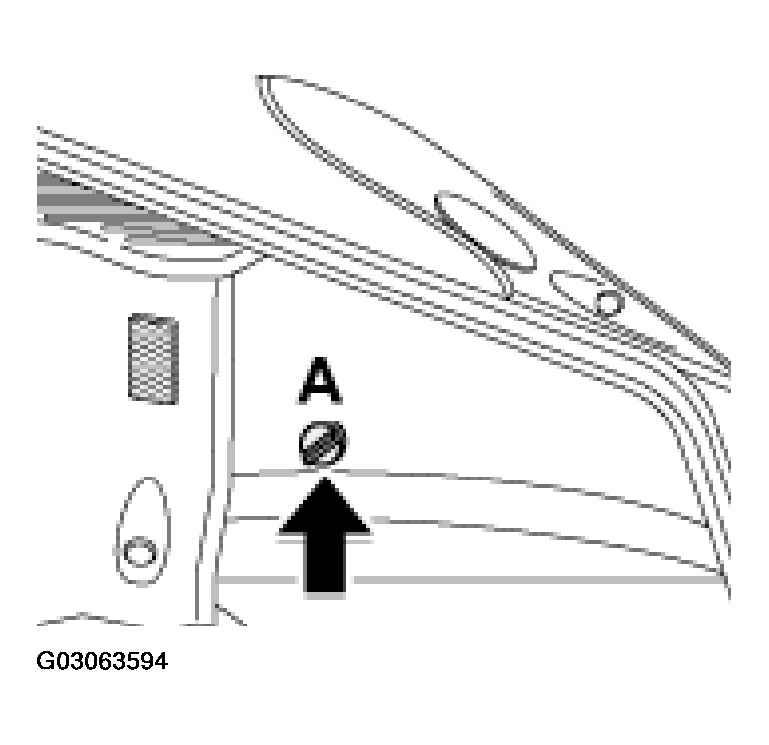

Screw the side carpet tight with the plastic screw -A- .

Fig 3: Installing Side Carpet With Plastic Screw
Courtesy of PORSCHE OF NORTH AMERICA, INC.
