Installing bulb for fog light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: See INSTALLING BULBS

Connect the electrical plug connection of the bulb.

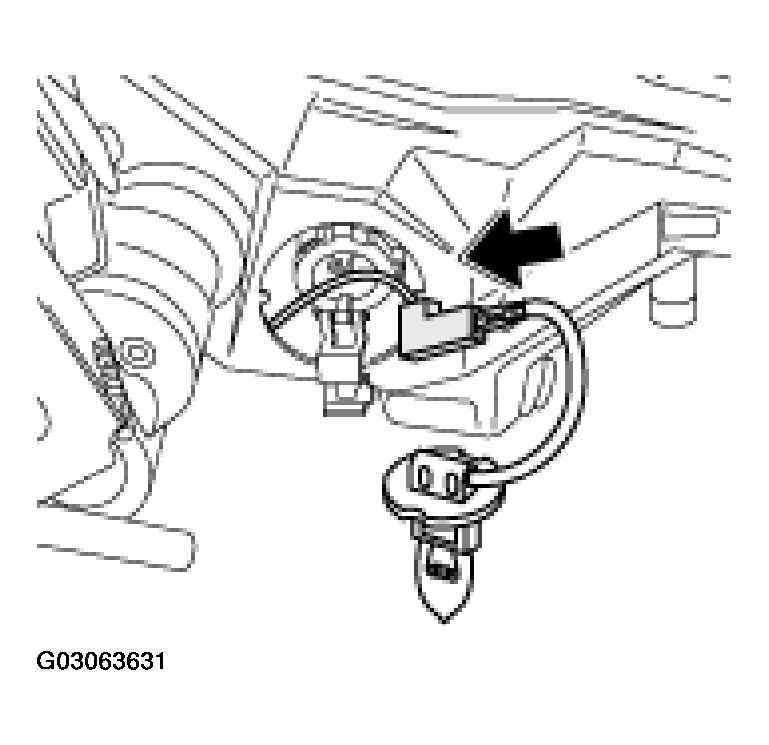

Fig 1: Connecting Fog Light Electrical Plug Connection Of Bulb (From MY '02)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Insert bulb in the headlight housing and engage the retaining bracket.

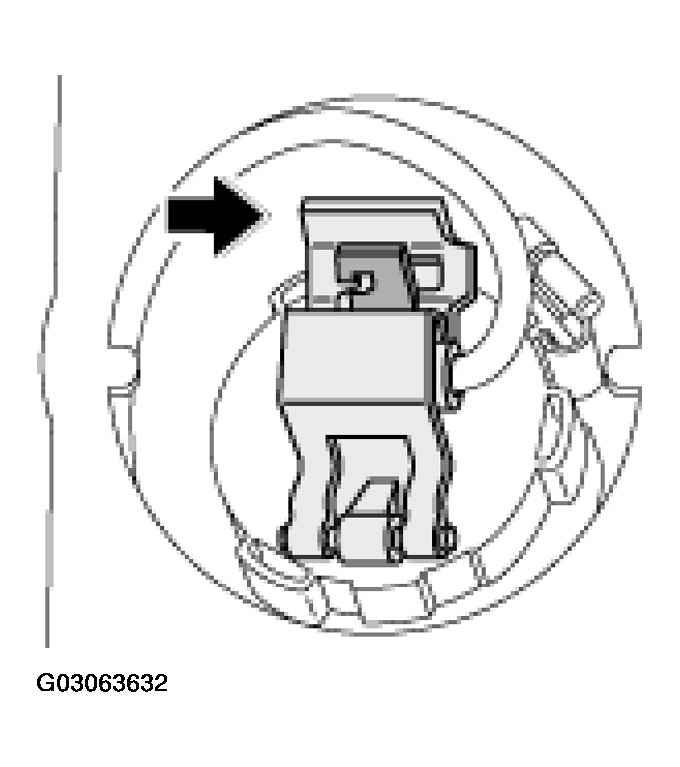

Fig 2: Engaging Fog Light Retaining Bracket (From MY '02)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Close closure cap and install main headlight. See INSTALLING MAIN HEADLIGHT .

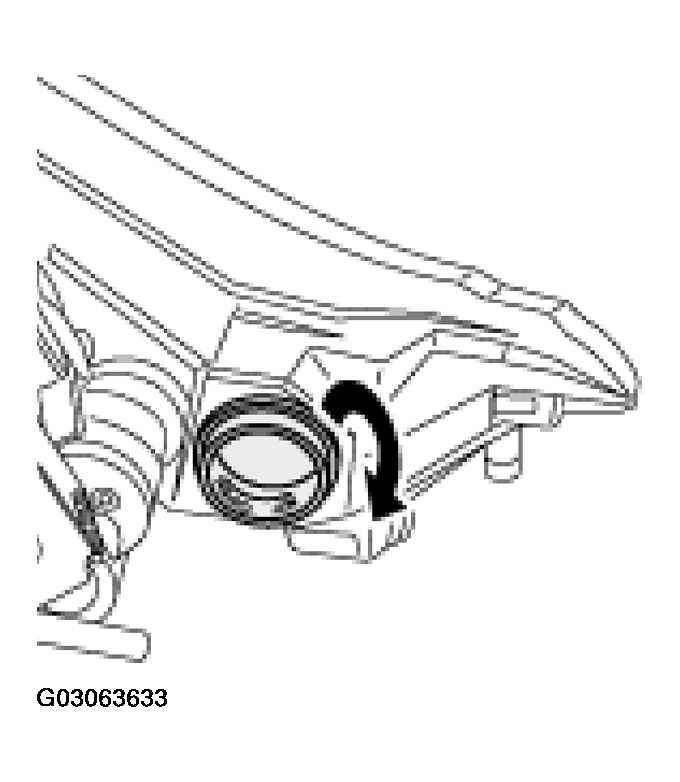

Fig 3: Closing Closure Cap (From MY '02)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Perform a function test.
