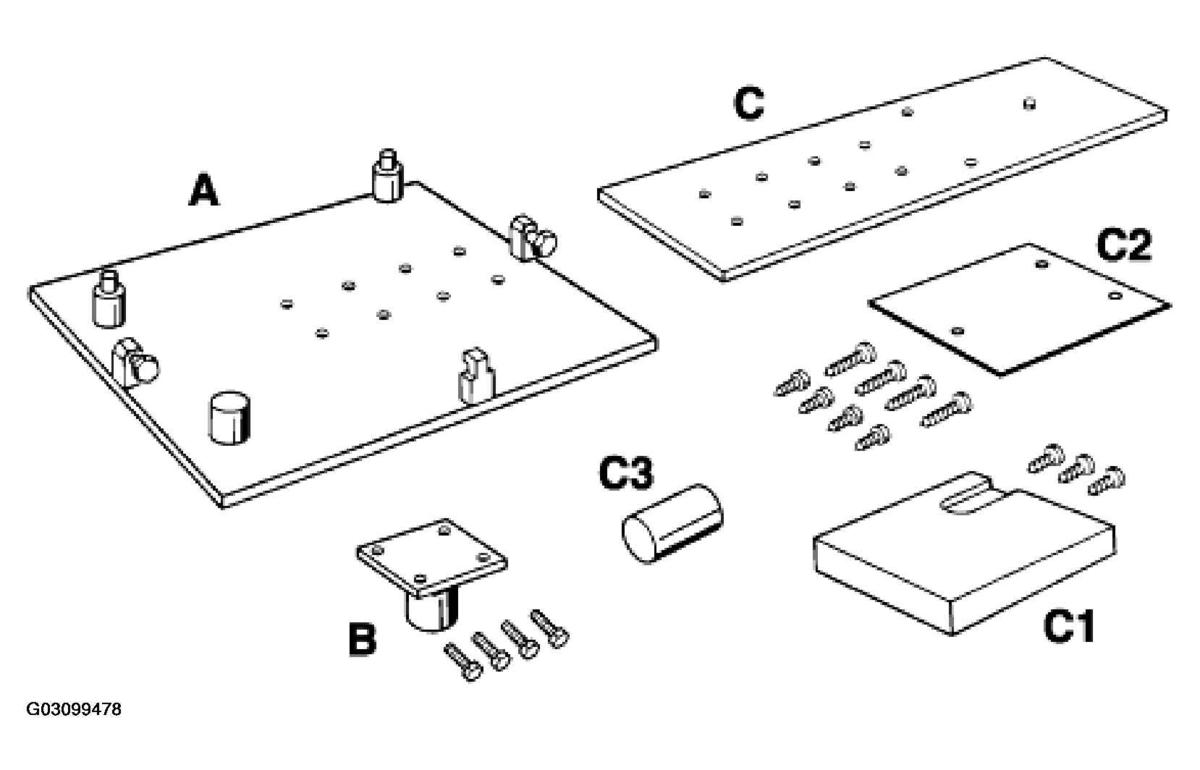

Fig 1: Identifying Special Tools - Removing And Installing Engine As From MY 2002 (1 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOL DESIGNATION (1 OF 2)

Item	Special tool designation	Remarks
A		Use in conjunction with workshop jack
B		4 hexagon-head bolts M8x20 included in delivery scope
C		For supporting the engine-transmission unit
C1	Support for Tiptronic transmission (wooden board)	Included in 9592/1 scope of delivery. Fasten wooden board on the support plate
C2	Steel plate for tolerance compensation	Included in 9592/1 scope of delivery
C3	Support for manual transmission	Included in 9592/1 scope of delivery
	Screw assortment, consisting of: 4 hexagon-head bolts M8x25, 4 hexagon-head bolts M8x16, 2 wooden bolts 6x20, 1 wooden bolt 8x25	Included in 9592/1 scope of delivery

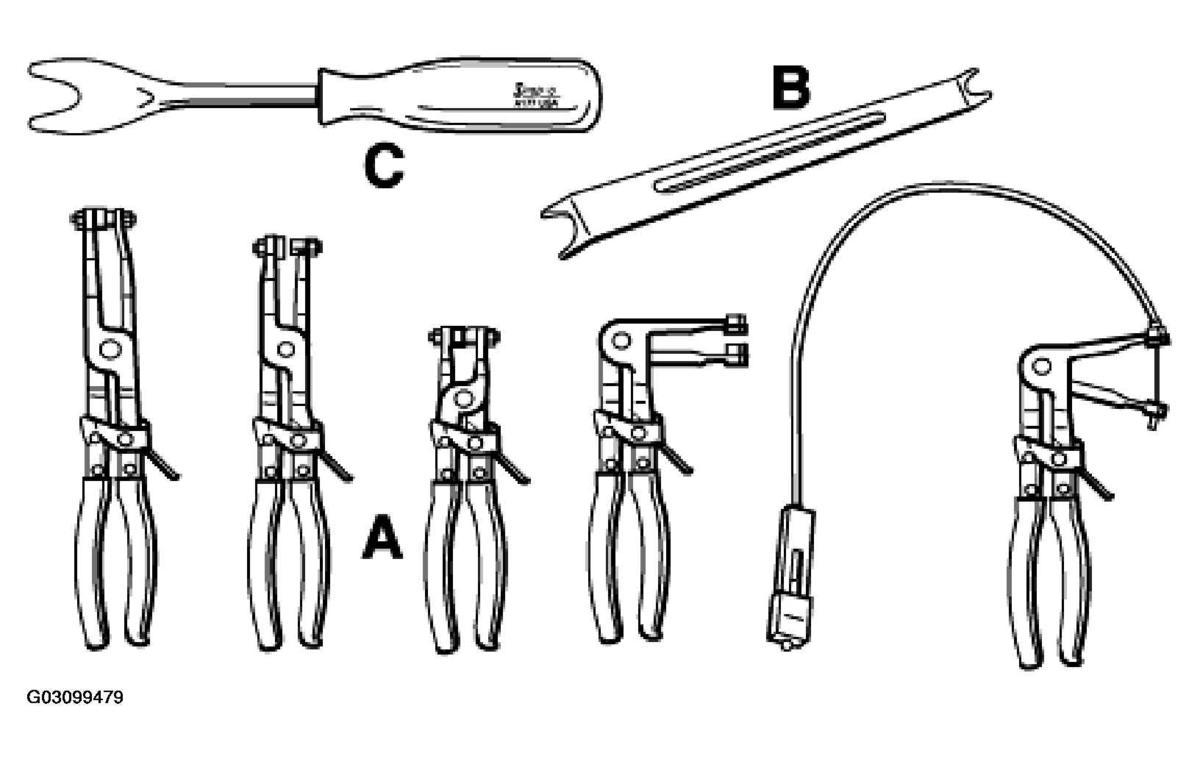

Fig 2: Identifying Special Tools - Removing And Installing Engine As From MY 2002 (2 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOL DESIGNATION (2 OF 2)

Item	Special tool designation	Remarks
A	Spring-band clamp pliers	Commercially available, e.g. Muhr und Bender
B		For checking the correct seating of plug-in couplings. Suitable for pressure and return lines (nominal diameter 6 and 10)
C	Removal tool, universal, e.g. removing belt tensioner, selector lever cables, plug connections, servo lines	Commercially available
