Adjusting tools, manual transmission

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If the special tool retainer plate 9592 is being used for the first time, 4 additional threaded bores must be integrated.
  1. Lay the support plate 9592/1 on the reverse side of the retainer plate 9592 and screw into place at the 4 threaded bores provided using 4 hexagon-head bolts M8x25.

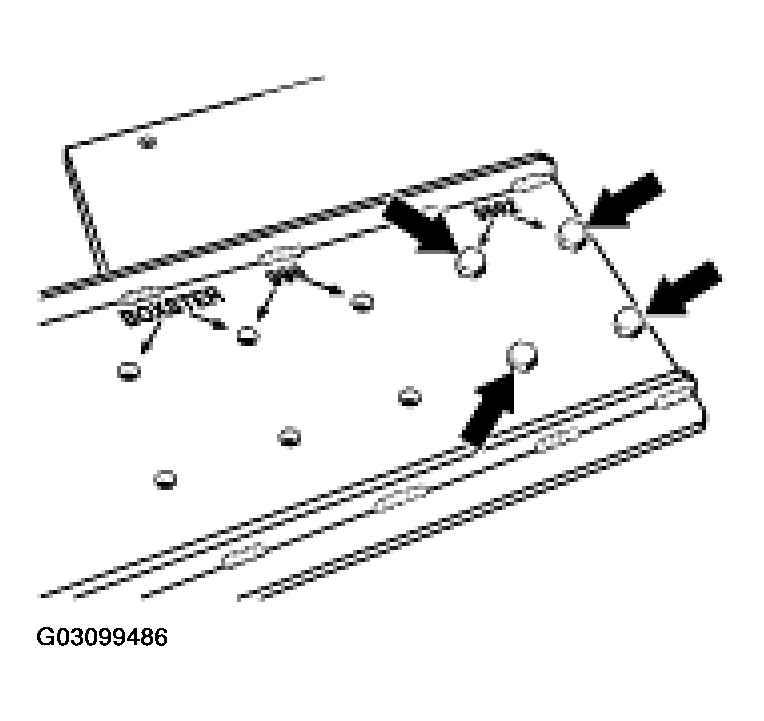

    Fig 1: Identifying Hexagon-Head Bolts M8X25
    G03099486Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Countersink the retainer plate at the designated bores for 996 (-arrows-  ) with a 9 mm drill bit. The support plate serves as the drilling template. Then unscrew the 4 screws again and lay the support plate to one side.

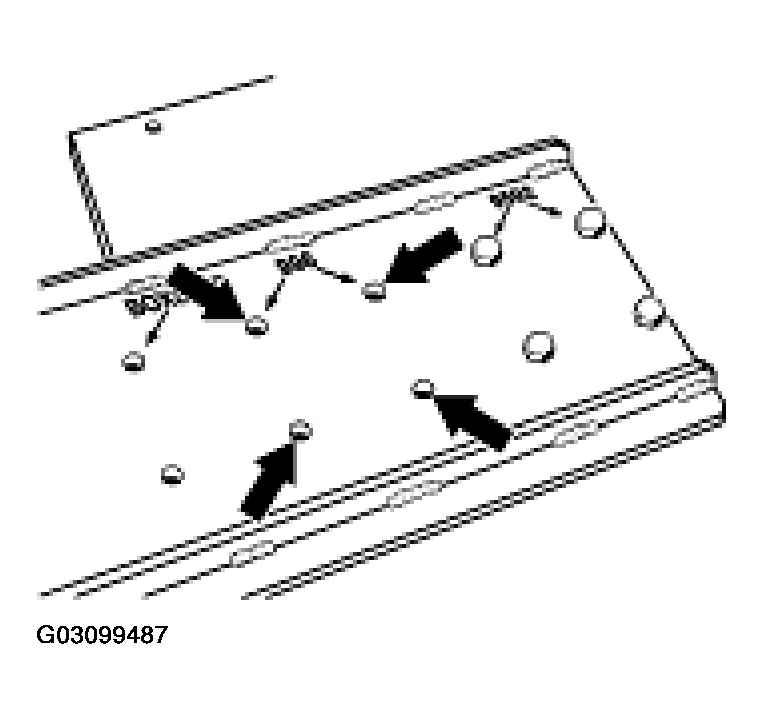

    Fig 2: Identifying Designated Bores
    G03099487Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Drill through the countersunk points on the retainer plate (-arrows-  ) with a steel drill bit sized 6.8 mm and then cut an M8 thread. During removal of the engine, fit the retainer plate 9592 on the take-up points on the underside of the engine.

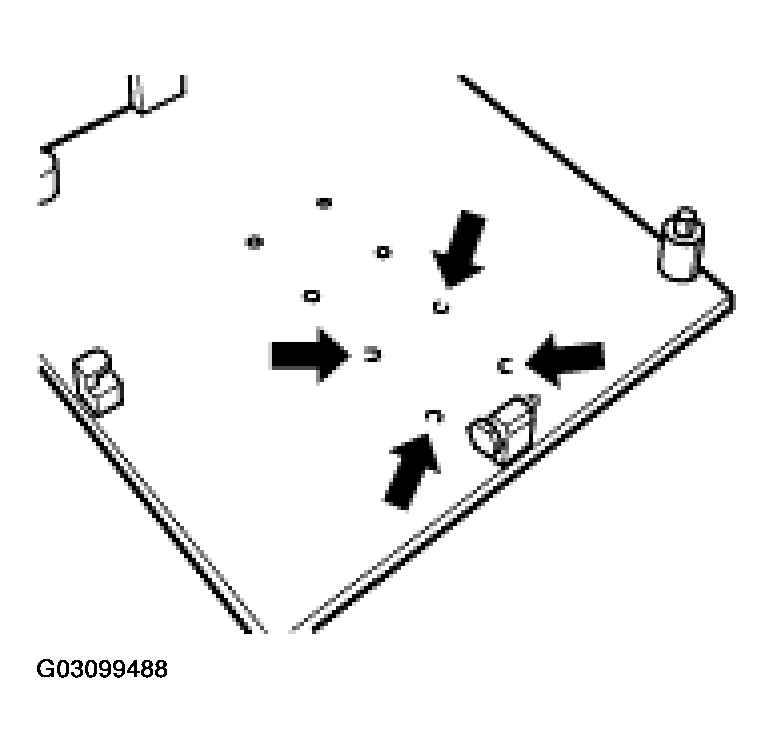

    Fig 3: Identifying Countersunk Points
    G03099488Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Fit the support cylinder for the manual transmission -C1-  on to the support plate 9592/1 with 1 hexagon-head bolt M8x16.

    Retainer and support plate for manual transmission

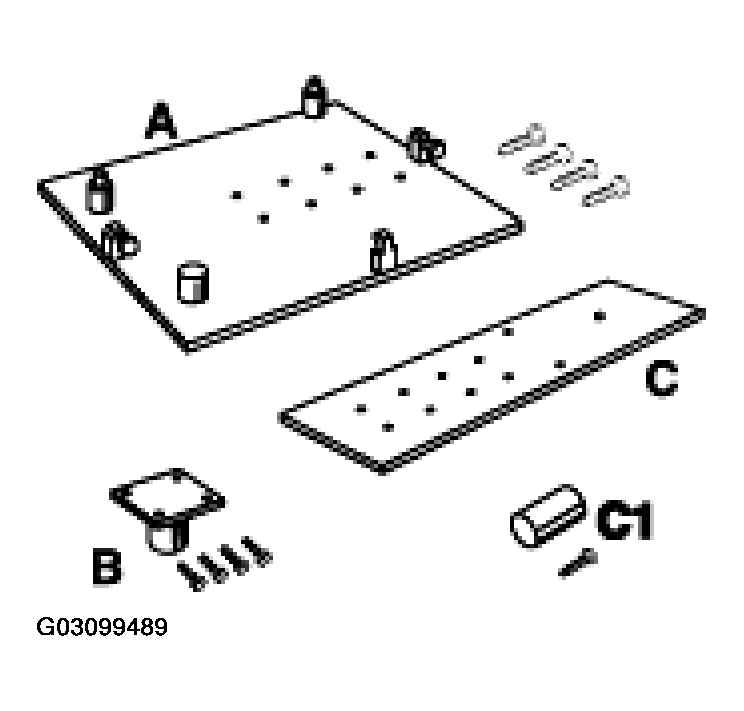

    Fig 4: Identifying Retainer And Support Plate Of Manual Transmission
    G03099489Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Screw special tool adapter 9163/2 to the retainer plate with 4 hexagon-head bolts M8x25 (screw size 10.9) in the designated position -996-  on the support plate. Screw the support plate 9592/1 on the underside of the retainer plate 9592 with 4 hexagon-head bolts M8x20 (screw size 8.8) in the position designated -9592-  .

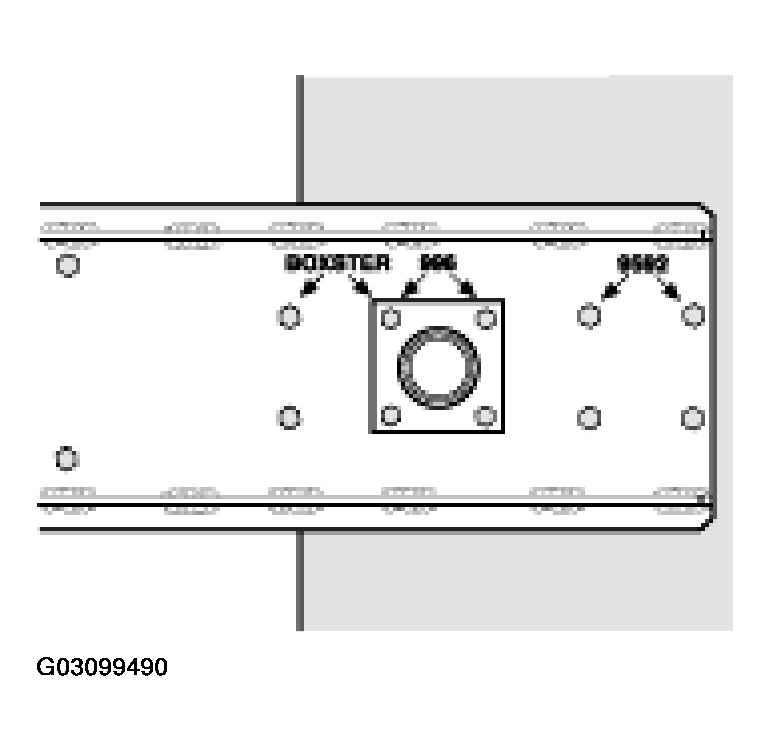

    Fig 5: Identifying Hexagon-Head Bolts M8X25
    G03099490Courtesy of PORSCHE OF NORTH AMERICA, INC.

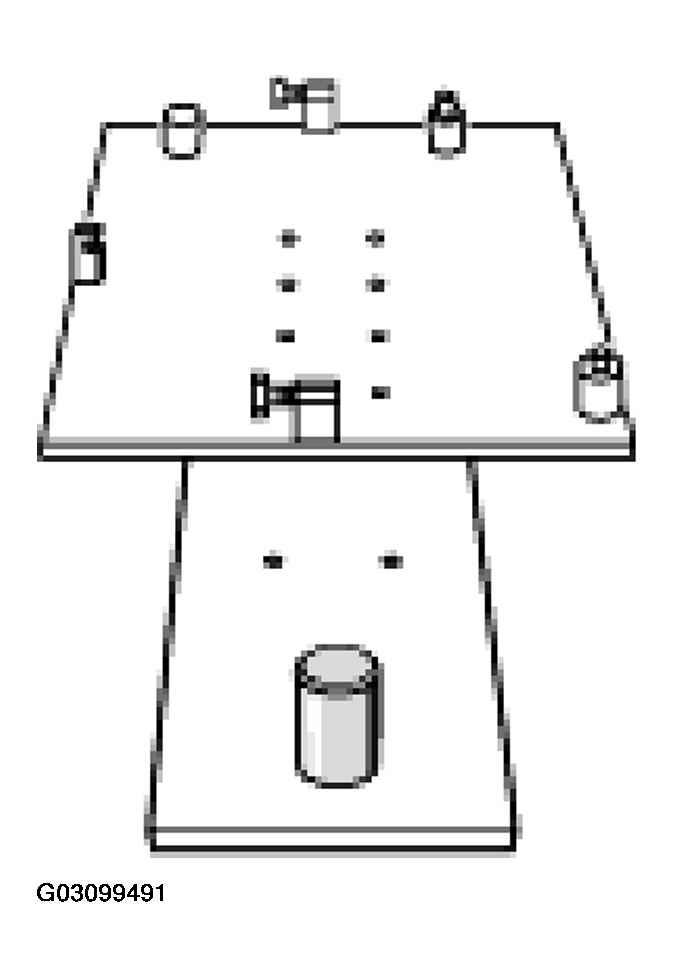

    The drawing shows the completely pre-assembled assembly plate for the removal and installation of the engine with manual transmission.

    Fig 6: Identifying Assembly Plate
    G03099491Courtesy of PORSCHE OF NORTH AMERICA, INC.
