Adjusting tools, Tiptronic transmission

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If the special tool retainer plate 9592 is being used for the first time, 4 additional threaded bores must be integrated.
  1. Lay the support plate 9592/1 on the reverse side of the retainer plate 9592 and screw into place at the 4 threaded bores provided using 4 hexagon-head bolts M8x25.

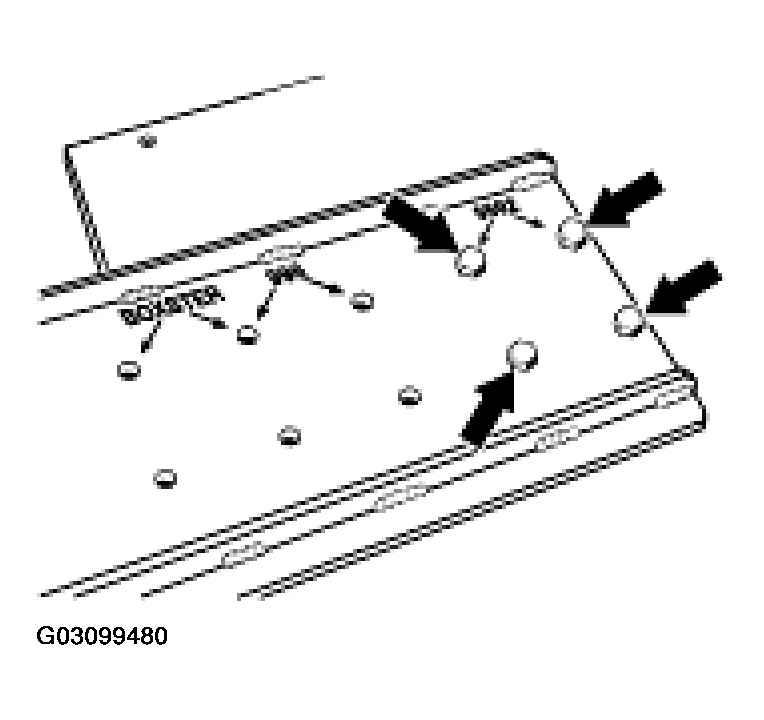

    Fig 1: Identifying Hexagon-Head Bolts M8X25
    G03099480Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Countersink the retainer plate at the designated bores for 996 (-arrows-  ) with a 9 mm drill bit. The support plate serves as the drilling template. Then unscrew the 4 screws again and lay the support plate to one side.

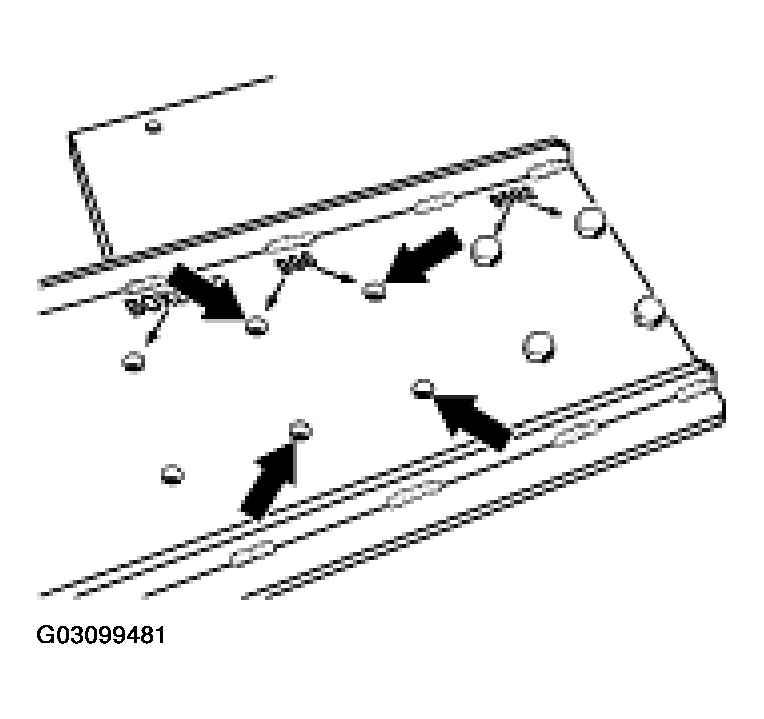

    Fig 2: Locating Bores
    G03099481Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Drill through the countersunk points on the retainer plate (-arrows-  ) with a steel drill bit sized 6.8 mm and then cut an M8 thread. During removal of the engine, fit the retainer plate 9592 on the take-up points on the underside of the engine.

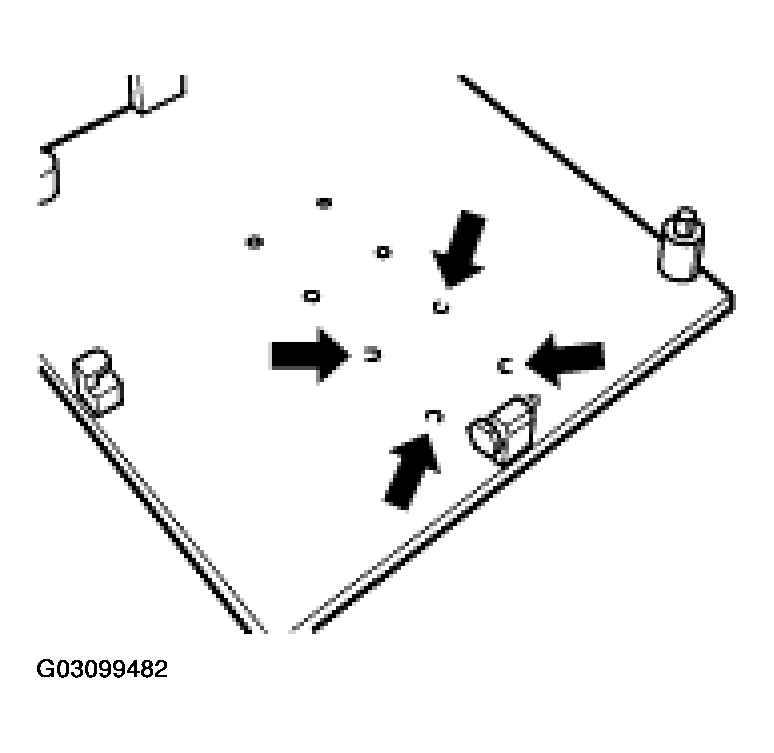

    Fig 3: Identifying Countersink Points On Retainer Plate
    G03099482Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Fit the support for the Tiptronic transmission -C1-  (and if necessary the spacer plate for the tolerance compensation -C2-  ) with 3 wooden screws (2 screws 6x20 and 1 screw 8x25) to the support plate 9592/1.

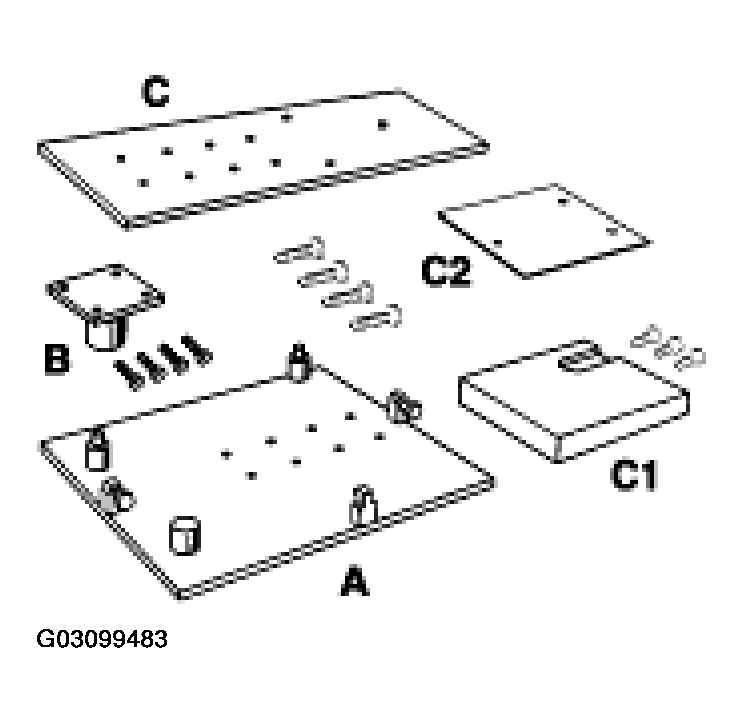

    Fig 4: Identifying Retainer And Support Plate
    G03099483Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Screw special tool adapter 9163/2 to the retainer plate with 4 hexagon-head bolts M8x25 (screw size 10.9) in the designated position -996-  on the support plate. Screw the support plate 9592/1 on the underside of the retainer plate 9592 with 4 hexagon-head bolts M8x20 (screw size 8.8) in the position designated -9592-  .

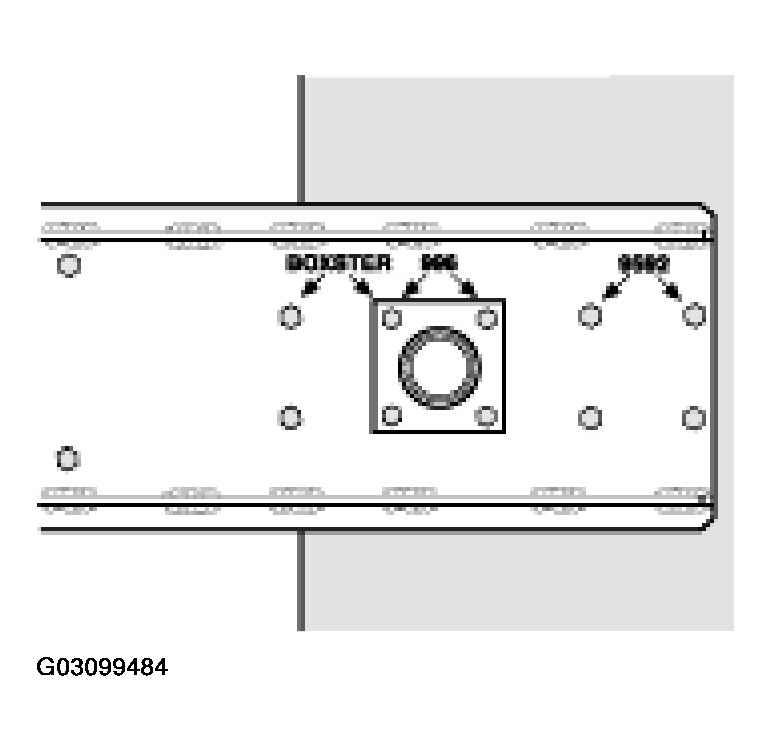

    Fig 5: Identifying Hexagon-Head Bolts M8X25
    G03099484Courtesy of PORSCHE OF NORTH AMERICA, INC.

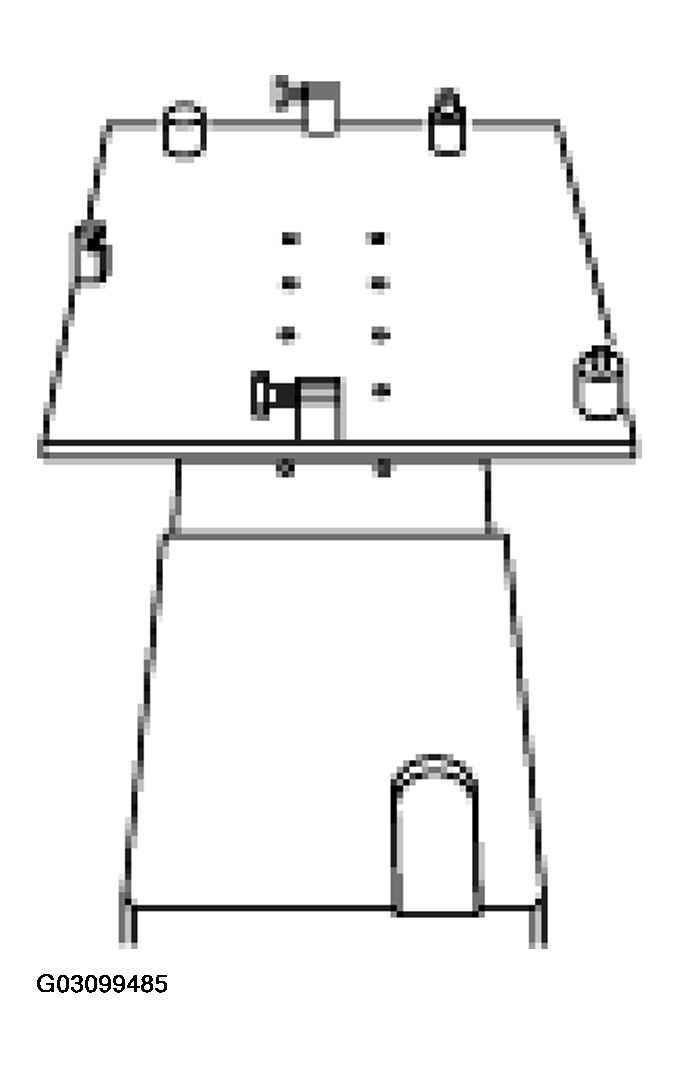

    The drawing shows the completely pre-assembled assembly plate for the removal and installation of the engine with Tiptronic transmission.

    Fig 6: Identifying Assembly Plate
    G03099485Courtesy of PORSCHE OF NORTH AMERICA, INC.
