Applying the sealant on the sealing surface of the cylinder head cover

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

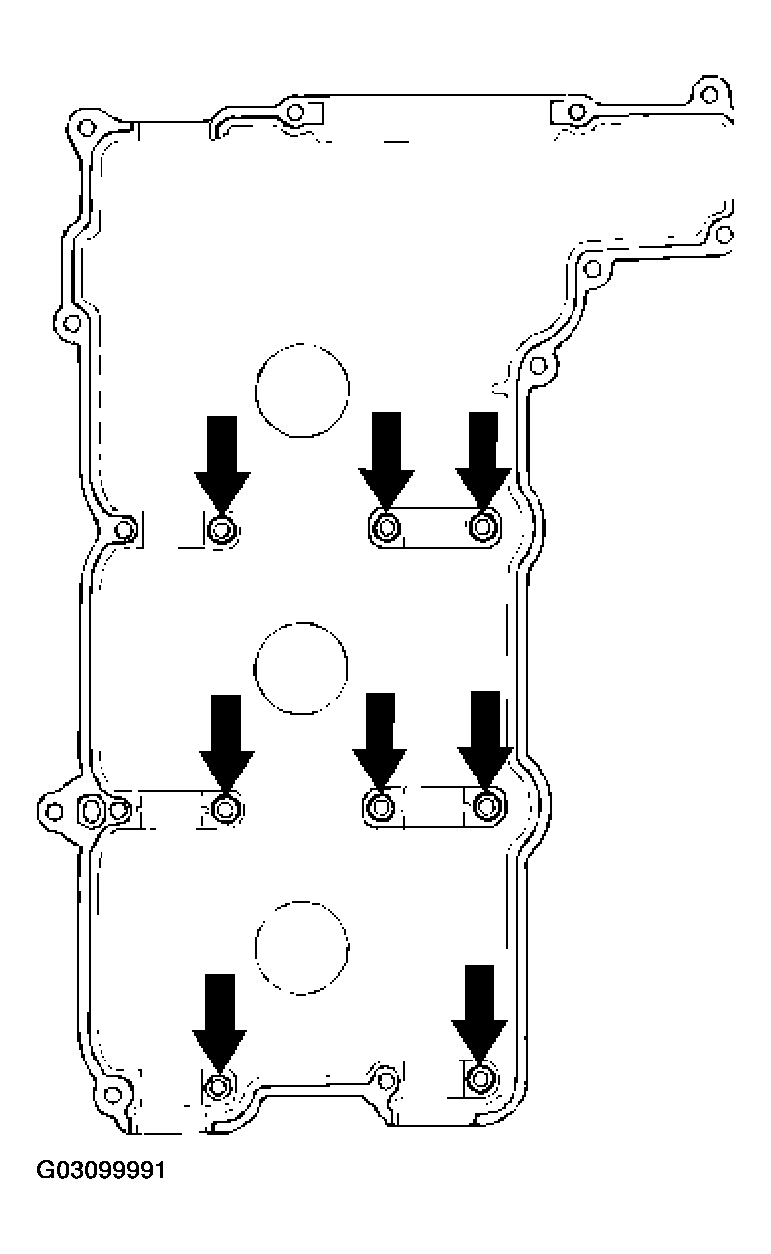

Fig 1: Applying Sealant On Sealing Surface Of Cylinder Head Cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

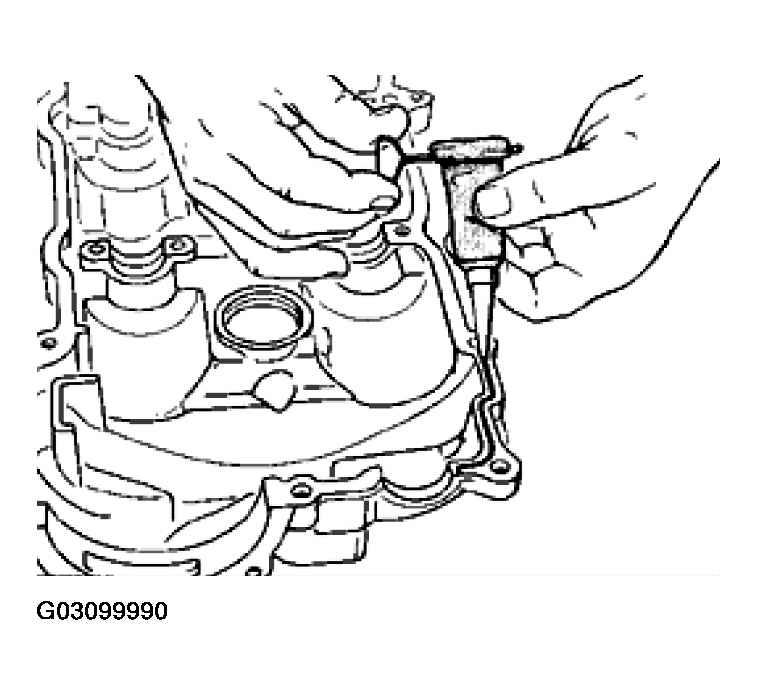

Apply bead of sealant in the bearing saddle area.

Fig 2: Applying Bead Of Sealant In Bearing Saddle Area

Courtesy of PORSCHE OF NORTH AMERICA, INC.
