Application of silicone bead

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

At the processing nozzle, cut off the first metering step. Apply a uniform bead approximately 1.5 mm wide to the cleaned sealing surface of the cylinder head cover.

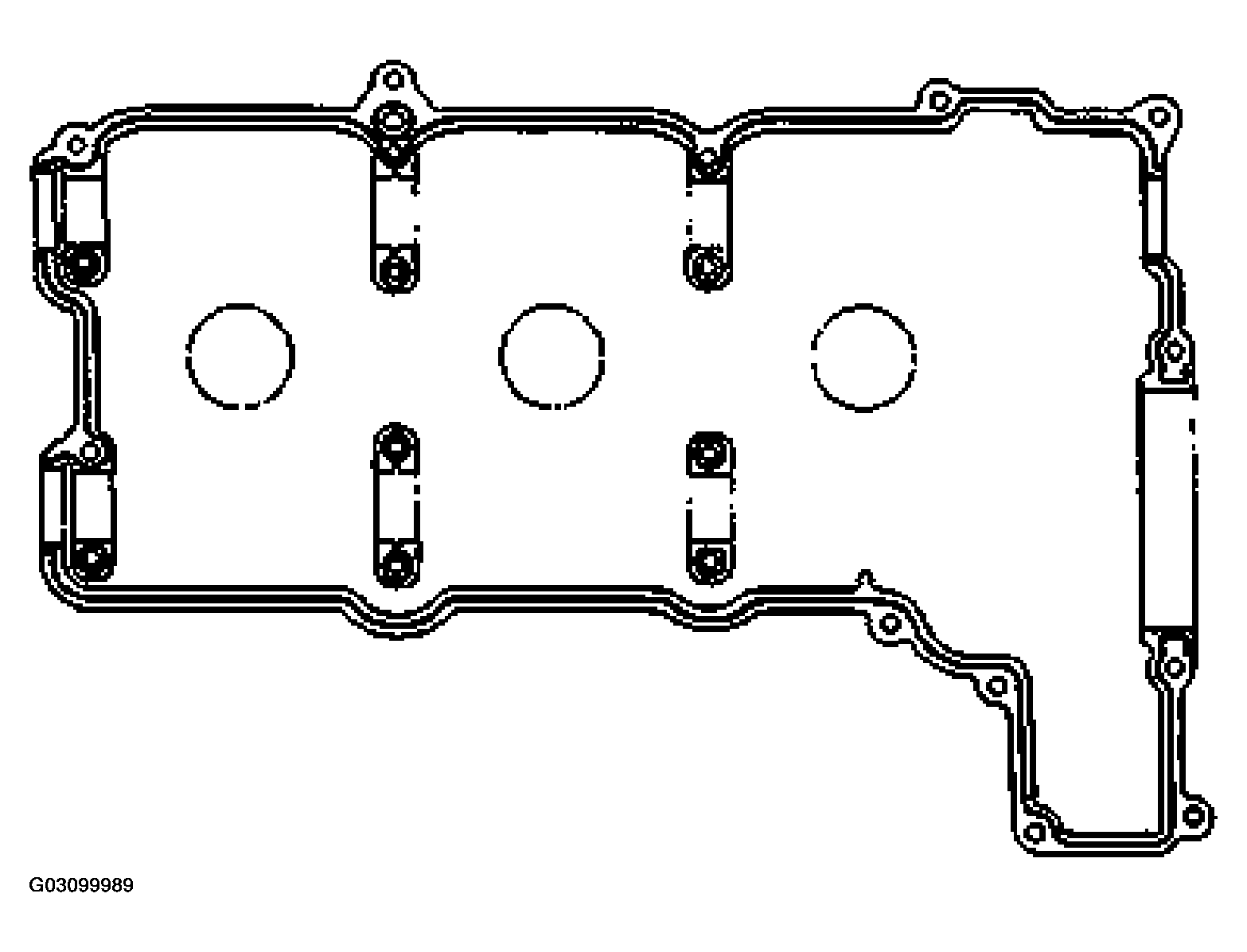

Fig 1: Identifying Silicone Bead Placement On Cylinder Head Cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.
