Removing and installing valve tappets - Engine removed: Tools
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

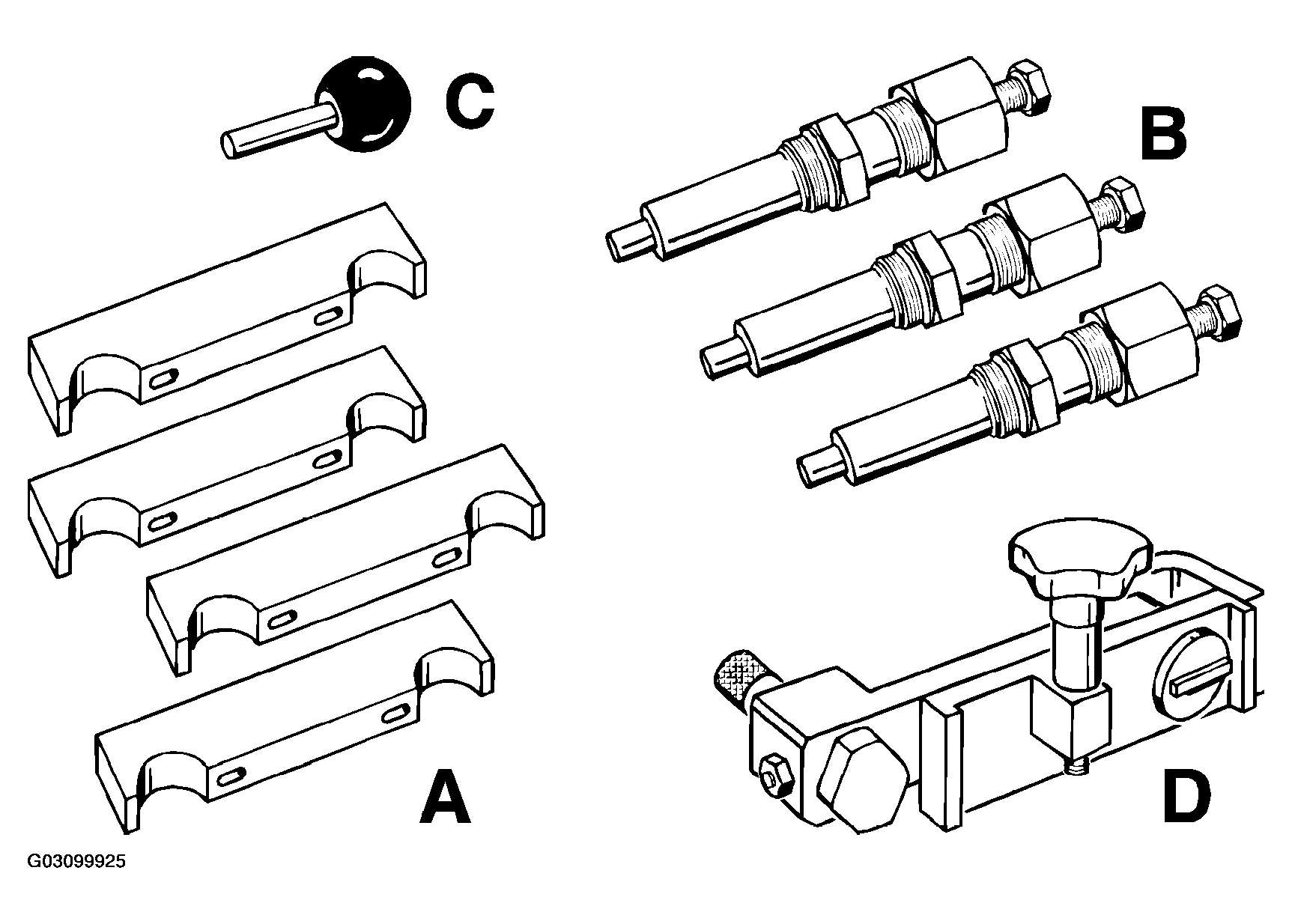

SPECIAL TOOL DESIGNATION - VALVE TAPPETS
| Item | Designation | Special tool | Explanation |
|---|---|---|---|
| A | Holding-down device for camshafts | 9611 | 1 set = 4 ea. |
| B | Auxiliary chain tensioner for valve timing adjustment | 9599 | 1 set = 3 ea. |
| C | Fixing pin for belt pulley | 9595 | 1 set = 2 ea. (use short fixing pin) |
| D | Locking device for camshafts in timing position | 9612 |
