Move camshafts and crankshaft to basic position

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Turn crankshaft clockwise until the bore 1 OT (top dead center) in the belt pulley is aligned with the fixing bore on the crankcase. Position or fix with fixing pin (short) of special tool 9595.

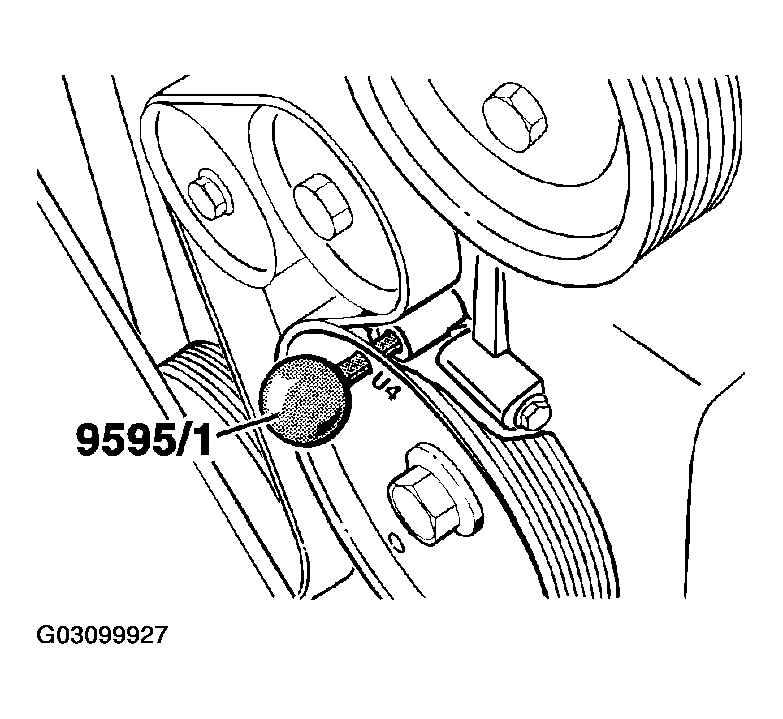

Fig 1: Aligning Belt Pulley Bore 1 OT With Fixing Bore On The Crankcase
Courtesy of PORSCHE OF NORTH AMERICA, INC.

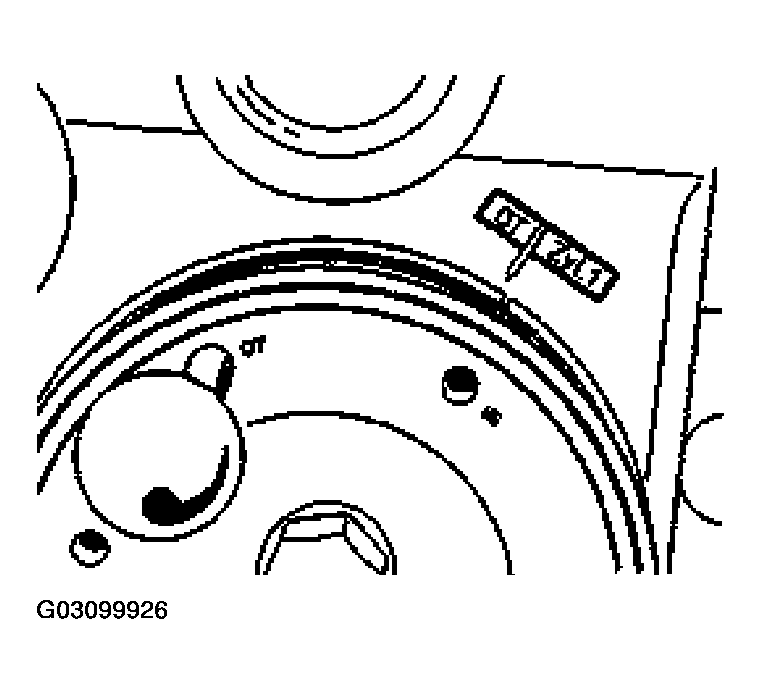

Fig 2: Identifying Special Tool 9595
Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: The basic camshaft setting can be checked only after removal of the camshaft closure caps.
Remove camshaft closure caps above the cylinder head oil extraction pumps. The closure cap of cylinder bank 1 - 3 is located on the flywheel side and the closure cap of cylinder bank 4 - 6 is located on the pulley side. Drive awl into center of the closure cap and lever off the cap.

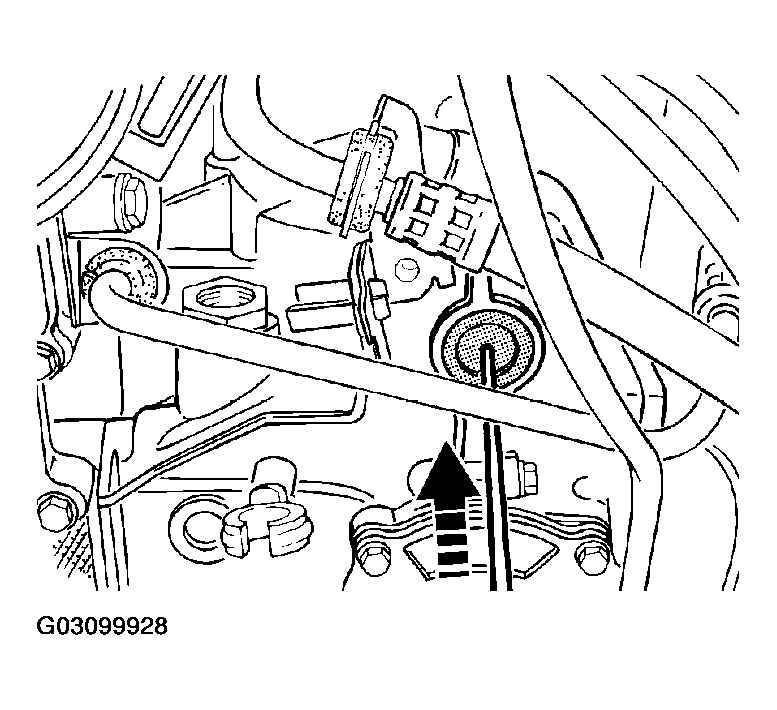

Fig 3: Identifying Closure Cap Of Cylinder Bank 4-6 (Pulley Side)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Check basic camshaft adjustment.
