Basic camshaft adjustment of cylinder bank 4 - 6

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

For adjustment, the groove in the camshaft must face inward toward the crankcase.

View from the belt pulley side

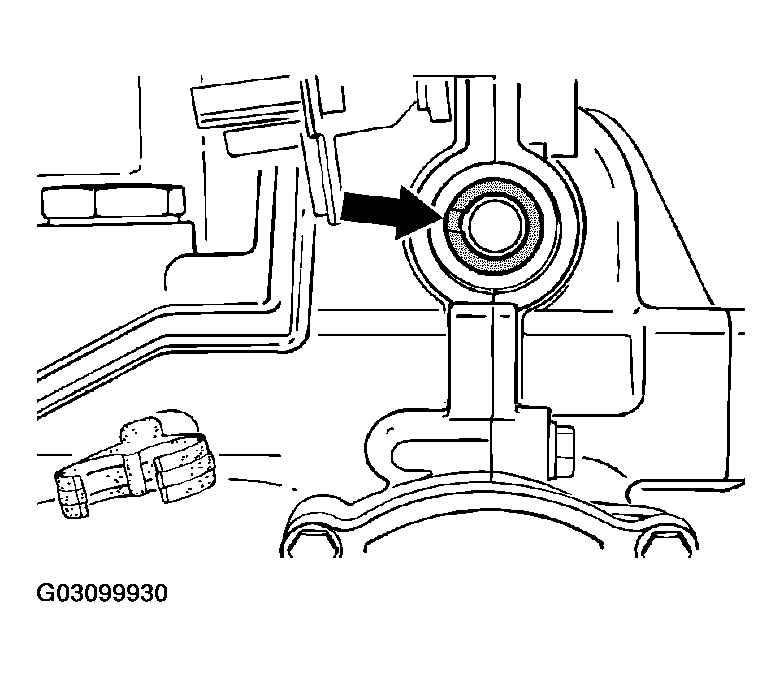

Fig 1: Identifying Groove In Camshaft - Cylinder Bank 4-6
G03099930Courtesy of PORSCHE OF NORTH AMERICA, INC.

If the position of the camshafts is incorrect, remove fixing pin at the pulley and rotate the crankshaft 360° clockwise.
