Removing and installing valve tappets - Engine installed: Tools
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

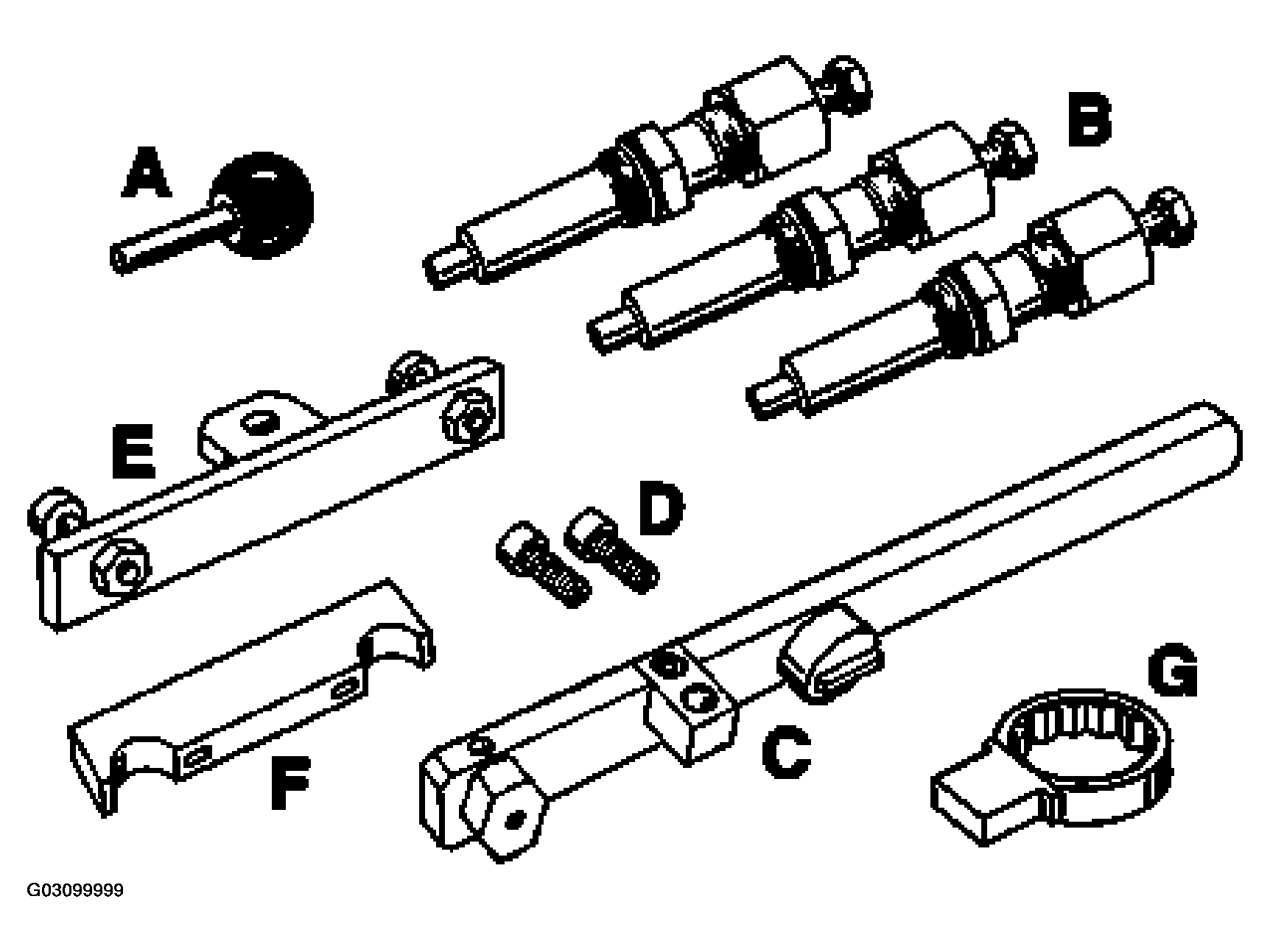

SPECIAL TOOL DESIGNATION - VALVE TAPPETS
| Item | Designation | Special tool | Explanation |
|---|---|---|---|
| A | Fixing pin for belt pulley | 9595 or from 9595/1 | 1 set = 2 ea. (use short fixing pin) |
| B | Auxiliary chain tensioner for valve timing adjustment | 9599 | 1 set = 3 ea. |
| C | Adjustment device | 9612/9 | Only used with engine installed |
| D | Screws for holding-down device | 9634/5 | Only used with engine installed |
| E | Holding-down device for camshafts | 9634 | |
| F | Holding-down device for camshafts | 9611 | 1 set = 4 ea. |
| G | Ring wrench (32 mm) | For applying auxiliary chain tensioner to cylinder bank 4 - 6 |
