Removing and installing valve springs: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fasten assembly head to lever arm. Shift sliding sleeve accordingly and lay the valve collets in the assembly head. Lightly oil valve collets, valve stem end and valve spring seat.

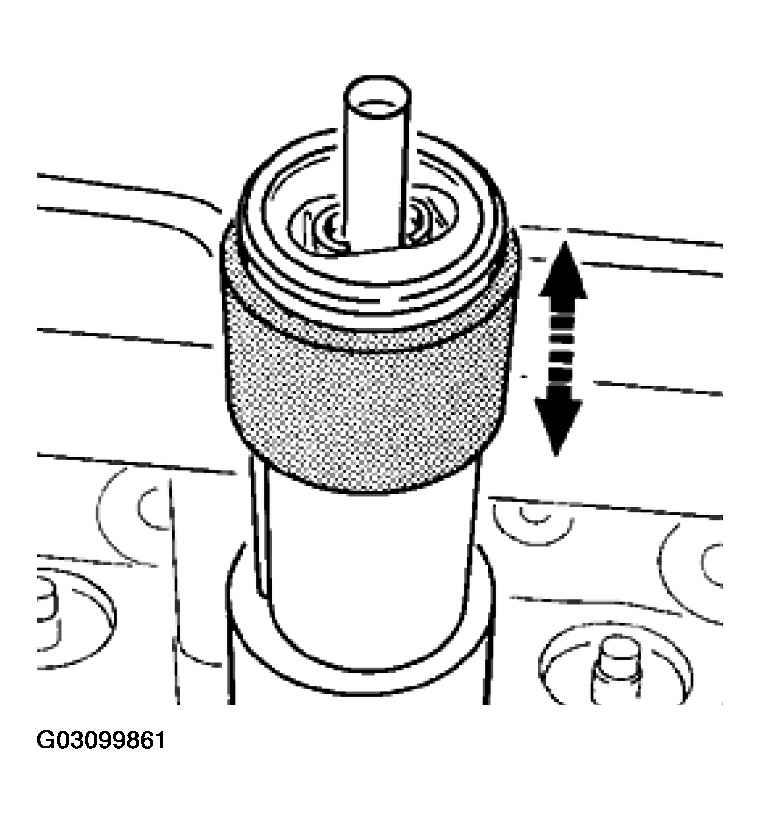

    Fig 1: Fastening Assembly Head To Lever Arm
    G03099861Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Insert valve spring support disc, valve spring and valve spring seat into cylinder head and press together with the assembly head. With slight pressure, allow valve collets to engage. The valve collets are then automatically positioned in the right place.
