Preliminary work: Removing and installing camshafts - engine removed: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fit new solenoid valve. Screw in threaded screws by hand. The thread cut when the screw was screwed in for the first time must be found again. Tightening torque 3.7 (+) 0.15 Nm (2.7 (+) 0.10 ftlb.)

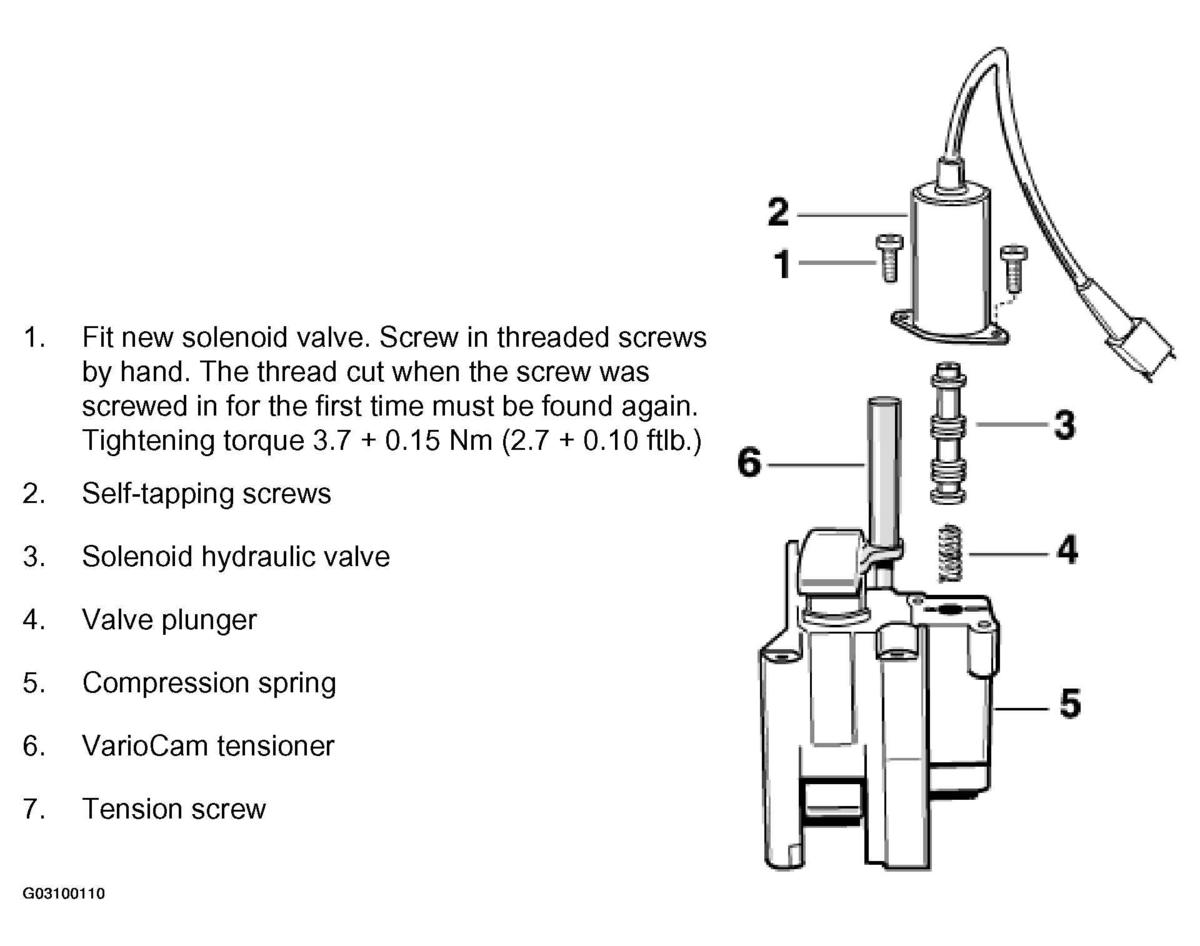

Fig 1: Installing Solenoid Valve Components
Courtesy of PORSCHE OF NORTH AMERICA, INC.
