Removing and installing sealing ring for intermediate shaft: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Engine installed (flywheel side)

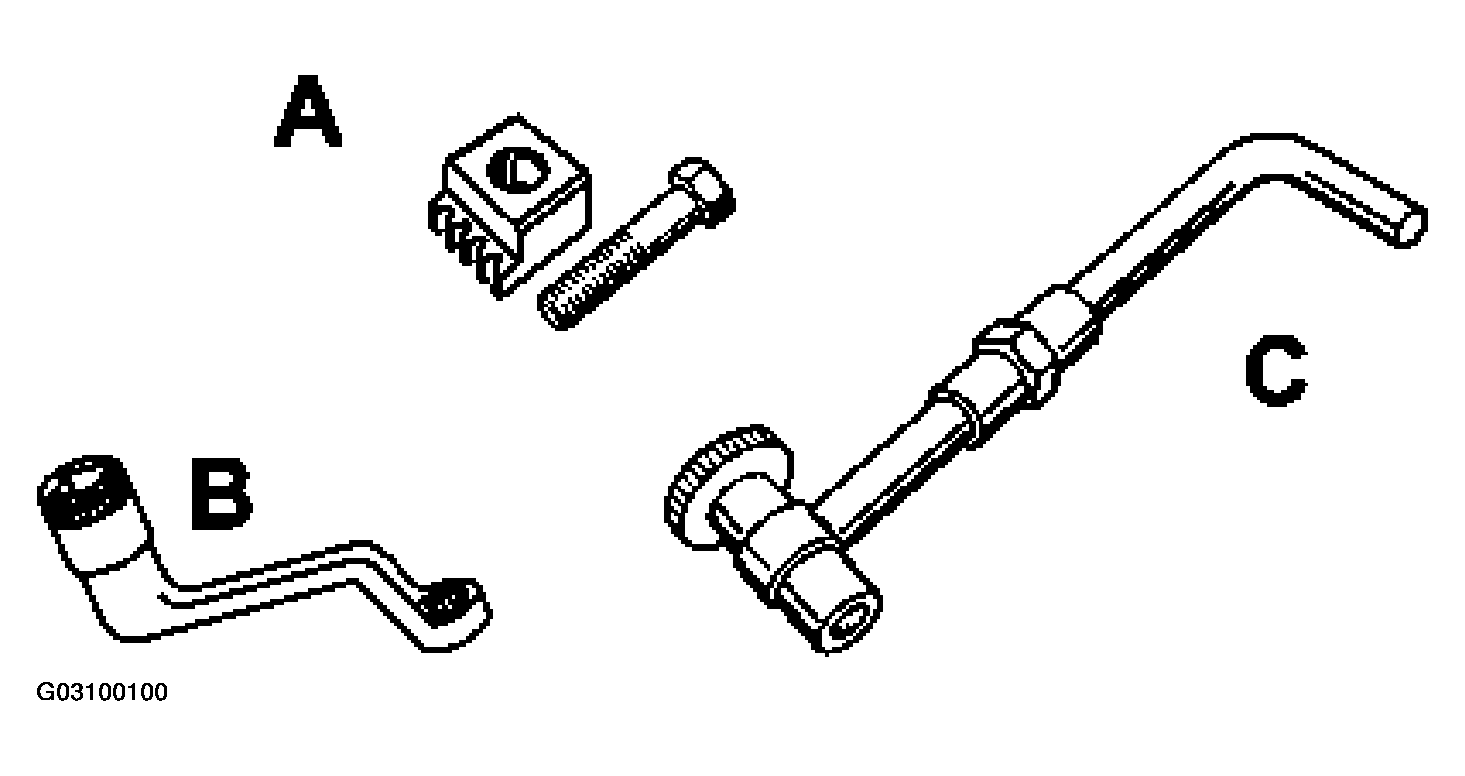

Fig 1: Identifying Special Tools - Sealing Ring For Intermediate Shaft

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOL DESIGNATION

Item	Special tool designation	Remarks
A
B		For unscrewing and tightening collar nut
C		Secures the intermediate shaft
