Removing and installing oil protection tubes - Engine removed: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Coat sealing rings with tyre mounting paste. Push tube onto pressure piece, special tool 9605. Place hand pressure piece, special tool 9604, onto the pressure piece.

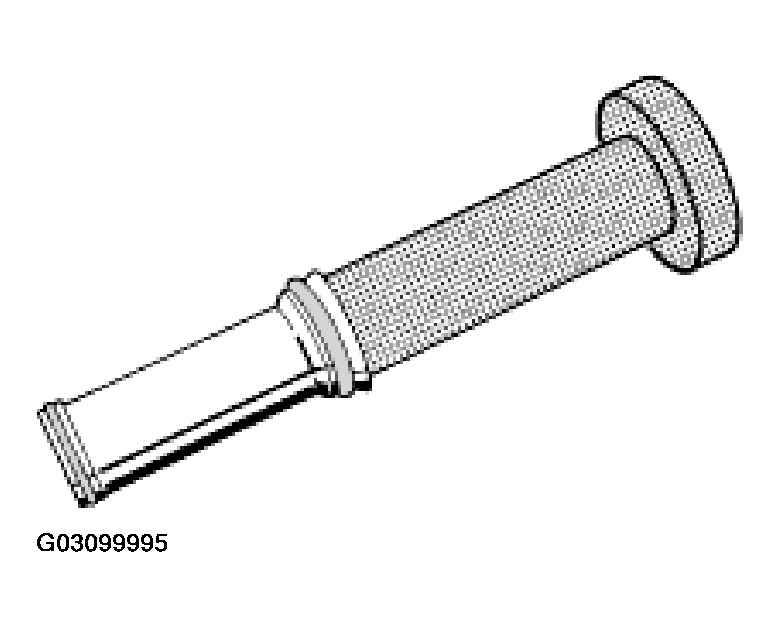

Fig 1: Identifying Hand Pressure Piece, Special Tool 9604
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Manually press the oil protection tube as far as it will go into the fitted cylinder head cover.

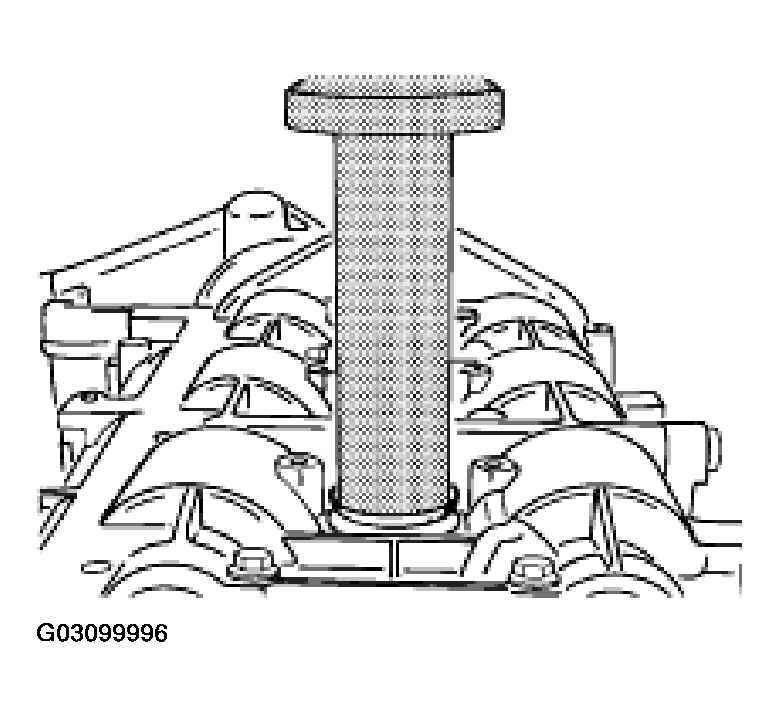

Fig 2: Pressing Oil Protection Tube As Far As It Will Go Into Fitted Cylinder Head Cover
Courtesy of PORSCHE OF NORTH AMERICA, INC.
