Removing and installing oil protection tubes - Engine installed: Tools: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

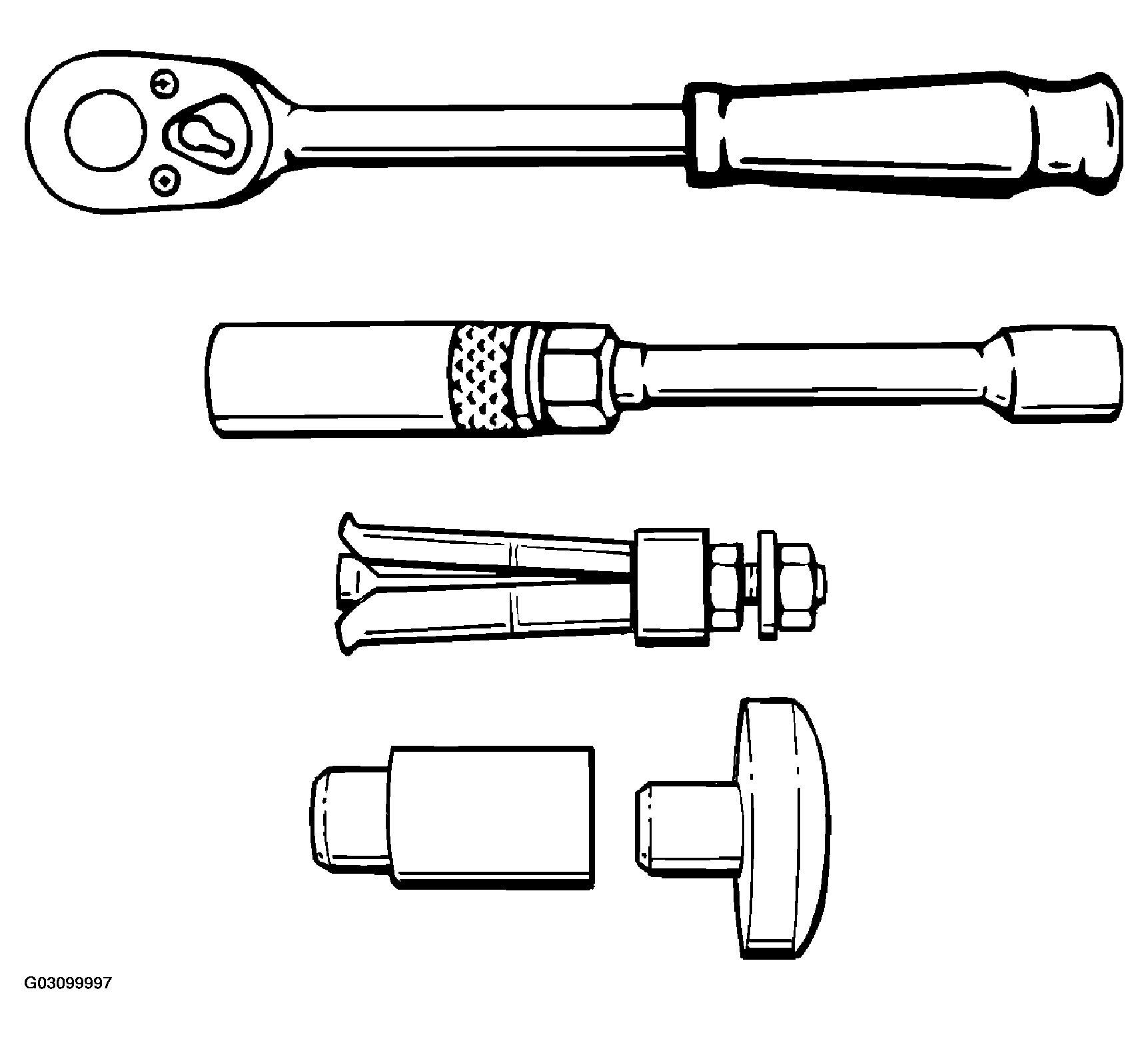

Fig 1: Identifying Special Tools - Oil Protection Tubes

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOL DESIGNATION - OIL PROTECTION TUBES

Item	Designation	Special tool
A	Spark-plug wrench	Commercially available
B	Internal puller 23.5 - 30 mm "PHI"	Commercially available
C	Hand pressure piece, for fitting the oil protection tubes	9604
D	Pressure piece, for fitting the oil protection tubes	9605/1

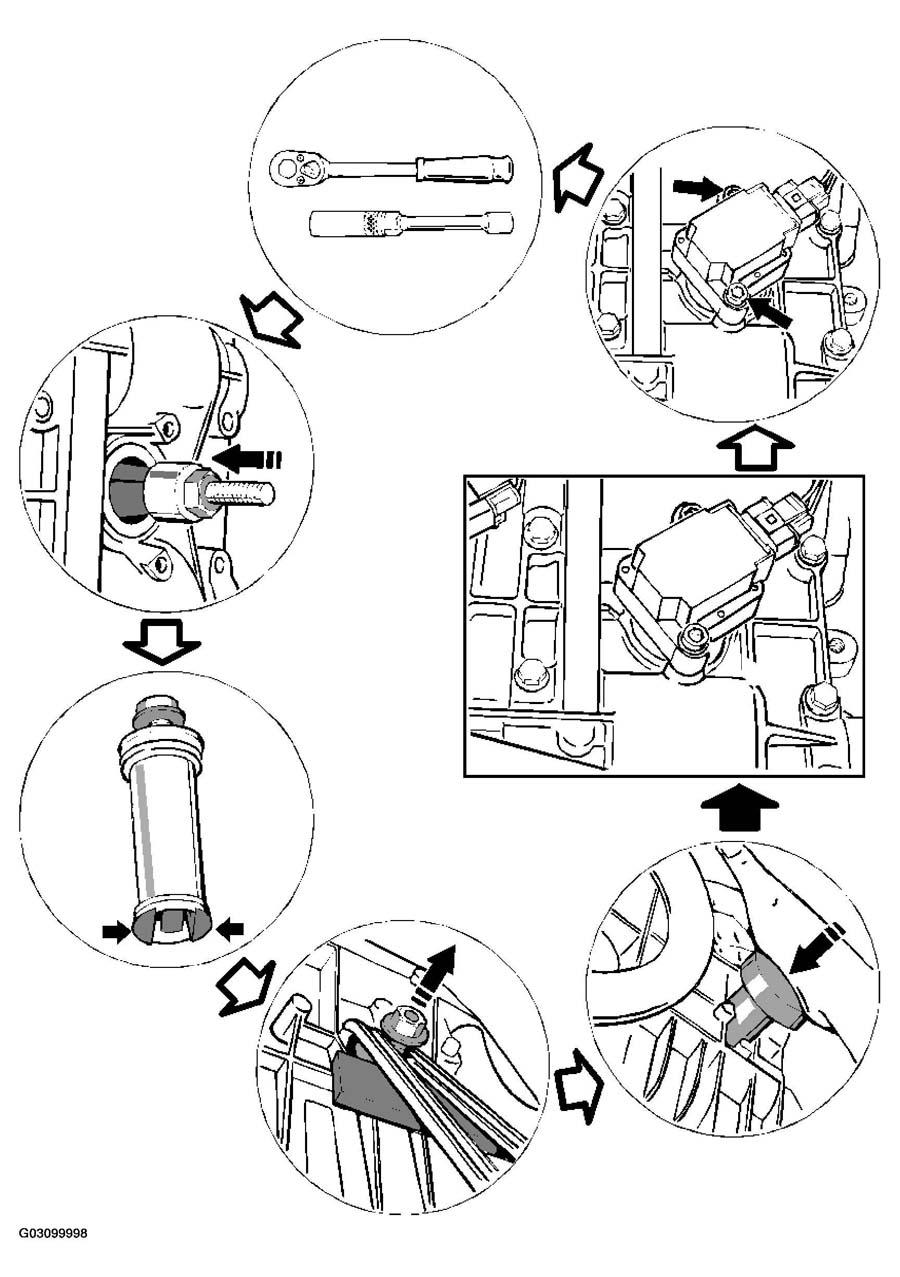

Fig 2: Removing And Installing Oil Protection Tubes

Courtesy of PORSCHE OF NORTH AMERICA, INC.
