Removing and installing oil pan - engine installed: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew cap of the oil filler opening.
Lift the vehicle. Drain engine oil.

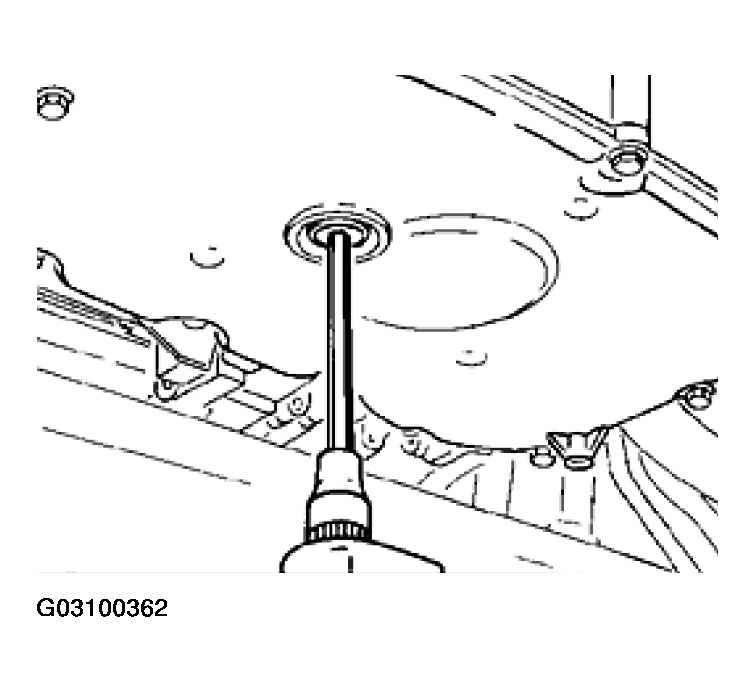

Fig 1: Draining Engine Oil
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Undo oil pan fastening screws. (M6 x 16, 13 ea.). Detach oil pan by tapping it at the sides with a plastic hammer.

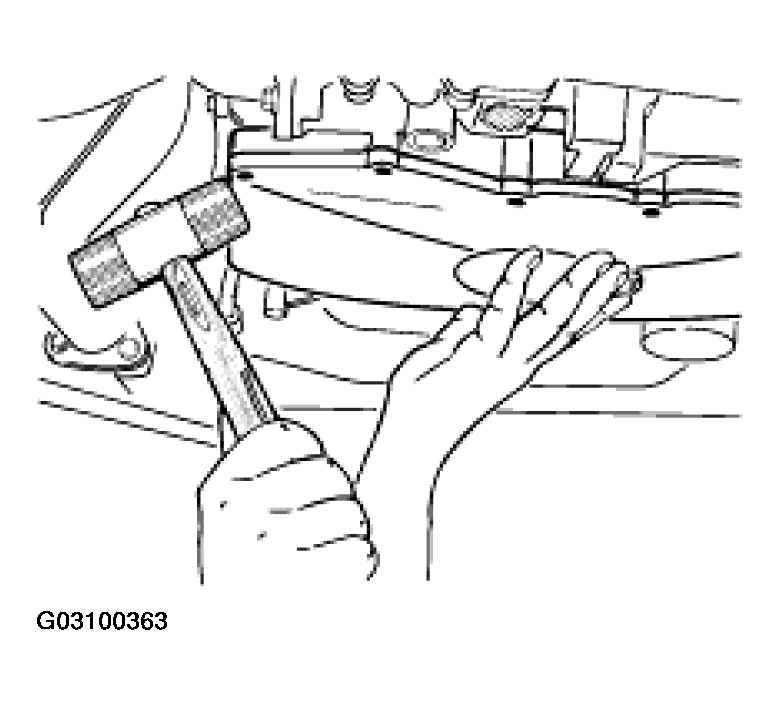

Fig 2: Removing Oil Pan
Courtesy of PORSCHE OF NORTH AMERICA, INC.

3.1 If the oil pan has a leverage bar, lever the oil pan off using a plastic-coated mounting lever.

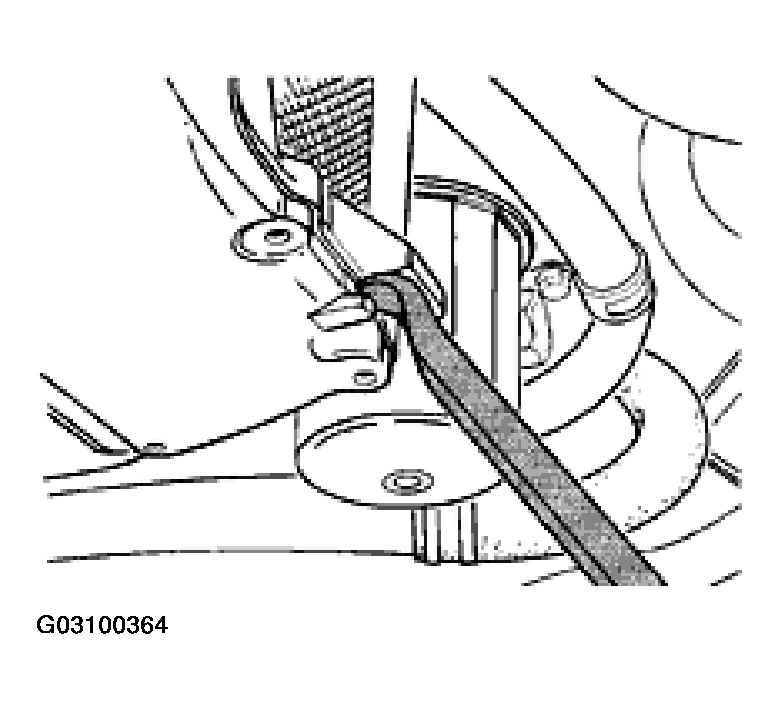

Fig 3: Prying Off Oil Pan Using A Plastic-Coated Mounting Lever
Courtesy of PORSCHE OF NORTH AMERICA, INC.
